| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_073T04_9000006430_48502cztM0_level2.fits | modeM0/AS1A13_073T04_9000006430_48502cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,509,760 | 105,269,760 |
| Size | 412.5 MB | 100.4 MB |
| Events in quadrant A | 6,928,297 | 673,157 |
| Events in quadrant B | 2,871,567 | 720,220 |
| Events in quadrant C | 2,765,896 | 698,218 |
| Events in quadrant D | 2,929,908 | 633,687 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25169 | 2 |
| B | 0 | 13549 | 2 |
| C | 0 | 13504 | 2 |
| D | 0 | 13923 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6624 | 247 | 3.728865% |
| B | 6624 | 36 | 0.543478% |
| C | 6625 | 13 | 0.196226% |
| D | 6624 | 35 | 0.528382% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8578 | 6624 | 131 | 131 | 1.53% | 1.98% |  |
| B | 8578 | 6623 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8579 | 6624 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8578 | 6623 | 18 | 18 | 0.21% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4004805 | 27844.61 | 689 | 672 | 143.8 |
| A | 12 | 189 | 244015 | 1692.2 | 689 | 672 | 143.8 |
| A | 13 | 254 | 14673 | 97.36 | 689 | 672 | 143.8 |
| B | 15 | 52 | 32179 | 226.12 | 701 | 678 | 139.3 |
| B | 12 | 16 | 22368 | 155.69 | 701 | 678 | 139.3 |
| B | 12 | 111 | 17784 | 122.79 | 701 | 678 | 139.3 |
| C | 14 | 67 | 19584 | 114.41 | 696 | 699 | 165.1 |
| C | 11 | 16 | 9988 | 56.28 | 696 | 699 | 165.1 |
| C | 12 | 249 | 8669 | 48.29 | 696 | 699 | 165.1 |
| D | 2 | 249 | 124549 | 715.32 | 688 | 666 | 173.2 |
| D | 10 | 199 | 59505 | 339.74 | 688 | 666 | 173.2 |
| D | 5 | 171 | 42826 | 243.44 | 688 | 666 | 173.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

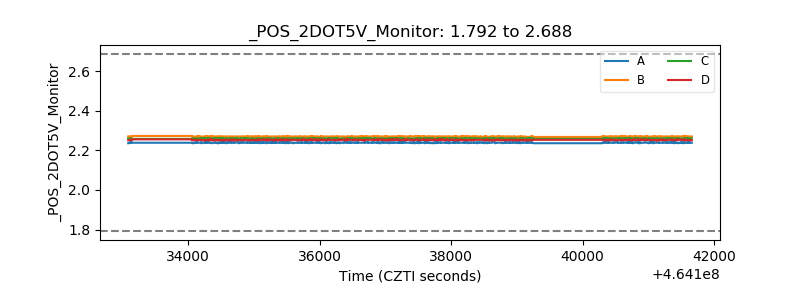

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
