| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006432_48513cztM0_level2.fits | modeM0/AS1A13_037T01_9000006432_48513cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,362,453,120 | 291,792,960 |
| Size | 1.3 GB | 278.3 MB |
| Events in quadrant A | 19,471,323 | 1,922,603 |
| Events in quadrant B | 9,760,033 | 1,988,593 |
| Events in quadrant C | 8,119,147 | 1,942,661 |
| Events in quadrant D | 11,598,583 | 1,657,240 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72280 | 2 |
| B | 0 | 43057 | 3 |
| C | 0 | 39399 | 2 |
| D | 0 | 49385 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 388 | 0 |
| B | 0 | 388 | 0 |
| C | 0 | 388 | 0 |
| D | 0 | 388 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19207 | 725 | 3.774665% |
| B | 19207 | 575 | 2.993700% |
| C | 19207 | 133 | 0.692456% |
| D | 19207 | 1054 | 5.487583% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20162 | 19209 | 31 | 31 | 0.15% | 0.16% |  |
| B | 20162 | 19209 | 187 | 187 | 0.93% | 0.97% |  |
| C | 20162 | 19209 | 2 | 2 | 0.01% | 0.01% |  |
| D | 20162 | 19209 | 776 | 776 | 3.85% | 4.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10934730 | 25374.6 | 2066 | 2015 | 430.9 |
| A | 12 | 189 | 463471 | 1071.03 | 2066 | 2015 | 430.9 |
| A | 13 | 254 | 36819 | 80.78 | 2066 | 2015 | 430.9 |
| B | 12 | 16 | 683685 | 1663.51 | 2062 | 1996 | 409.8 |
| B | 5 | 255 | 582981 | 1417.76 | 2062 | 1996 | 409.8 |
| B | 0 | 186 | 189029 | 456.41 | 2062 | 1996 | 409.8 |
| C | 14 | 67 | 28142 | 53.44 | 2059 | 2066 | 488.0 |
| C | 3 | 233 | 28108 | 53.37 | 2059 | 2066 | 488.0 |
| C | 12 | 250 | 25550 | 48.12 | 2059 | 2066 | 488.0 |
| D | 2 | 165 | 3269199 | 6481.42 | 2016 | 1951 | 504.1 |
| D | 2 | 249 | 278758 | 549.12 | 2016 | 1951 | 504.1 |
| D | 2 | 234 | 99250 | 193.02 | 2016 | 1951 | 504.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

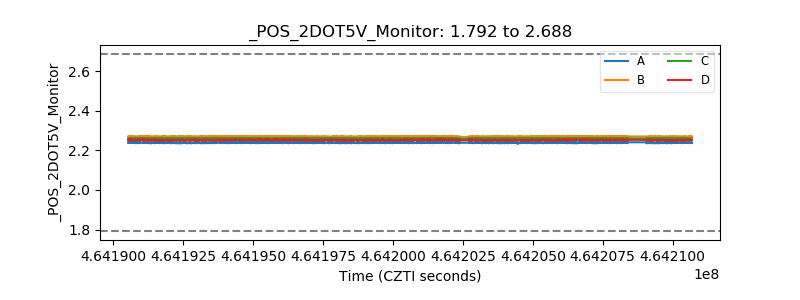

| +2.5 Volts monitor |  |

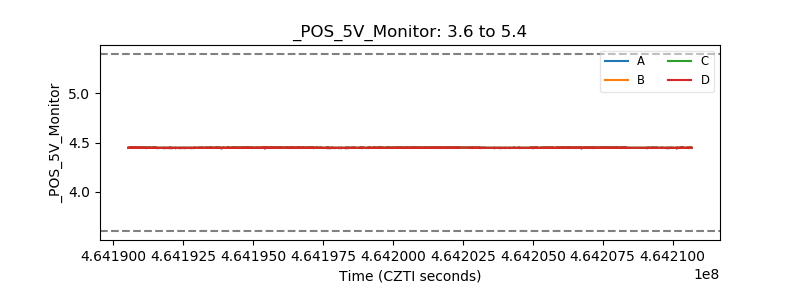

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
