| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006434_48519cztM0_level2.fits | modeM0/AS1A13_037T05_9000006434_48519cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,388,800 | 104,160,960 |
| Size | 412.4 MB | 99.3 MB |
| Events in quadrant A | 6,837,898 | 667,174 |
| Events in quadrant B | 3,047,290 | 720,298 |
| Events in quadrant C | 2,734,315 | 693,180 |
| Events in quadrant D | 2,886,278 | 624,546 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24918 | 159 |
| B | 0 | 13795 | 46 |
| C | 0 | 13181 | 72 |
| D | 0 | 13787 | 60 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 1 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 2 |
| B | 0 | 134 | 2 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6420 | 309 | 4.813084% |
| B | 6444 | 85 | 1.319056% |
| C | 6432 | 19 | 0.295398% |
| D | 6437 | 49 | 0.761224% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8832 | 6464 | 96 | 96 | 1.09% | 1.49% |  |
| B | 8832 | 6466 | 11 | 11 | 0.12% | 0.17% |  |
| C | 8833 | 6462 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8832 | 6466 | 27 | 27 | 0.31% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3937377 | 27463.32 | 694 | 679 | 143.3 |
| A | 13 | 248 | 129985 | 902.07 | 694 | 679 | 143.3 |
| A | 12 | 189 | 57940 | 399.47 | 694 | 679 | 143.3 |
| B | 5 | 255 | 140728 | 1014.37 | 708 | 684 | 138.1 |
| B | 0 | 186 | 83159 | 597.38 | 708 | 684 | 138.1 |
| B | 12 | 16 | 17893 | 124.65 | 708 | 684 | 138.1 |
| C | 3 | 233 | 9752 | 54.74 | 696 | 699 | 165.4 |
| C | 14 | 254 | 8417 | 46.67 | 696 | 699 | 165.4 |
| C | 13 | 61 | 4604 | 23.61 | 696 | 699 | 165.4 |
| D | 2 | 249 | 222446 | 1292.57 | 685 | 664 | 171.6 |
| D | 2 | 234 | 26467 | 150.38 | 685 | 664 | 171.6 |
| D | 2 | 165 | 23050 | 130.47 | 685 | 664 | 171.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

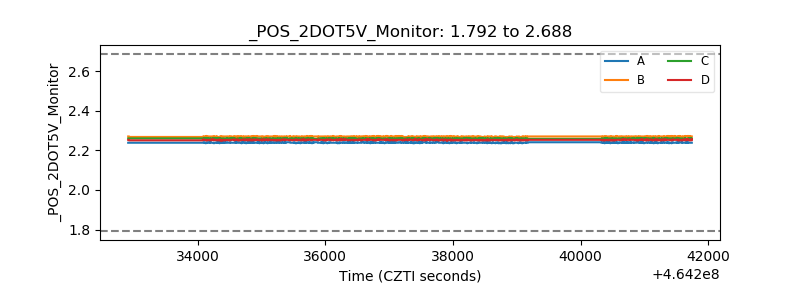

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
