| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006434_48520cztM0_level2.fits | modeM0/AS1A13_037T05_9000006434_48520cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,922,560 | 106,551,360 |
| Size | 475.8 MB | 101.6 MB |
| Events in quadrant A | 7,014,552 | 692,089 |
| Events in quadrant B | 3,100,686 | 743,942 |
| Events in quadrant C | 2,845,909 | 713,179 |
| Events in quadrant D | 4,987,669 | 610,115 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25707 | 7 |
| B | 0 | 14108 | 2 |
| C | 0 | 13632 | 2 |
| D | 0 | 19953 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6697 | 270 | 4.031656% |
| B | 6698 | 98 | 1.463123% |
| C | 6698 | 19 | 0.283667% |
| D | 6699 | 481 | 7.180176% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8958 | 6700 | 77 | 77 | 0.86% | 1.15% |  |
| B | 8958 | 6700 | 11 | 11 | 0.12% | 0.16% |  |
| C | 8958 | 6700 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8959 | 6701 | 493 | 493 | 5.50% | 7.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4138481 | 27537.84 | 724 | 707 | 150.3 |
| A | 12 | 189 | 42587 | 278.72 | 724 | 707 | 150.3 |
| A | 13 | 248 | 15047 | 95.44 | 724 | 707 | 150.3 |
| B | 0 | 186 | 89609 | 620.31 | 736 | 712 | 143.3 |
| B | 5 | 255 | 52648 | 362.4 | 736 | 712 | 143.3 |
| B | 12 | 16 | 30740 | 209.53 | 736 | 712 | 143.3 |
| C | 14 | 67 | 15449 | 86.26 | 722 | 727 | 170.7 |
| C | 3 | 233 | 9641 | 52.23 | 722 | 727 | 170.7 |
| C | 14 | 254 | 8038 | 42.83 | 722 | 727 | 170.7 |
| D | 2 | 165 | 1988847 | 11346.75 | 697 | 674 | 175.2 |
| D | 2 | 249 | 267243 | 1521.34 | 697 | 674 | 175.2 |
| D | 13 | 171 | 53691 | 302.57 | 697 | 674 | 175.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

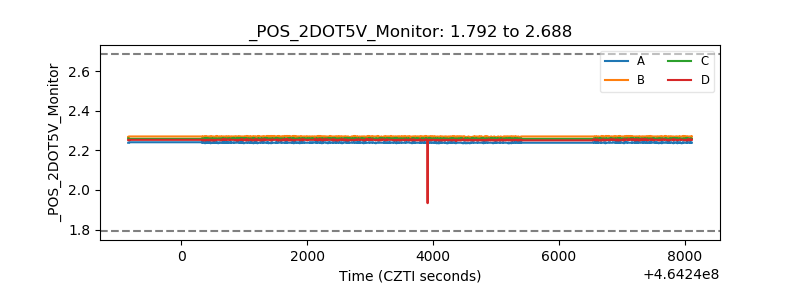

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
