| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006434_48523cztM0_level2.fits | modeM0/AS1A13_037T05_9000006434_48523cztM0_level2_quad_clean.evt |
| Size (bytes) | 662,172,480 | 121,789,440 |
| Size | 631.5 MB | 116.1 MB |
| Events in quadrant A | 8,009,291 | 817,635 |
| Events in quadrant B | 3,790,200 | 863,059 |
| Events in quadrant C | 3,502,341 | 832,418 |
| Events in quadrant D | 8,575,450 | 606,319 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29883 | 104 |
| B | 0 | 17369 | 68 |
| C | 0 | 16895 | 59 |
| D | 0 | 31513 | 75 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 2 |
| C | 0 | 166 | 2 |
| D | 0 | 166 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8171 | 372 | 4.552686% |
| B | 8176 | 210 | 2.568493% |
| C | 8182 | 113 | 1.381080% |
| D | 8178 | 1837 | 22.462705% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8598 | 8175 | 20 | 20 | 0.23% | 0.24% |  |
| B | 8601 | 8182 | 6 | 6 | 0.07% | 0.07% |  |
| C | 8598 | 8184 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8598 | 8181 | 1609 | 1609 | 18.71% | 19.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4372220 | 23308.07 | 890 | 869 | 187.5 |
| A | 12 | 189 | 150814 | 799.51 | 890 | 869 | 187.5 |
| A | 10 | 255 | 51153 | 268.11 | 890 | 869 | 187.5 |
| B | 12 | 16 | 88849 | 488.06 | 897 | 866 | 180.3 |
| B | 8 | 234 | 71270 | 390.55 | 897 | 866 | 180.3 |
| B | 5 | 255 | 45327 | 246.64 | 897 | 866 | 180.3 |
| C | 3 | 233 | 21996 | 100.62 | 889 | 890 | 209.8 |
| C | 14 | 254 | 6873 | 28.52 | 889 | 890 | 209.8 |
| C | 13 | 61 | 5941 | 24.08 | 889 | 890 | 209.8 |
| D | 2 | 165 | 5239496 | 25725.08 | 809 | 780 | 203.6 |
| D | 2 | 249 | 166409 | 813.33 | 809 | 780 | 203.6 |
| D | 12 | 233 | 41581 | 200.36 | 809 | 780 | 203.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

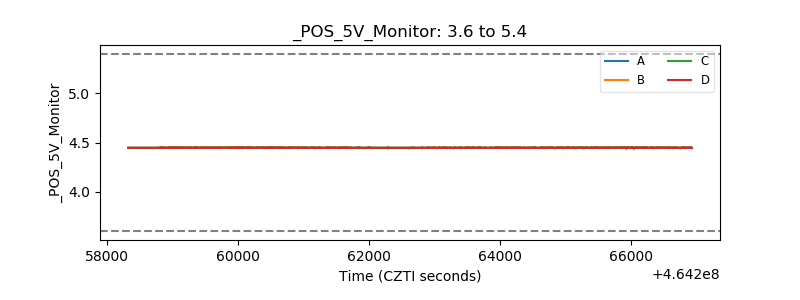

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
