| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006434_48528cztM0_level2.fits | modeM0/AS1A13_037T05_9000006434_48528cztM0_level2_quad_clean.evt |
| Size (bytes) | 154,667,520 | 32,209,920 |
| Size | 147.5 MB | 30.7 MB |
| Events in quadrant A | 2,274,771 | 213,960 |
| Events in quadrant B | 1,241,265 | 221,164 |
| Events in quadrant C | 841,298 | 206,851 |
| Events in quadrant D | 1,202,466 | 181,180 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9023 | 441 |
| B | 0 | 5299 | 222 |
| C | 0 | 4424 | 218 |
| D | 0 | 5586 | 429 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 2 |
| B | 0 | 43 | 1 |
| C | 0 | 44 | 2 |
| D | 0 | 44 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2099 | 36 | 1.715102% |
| B | 2105 | 27 | 1.282660% |
| C | 2103 | 0 | 0.000000% |
| D | 2097 | 84 | 4.005722% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2121 | 2103 | 24 | 24 | 1.13% | 1.14% |  |
| B | 2153 | 2113 | 23 | 23 | 1.07% | 1.09% |  |
| C | 2181 | 2108 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2149 | 2098 | 81 | 81 | 3.77% | 3.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1283600 | 27149.33 | 215 | 211 | 47.3 |
| A | 12 | 189 | 138614 | 2927.83 | 215 | 211 | 47.3 |
| A | 13 | 248 | 16664 | 348.05 | 215 | 211 | 47.3 |
| B | 12 | 16 | 191258 | 4376.93 | 213 | 206 | 43.6 |
| B | 0 | 197 | 59591 | 1360.49 | 213 | 206 | 43.6 |
| B | 0 | 186 | 58259 | 1329.97 | 213 | 206 | 43.6 |
| C | 3 | 233 | 6780 | 126.75 | 213 | 214 | 51.8 |
| C | 14 | 67 | 2927 | 52.37 | 213 | 214 | 51.8 |
| C | 13 | 61 | 1475 | 24.34 | 213 | 214 | 51.8 |
| D | 2 | 165 | 247934 | 4611.66 | 209 | 202 | 53.7 |
| D | 12 | 233 | 106772 | 1983.86 | 209 | 202 | 53.7 |
| D | 2 | 249 | 23719 | 437.78 | 209 | 202 | 53.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

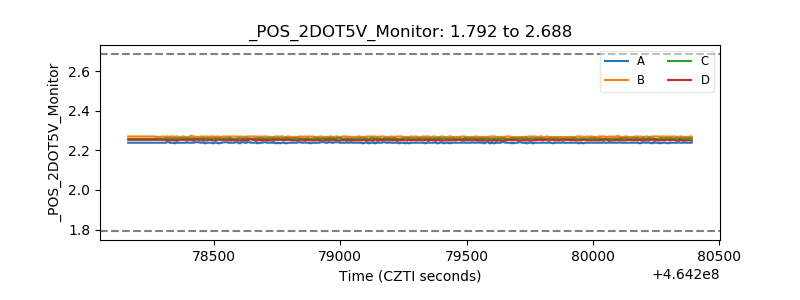

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
