| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48529cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48529cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,418,240 | 104,843,520 |
| Size | 462.9 MB | 100.0 MB |
| Events in quadrant A | 7,192,050 | 686,589 |
| Events in quadrant B | 3,194,821 | 722,667 |
| Events in quadrant C | 2,795,418 | 699,354 |
| Events in quadrant D | 4,263,598 | 596,624 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26062 | 34 |
| B | 0 | 14512 | 6 |
| C | 0 | 13703 | 8 |
| D | 0 | 17886 | 17 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 1 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 1 |
| D | 0 | 10 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6730 | 286 | 4.249629% |
| B | 6733 | 85 | 1.262439% |
| C | 6733 | 15 | 0.222783% |
| D | 6732 | 504 | 7.486631% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7635 | 6734 | 125 | 125 | 1.64% | 1.86% |  |
| B | 7634 | 6735 | 32 | 32 | 0.42% | 0.48% |  |
| C | 7635 | 6736 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7634 | 6735 | 414 | 414 | 5.42% | 6.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4275679 | 29182.5 | 698 | 684 | 146.5 |
| A | 12 | 189 | 170521 | 1159.36 | 698 | 684 | 146.5 |
| A | 0 | 31 | 19248 | 126.72 | 698 | 684 | 146.5 |
| B | 5 | 255 | 192243 | 1382.92 | 705 | 684 | 138.5 |
| B | 5 | 171 | 103130 | 739.59 | 705 | 684 | 138.5 |
| B | 12 | 16 | 51421 | 366.28 | 705 | 684 | 138.5 |
| C | 14 | 254 | 24485 | 143.52 | 701 | 704 | 165.7 |
| C | 3 | 233 | 18208 | 105.64 | 701 | 704 | 165.7 |
| C | 12 | 250 | 10331 | 58.1 | 701 | 704 | 165.7 |
| D | 2 | 165 | 1326250 | 7741.57 | 679 | 659 | 171.2 |
| D | 2 | 249 | 113442 | 658.66 | 679 | 659 | 171.2 |
| D | 12 | 233 | 93497 | 542.18 | 679 | 659 | 171.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

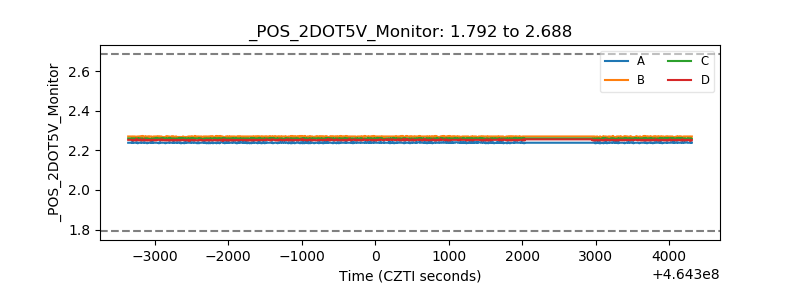

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
