| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48536cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48536cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,478,400 | 105,788,160 |
| Size | 510.7 MB | 100.9 MB |
| Events in quadrant A | 7,150,163 | 691,169 |
| Events in quadrant B | 3,296,115 | 737,379 |
| Events in quadrant C | 2,978,373 | 721,227 |
| Events in quadrant D | 5,852,313 | 564,690 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26432 | 2 |
| B | 0 | 15028 | 2 |
| C | 0 | 14480 | 2 |
| D | 0 | 22758 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7015 | 380 | 5.416964% |
| B | 7015 | 218 | 3.107627% |
| C | 7015 | 86 | 1.225944% |
| D | 7015 | 1092 | 15.566643% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7775 | 7016 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7775 | 7016 | 19 | 19 | 0.24% | 0.27% |  |
| C | 7775 | 7016 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7775 | 7016 | 813 | 813 | 10.46% | 11.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4098957 | 26172.95 | 752 | 737 | 156.6 |
| A | 12 | 189 | 127895 | 812.08 | 752 | 737 | 156.6 |
| A | 13 | 254 | 12552 | 75.46 | 752 | 737 | 156.6 |
| B | 5 | 255 | 190511 | 1247.69 | 763 | 739 | 152.1 |
| B | 0 | 186 | 41703 | 269.33 | 763 | 739 | 152.1 |
| B | 0 | 183 | 20264 | 128.37 | 763 | 739 | 152.1 |
| C | 12 | 250 | 12806 | 67.04 | 757 | 759 | 179.7 |
| C | 14 | 254 | 8773 | 44.59 | 757 | 759 | 179.7 |
| C | 13 | 61 | 5041 | 23.83 | 757 | 759 | 179.7 |
| D | 2 | 165 | 2830489 | 15977.51 | 700 | 677 | 177.1 |
| D | 2 | 249 | 200305 | 1127.13 | 700 | 677 | 177.1 |
| D | 12 | 233 | 65252 | 364.6 | 700 | 677 | 177.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

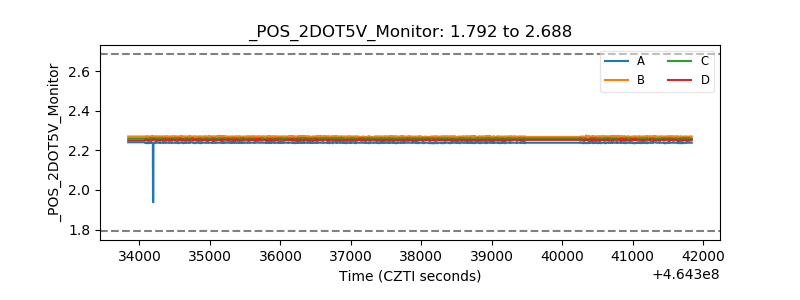

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
