| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48550cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48550cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,463,680 | 107,588,160 |
| Size | 421.0 MB | 102.6 MB |
| Events in quadrant A | 7,010,397 | 687,733 |
| Events in quadrant B | 3,055,092 | 736,249 |
| Events in quadrant C | 2,882,947 | 710,251 |
| Events in quadrant D | 2,861,566 | 646,465 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25763 | 2 |
| B | 0 | 14267 | 2 |
| C | 0 | 14037 | 3 |
| D | 0 | 14100 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6841 | 287 | 4.195293% |
| B | 6841 | 127 | 1.856454% |
| C | 6840 | 36 | 0.526316% |
| D | 6840 | 28 | 0.409357% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7797 | 6843 | 25 | 25 | 0.32% | 0.37% |  |
| B | 7797 | 6843 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7796 | 6842 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7796 | 6842 | 5 | 5 | 0.06% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4144935 | 26988.48 | 731 | 715 | 153.6 |
| A | 7 | 3 | 16359 | 101.88 | 731 | 715 | 153.6 |
| A | 12 | 189 | 15505 | 96.32 | 731 | 715 | 153.6 |
| B | 12 | 16 | 58589 | 392.79 | 745 | 719 | 147.3 |
| B | 5 | 255 | 19548 | 127.8 | 745 | 719 | 147.3 |
| B | 12 | 111 | 19095 | 124.73 | 745 | 719 | 147.3 |
| C | 12 | 250 | 10788 | 57.96 | 733 | 736 | 173.4 |
| C | 3 | 233 | 8422 | 44.32 | 733 | 736 | 173.4 |
| C | 14 | 67 | 7210 | 37.33 | 733 | 736 | 173.4 |
| D | 2 | 249 | 57834 | 314.06 | 726 | 702 | 181.9 |
| D | 2 | 234 | 30924 | 166.13 | 726 | 702 | 181.9 |
| D | 2 | 233 | 23654 | 126.17 | 726 | 702 | 181.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

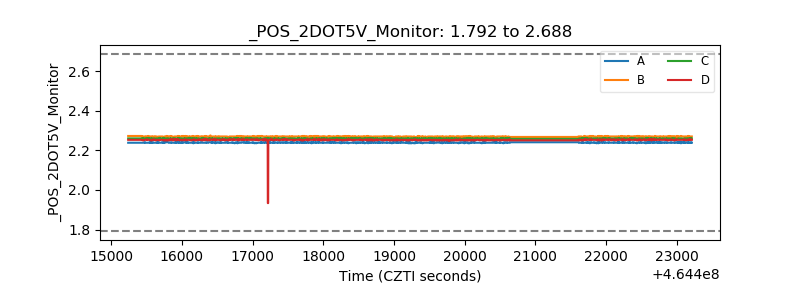

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
