| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48581cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48581cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,560,640 | 113,094,720 |
| Size | 572.7 MB | 107.9 MB |
| Events in quadrant A | 7,276,518 | 742,230 |
| Events in quadrant B | 3,470,038 | 789,667 |
| Events in quadrant C | 3,160,996 | 765,484 |
| Events in quadrant D | 7,742,142 | 605,072 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27159 | 0 |
| B | 0 | 15969 | 0 |
| C | 0 | 15425 | 0 |
| D | 0 | 28600 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7495 | 307 | 4.096064% |
| B | 7496 | 190 | 2.534685% |
| C | 7496 | 20 | 0.266809% |
| D | 7496 | 1111 | 14.821238% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7495 | 7495 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7496 | 7496 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7496 | 7496 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7496 | 7496 | 1014 | 1014 | 13.53% | 13.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4026313 | 23569.35 | 811 | 792 | 170.8 |
| A | 0 | 31 | 104128 | 605.03 | 811 | 792 | 170.8 |
| A | 13 | 254 | 13007 | 71.52 | 811 | 792 | 170.8 |
| B | 12 | 16 | 187573 | 1154.87 | 815 | 785 | 161.7 |
| B | 5 | 255 | 27018 | 162.19 | 815 | 785 | 161.7 |
| B | 12 | 111 | 21755 | 129.65 | 815 | 785 | 161.7 |
| C | 14 | 254 | 13635 | 67.32 | 805 | 810 | 190.5 |
| C | 14 | 67 | 5978 | 27.13 | 805 | 810 | 190.5 |
| C | 13 | 61 | 5348 | 23.82 | 805 | 810 | 190.5 |
| D | 2 | 165 | 4686992 | 24124.93 | 767 | 742 | 194.2 |
| D | 13 | 171 | 69491 | 353.92 | 767 | 742 | 194.2 |
| D | 2 | 234 | 36314 | 183.13 | 767 | 742 | 194.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

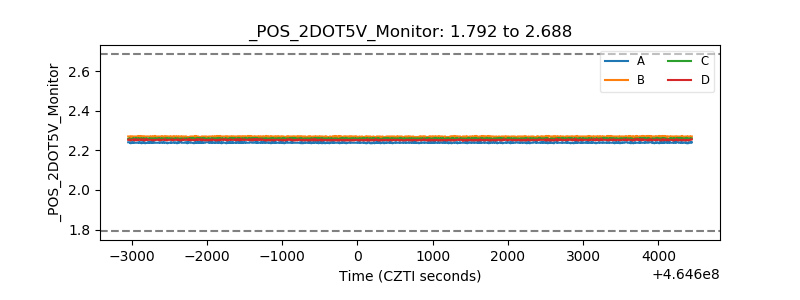

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
