| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48583cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48583cztM0_level2_quad_clean.evt |
| Size (bytes) | 698,184,000 | 125,507,520 |
| Size | 665.8 MB | 119.7 MB |
| Events in quadrant A | 8,161,131 | 858,628 |
| Events in quadrant B | 4,422,550 | 893,471 |
| Events in quadrant C | 3,515,229 | 856,791 |
| Events in quadrant D | 9,096,251 | 608,535 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30628 | 2 |
| B | 0 | 19012 | 0 |
| C | 0 | 17005 | 0 |
| D | 0 | 32885 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8383 | 184 | 2.194918% |
| B | 8384 | 139 | 1.657920% |
| C | 8384 | 9 | 0.107347% |
| D | 8384 | 1875 | 22.364027% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8383 | 8383 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8384 | 8384 | 60 | 60 | 0.72% | 0.72% |  |
| C | 8384 | 8384 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8384 | 8384 | 1374 | 1374 | 16.39% | 16.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4523895 | 23660.33 | 915 | 895 | 191.2 |
| A | 0 | 31 | 64917 | 334.91 | 915 | 895 | 191.2 |
| A | 13 | 248 | 32108 | 163.28 | 915 | 895 | 191.2 |
| B | 12 | 16 | 479298 | 2640.56 | 910 | 880 | 181.2 |
| B | 5 | 255 | 322373 | 1774.43 | 910 | 880 | 181.2 |
| B | 12 | 111 | 23962 | 127.4 | 910 | 880 | 181.2 |
| C | 14 | 67 | 11606 | 50.7 | 898 | 898 | 211.2 |
| C | 13 | 61 | 6106 | 24.66 | 898 | 898 | 211.2 |
| C | 2 | 80 | 3427 | 11.97 | 898 | 898 | 211.2 |
| D | 2 | 165 | 5315203 | 25987.79 | 815 | 787 | 204.5 |
| D | 2 | 249 | 262182 | 1278.24 | 815 | 787 | 204.5 |
| D | 13 | 171 | 241540 | 1177.3 | 815 | 787 | 204.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

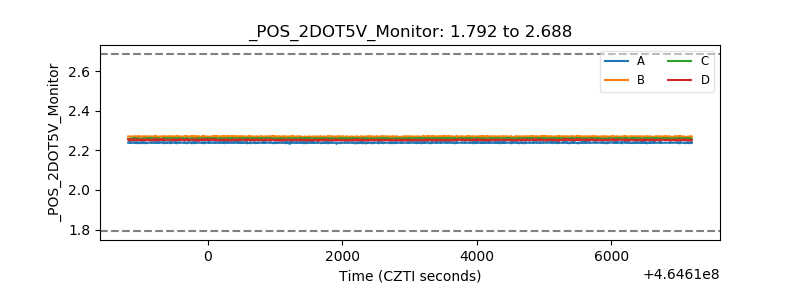

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
