| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48586cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48586cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,718,902,080 | 276,312,960 |
| Size | 1.6 GB | 263.5 MB |
| Events in quadrant A | 18,940,144 | 1,916,367 |
| Events in quadrant B | 12,305,774 | 1,897,098 |
| Events in quadrant C | 8,051,850 | 1,926,934 |
| Events in quadrant D | 22,849,774 | 1,303,757 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70567 | 2 |
| B | 0 | 50378 | 2 |
| C | 0 | 39163 | 2 |
| D | 0 | 81592 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19183 | 771 | 4.019184% |
| B | 19184 | 1417 | 7.386364% |
| C | 19184 | 249 | 1.297957% |
| D | 19183 | 4922 | 25.658135% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20508 | 19187 | 34 | 34 | 0.17% | 0.18% |  |
| B | 20509 | 19188 | 749 | 749 | 3.65% | 3.90% |  |
| C | 20509 | 19188 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20508 | 19187 | 3315 | 3315 | 16.16% | 17.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10913952 | 25586.16 | 2059 | 2011 | 426.5 |
| A | 13 | 248 | 43905 | 98.23 | 2059 | 2011 | 426.5 |
| A | 13 | 254 | 37825 | 83.98 | 2059 | 2011 | 426.5 |
| B | 12 | 16 | 3336250 | 8323.87 | 2027 | 1955 | 400.6 |
| B | 5 | 255 | 880569 | 2193.41 | 2027 | 1955 | 400.6 |
| B | 12 | 111 | 52594 | 126.42 | 2027 | 1955 | 400.6 |
| C | 3 | 233 | 17669 | 32.23 | 2058 | 2070 | 483.9 |
| C | 14 | 67 | 15920 | 28.62 | 2058 | 2070 | 483.9 |
| C | 13 | 61 | 13810 | 24.26 | 2058 | 2070 | 483.9 |
| D | 2 | 165 | 14749517 | 31640.12 | 1851 | 1791 | 466.1 |
| D | 13 | 171 | 543782 | 1162.8 | 1851 | 1791 | 466.1 |
| D | 2 | 249 | 230021 | 489.65 | 1851 | 1791 | 466.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

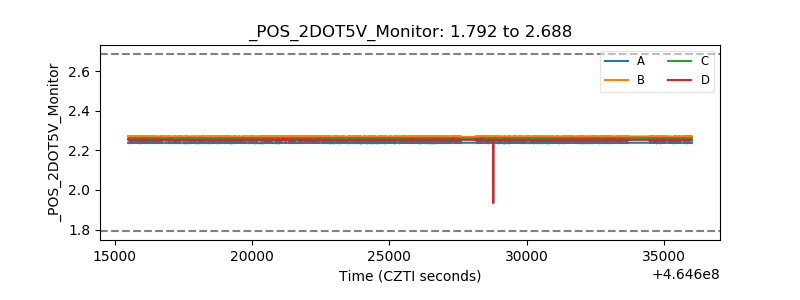

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
