| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48597cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48597cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,284,480 | 136,883,520 |
| Size | 542.0 MB | 130.5 MB |
| Events in quadrant A | 8,481,717 | 896,511 |
| Events in quadrant B | 4,103,381 | 935,770 |
| Events in quadrant C | 3,699,869 | 895,221 |
| Events in quadrant D | 4,067,314 | 805,305 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32006 | 0 |
| B | 0 | 18386 | 0 |
| C | 0 | 17878 | 0 |
| D | 0 | 18949 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 176 | 0 |
| B | 0 | 176 | 0 |
| C | 0 | 176 | 0 |
| D | 0 | 176 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8815 | 123 | 1.395349% |
| B | 8815 | 39 | 0.442428% |
| C | 8815 | 5 | 0.056721% |
| D | 8816 | 92 | 1.043557% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8815 | 8815 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8815 | 8815 | 3 | 3 | 0.03% | 0.03% |  |
| C | 8815 | 8815 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8816 | 8816 | 61 | 61 | 0.69% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4781899 | 23745.75 | 952 | 929 | 201.3 |
| A | 13 | 254 | 17326 | 81.44 | 952 | 929 | 201.3 |
| A | 13 | 248 | 12245 | 56.2 | 952 | 929 | 201.3 |
| B | 12 | 16 | 229704 | 1208.28 | 954 | 921 | 189.3 |
| B | 0 | 197 | 57962 | 301.25 | 954 | 921 | 189.3 |
| B | 12 | 111 | 25105 | 127.72 | 954 | 921 | 189.3 |
| C | 12 | 250 | 20636 | 89.31 | 936 | 939 | 220.5 |
| C | 12 | 249 | 18420 | 79.26 | 936 | 939 | 220.5 |
| C | 14 | 67 | 7469 | 29.61 | 936 | 939 | 220.5 |
| D | 13 | 171 | 215141 | 923.16 | 925 | 893 | 232.1 |
| D | 2 | 249 | 198813 | 852.81 | 925 | 893 | 232.1 |
| D | 5 | 171 | 83850 | 357.45 | 925 | 893 | 232.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

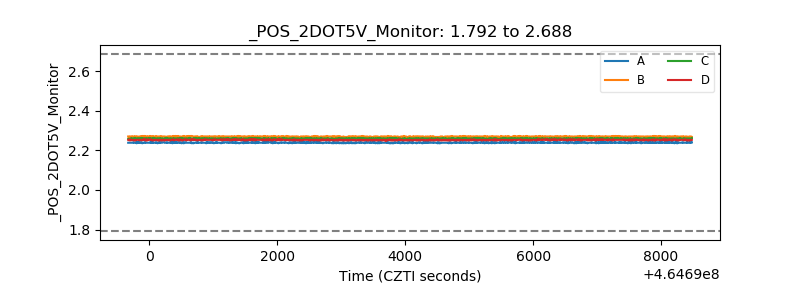

| +2.5 Volts monitor |  |

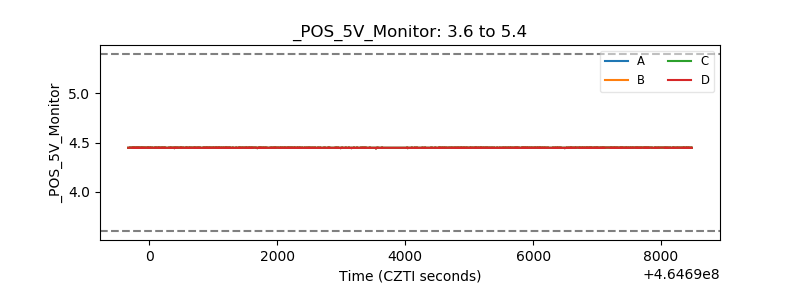

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
