| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48607cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48607cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,084,800 | 104,955,840 |
| Size | 478.8 MB | 100.1 MB |
| Events in quadrant A | 7,487,047 | 675,338 |
| Events in quadrant B | 3,926,708 | 715,268 |
| Events in quadrant C | 2,724,795 | 707,578 |
| Events in quadrant D | 3,944,487 | 627,453 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26906 | 2 |
| B | 0 | 16273 | 2 |
| C | 0 | 13189 | 2 |
| D | 0 | 16613 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6479 | 449 | 6.930082% |
| B | 6478 | 371 | 5.727076% |
| C | 6478 | 13 | 0.200679% |
| D | 6478 | 147 | 2.269219% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7629 | 6480 | 219 | 219 | 2.87% | 3.38% |  |
| B | 7628 | 6479 | 203 | 203 | 2.66% | 3.13% |  |
| C | 7628 | 6479 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7628 | 6479 | 93 | 93 | 1.22% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4001055 | 27739.92 | 690 | 675 | 144.2 |
| A | 13 | 248 | 807265 | 5593.15 | 690 | 675 | 144.2 |
| A | 13 | 254 | 11609 | 75.82 | 690 | 675 | 144.2 |
| B | 12 | 16 | 1144951 | 8408.72 | 695 | 675 | 136.1 |
| B | 0 | 183 | 23723 | 169.37 | 695 | 675 | 136.1 |
| B | 12 | 111 | 17220 | 121.58 | 695 | 675 | 136.1 |
| C | 12 | 249 | 5528 | 29.53 | 696 | 700 | 163.5 |
| C | 13 | 61 | 4627 | 24.02 | 696 | 700 | 163.5 |
| C | 12 | 250 | 2600 | 11.62 | 696 | 700 | 163.5 |
| D | 2 | 165 | 1273498 | 7458.0 | 679 | 657 | 170.7 |
| D | 2 | 234 | 30779 | 176.49 | 679 | 657 | 170.7 |
| D | 2 | 233 | 24600 | 140.29 | 679 | 657 | 170.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

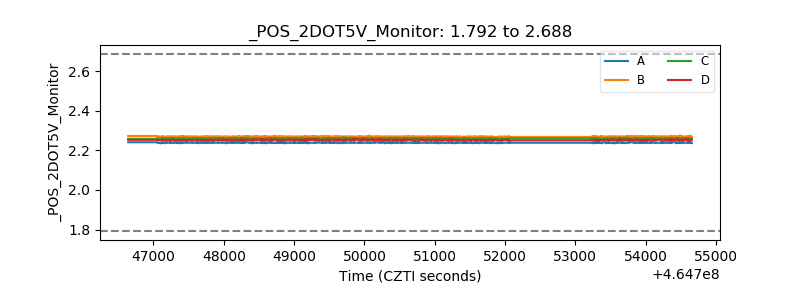

| +2.5 Volts monitor |  |

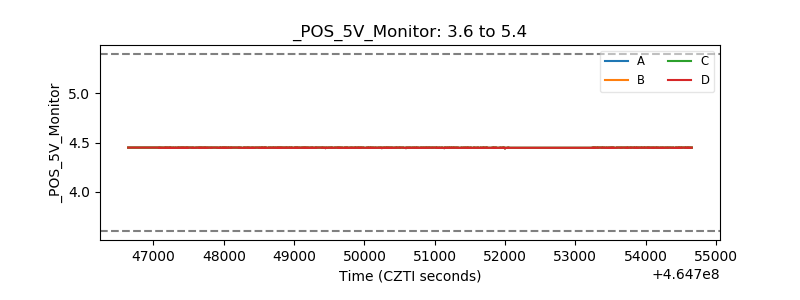

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
