| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48610cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48610cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,074,560 | 119,577,600 |
| Size | 502.7 MB | 114.0 MB |
| Events in quadrant A | 8,238,063 | 740,442 |
| Events in quadrant B | 3,492,283 | 819,106 |
| Events in quadrant C | 3,674,617 | 797,095 |
| Events in quadrant D | 3,500,641 | 722,148 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30035 | 1 |
| B | 0 | 16296 | 1 |
| C | 0 | 17012 | 1 |
| D | 0 | 16611 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7791 | 648 | 8.317289% |
| B | 7791 | 244 | 3.131819% |
| C | 7791 | 112 | 1.437556% |
| D | 7791 | 56 | 0.718778% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7791 | 7791 | 171 | 171 | 2.19% | 2.19% |  |
| B | 7791 | 7791 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7791 | 7791 | 62 | 62 | 0.80% | 0.80% |  |
| D | 7791 | 7791 | 7 | 7 | 0.09% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4324671 | 24231.51 | 846 | 826 | 178.4 |
| A | 13 | 248 | 611582 | 3422.77 | 846 | 826 | 178.4 |
| A | 13 | 254 | 13451 | 70.75 | 846 | 826 | 178.4 |
| B | 5 | 255 | 24425 | 135.59 | 864 | 834 | 174.0 |
| B | 12 | 111 | 22932 | 127.01 | 864 | 834 | 174.0 |
| B | 0 | 197 | 21882 | 120.97 | 864 | 834 | 174.0 |
| C | 12 | 250 | 331873 | 1654.65 | 851 | 854 | 200.1 |
| C | 1 | 241 | 13915 | 65.29 | 851 | 854 | 200.1 |
| C | 14 | 254 | 7261 | 32.03 | 851 | 854 | 200.1 |
| D | 2 | 165 | 109674 | 513.83 | 847 | 819 | 211.8 |
| D | 10 | 199 | 72584 | 338.75 | 847 | 819 | 211.8 |
| D | 2 | 234 | 39542 | 182.79 | 847 | 819 | 211.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

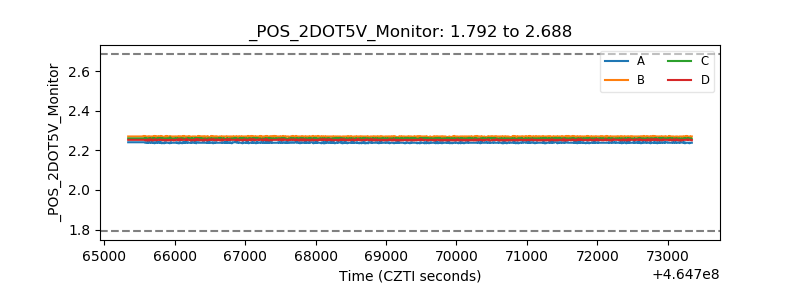

| +2.5 Volts monitor |  |

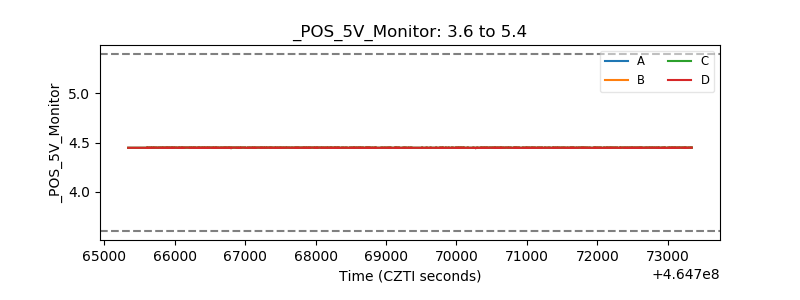

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
