| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48702cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48702cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,431,630,720 | 306,466,560 |
| Size | 1.3 GB | 292.3 MB |
| Events in quadrant A | 20,462,267 | 2,007,000 |
| Events in quadrant B | 12,050,960 | 1,962,656 |
| Events in quadrant C | 9,114,956 | 2,053,314 |
| Events in quadrant D | 9,793,032 | 1,854,205 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76193 | 2 |
| B | 0 | 50511 | 2 |
| C | 0 | 42333 | 2 |
| D | 0 | 44678 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 412 | 0 |
| B | 0 | 412 | 0 |
| C | 0 | 412 | 0 |
| D | 0 | 412 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 20343 | 949 | 4.664995% |
| B | 20344 | 1855 | 9.118168% |
| C | 20344 | 266 | 1.307511% |
| D | 20344 | 346 | 1.700747% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21388 | 20345 | 129 | 129 | 0.60% | 0.63% |  |
| B | 21389 | 20346 | 934 | 934 | 4.37% | 4.59% |  |
| C | 21389 | 20346 | 22 | 22 | 0.10% | 0.11% |  |
| D | 21389 | 20346 | 116 | 116 | 0.54% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 11304377 | 24342.02 | 2222 | 2167 | 464.3 |
| A | 13 | 248 | 504071 | 1080.97 | 2222 | 2167 | 464.3 |
| A | 13 | 254 | 38212 | 77.63 | 2222 | 2167 | 464.3 |
| B | 12 | 16 | 3330536 | 7720.73 | 2174 | 2102 | 431.1 |
| B | 12 | 111 | 57241 | 127.9 | 2174 | 2102 | 431.1 |
| B | 11 | 111 | 53332 | 118.83 | 2174 | 2102 | 431.1 |
| C | 14 | 254 | 216852 | 410.18 | 2221 | 2231 | 523.2 |
| C | 12 | 2 | 148632 | 279.8 | 2221 | 2231 | 523.2 |
| C | 3 | 233 | 30110 | 53.28 | 2221 | 2231 | 523.2 |
| D | 2 | 249 | 905312 | 1644.08 | 2202 | 2134 | 549.4 |
| D | 7 | 38 | 128546 | 230.11 | 2202 | 2134 | 549.4 |
| D | 2 | 234 | 110175 | 196.67 | 2202 | 2134 | 549.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

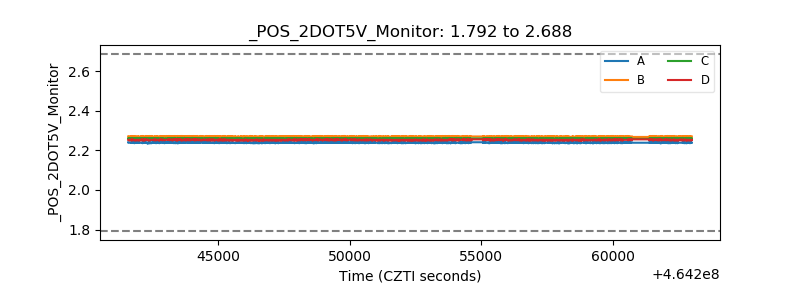

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
