| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48709cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48709cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,833,600 | 106,675,200 |
| Size | 410.9 MB | 101.7 MB |
| Events in quadrant A | 6,861,395 | 683,945 |
| Events in quadrant B | 2,927,781 | 738,282 |
| Events in quadrant C | 2,827,292 | 713,313 |
| Events in quadrant D | 2,829,153 | 643,777 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24615 | 2 |
| B | 0 | 13435 | 2 |
| C | 0 | 13290 | 2 |
| D | 0 | 13495 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6467 | 348 | 5.381166% |
| B | 6467 | 74 | 1.144271% |
| C | 6467 | 23 | 0.355652% |
| D | 6467 | 31 | 0.479357% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7602 | 6468 | 172 | 172 | 2.26% | 2.66% |  |
| B | 7602 | 6468 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7602 | 6468 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7602 | 6468 | 22 | 22 | 0.29% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4015268 | 27472.59 | 701 | 686 | 146.1 |
| A | 13 | 248 | 131324 | 893.98 | 701 | 686 | 146.1 |
| A | 13 | 254 | 12548 | 81.17 | 701 | 686 | 146.1 |
| B | 12 | 16 | 43892 | 307.39 | 716 | 694 | 140.5 |
| B | 10 | 7 | 24476 | 169.23 | 716 | 694 | 140.5 |
| B | 12 | 111 | 18129 | 124.06 | 716 | 694 | 140.5 |
| C | 3 | 233 | 28455 | 165.36 | 711 | 715 | 167.8 |
| C | 14 | 254 | 10834 | 60.32 | 711 | 715 | 167.8 |
| C | 12 | 2 | 10752 | 59.83 | 711 | 715 | 167.8 |
| D | 7 | 55 | 42049 | 238.55 | 698 | 677 | 173.4 |
| D | 5 | 32 | 38449 | 217.79 | 698 | 677 | 173.4 |
| D | 2 | 233 | 31621 | 178.42 | 698 | 677 | 173.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

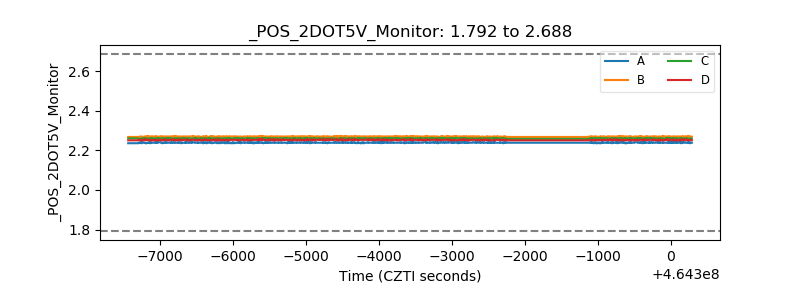

| +2.5 Volts monitor |  |

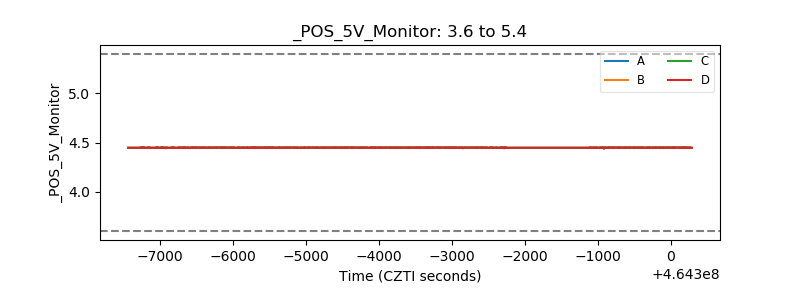

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
