| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006436_48711cztM0_level2.fits | modeM0/AS1A13_037T01_9000006436_48711cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,339,840 | 120,268,800 |
| Size | 481.0 MB | 114.7 MB |
| Events in quadrant A | 7,977,219 | 757,222 |
| Events in quadrant B | 3,409,334 | 829,985 |
| Events in quadrant C | 3,359,109 | 801,512 |
| Events in quadrant D | 3,330,493 | 721,806 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28806 | 2 |
| B | 0 | 15920 | 2 |
| C | 0 | 15850 | 2 |
| D | 0 | 15981 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7636 | 505 | 6.613410% |
| B | 7637 | 88 | 1.152285% |
| C | 7637 | 27 | 0.353542% |
| D | 7637 | 39 | 0.510672% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9076 | 7638 | 201 | 201 | 2.21% | 2.63% |  |
| B | 9077 | 7639 | 6 | 6 | 0.07% | 0.08% |  |
| C | 9077 | 7639 | 6 | 6 | 0.07% | 0.08% |  |
| D | 9077 | 7639 | 13 | 13 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4414092 | 25568.28 | 823 | 803 | 172.6 |
| A | 13 | 248 | 365572 | 2113.28 | 823 | 803 | 172.6 |
| A | 13 | 254 | 14341 | 78.43 | 823 | 803 | 172.6 |
| B | 12 | 16 | 46194 | 268.79 | 845 | 818 | 168.8 |
| B | 12 | 111 | 21845 | 124.56 | 845 | 818 | 168.8 |
| B | 11 | 111 | 20292 | 115.36 | 845 | 818 | 168.8 |
| C | 12 | 2 | 44324 | 220.0 | 837 | 838 | 197.7 |
| C | 3 | 233 | 33589 | 165.69 | 837 | 838 | 197.7 |
| C | 14 | 254 | 8171 | 37.1 | 837 | 838 | 197.7 |
| D | 5 | 171 | 67811 | 323.35 | 825 | 801 | 207.2 |
| D | 2 | 234 | 38481 | 181.82 | 825 | 801 | 207.2 |
| D | 2 | 233 | 32786 | 154.34 | 825 | 801 | 207.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

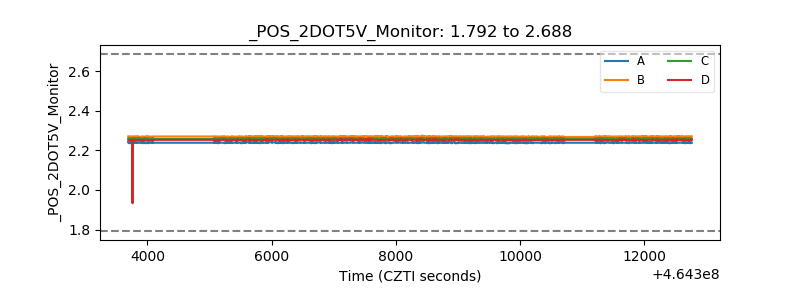

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
