| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_233T01_9000006438_49645cztM0_level2.fits | modeM0/AS1T05_233T01_9000006438_49645cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,163,875,840 | 119,041,920 |
| Size | 2.9 GB | 113.5 MB |
| Events in quadrant A | 41,469,297 | 245,555 |
| Events in quadrant B | 15,871,837 | 1,682,728 |
| Events in quadrant C | 15,292,481 | 43,852 |
| Events in quadrant D | 43,017,844 | 302,361 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 384 | 0 |
| B | 0 | 384 | 0 |
| C | 0 | 384 | 0 |
| D | 0 | 384 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136150 | 0 |
| B | 0 | 60096 | 0 |
| C | 0 | 58202 | 0 |
| D | 0 | 140598 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18878 | 18804 | 99.608009% |
| B | 18880 | 2608 | 13.813559% |
| C | 18880 | 18862 | 99.904661% |
| D | 18878 | 18677 | 98.935269% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20023 | 18877 | 13140 | 13140 | 65.62% | 69.61% |  |
| B | 20025 | 18880 | 1838 | 1838 | 9.18% | 9.74% |  |
| C | 20024 | 18879 | 1137 | 1137 | 5.68% | 6.02% |  |
| D | 20023 | 18877 | 15529 | 15529 | 77.56% | 82.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 99 | 23000782 | 149748.03 | 344 | 320 | 153.6 |
| A | 10 | 83 | 5388971 | 35083.64 | 344 | 320 | 153.6 |
| A | 4 | 60 | 2691584 | 17521.89 | 344 | 320 | 153.6 |
| B | 3 | 232 | 2490505 | 6415.81 | 1858 | 1801 | 387.9 |
| B | 4 | 206 | 1028048 | 2645.64 | 1858 | 1801 | 387.9 |
| B | 4 | 170 | 935869 | 2408.0 | 1858 | 1801 | 387.9 |
| C | 15 | 180 | 3709268 | 65886.22 | 81 | 75 | 56.3 |
| C | 15 | 181 | 2507112 | 44532.38 | 81 | 75 | 56.3 |
| C | 15 | 190 | 1251465 | 22228.38 | 81 | 75 | 56.3 |
| D | 7 | 45 | 9903195 | 31470.76 | 479 | 429 | 314.7 |
| D | 15 | 40 | 7249594 | 23037.68 | 479 | 429 | 314.7 |
| D | 15 | 184 | 3981924 | 12653.1 | 479 | 429 | 314.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

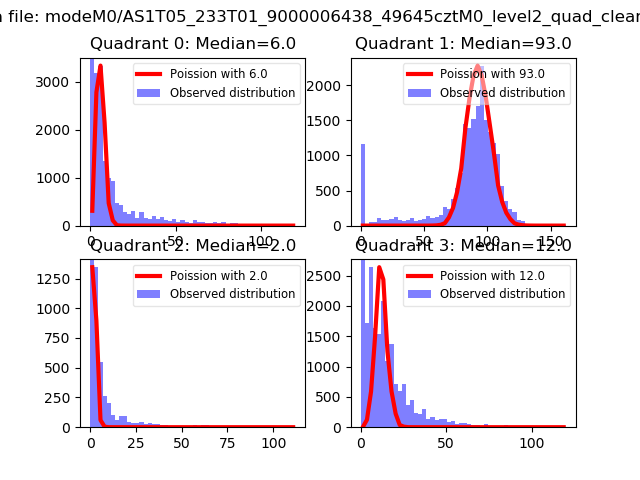

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

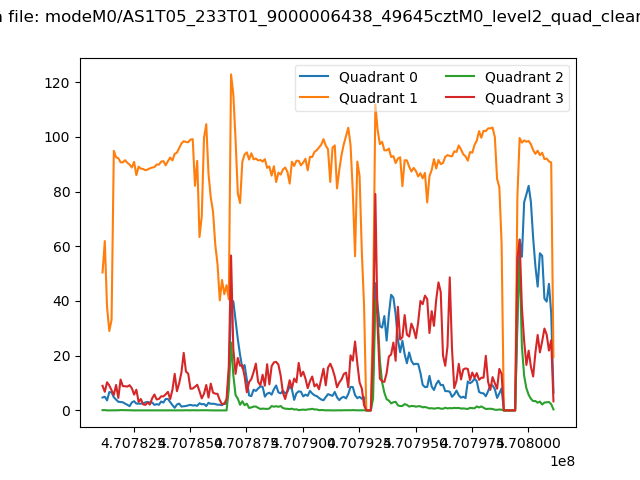

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

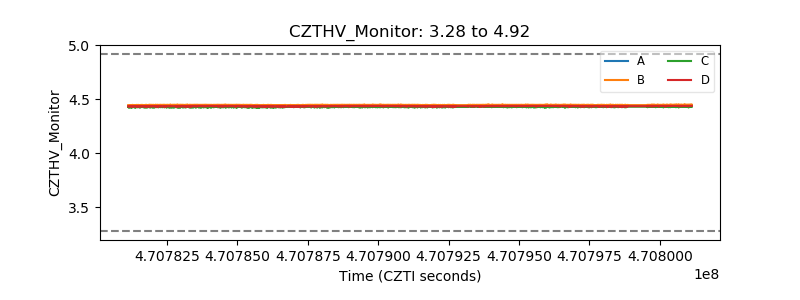

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

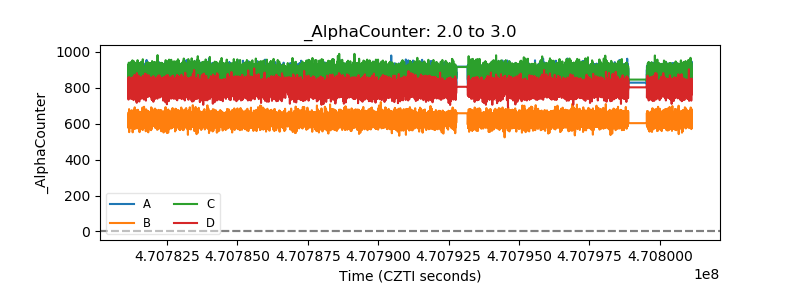

| Alpha Counter |  |

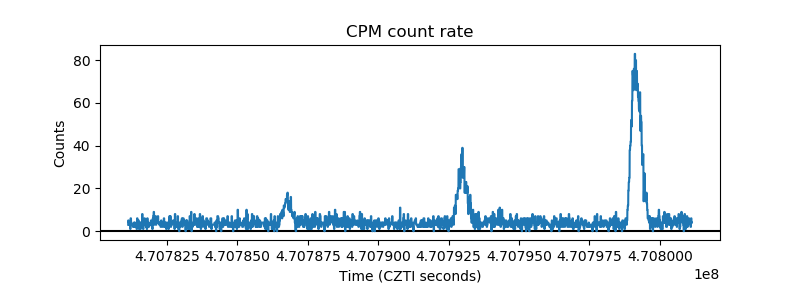

| _CPM_Rate |  |
| CZT Counter |  |

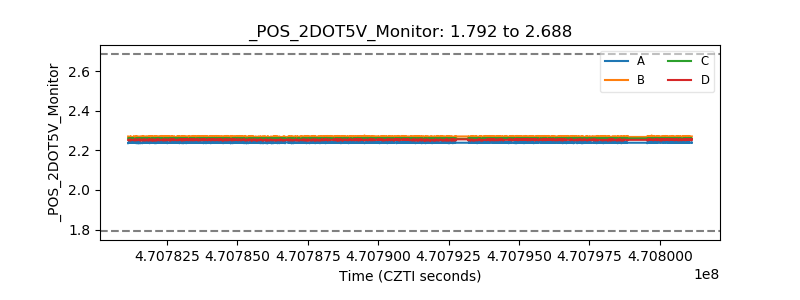

| +2.5 Volts monitor |  |

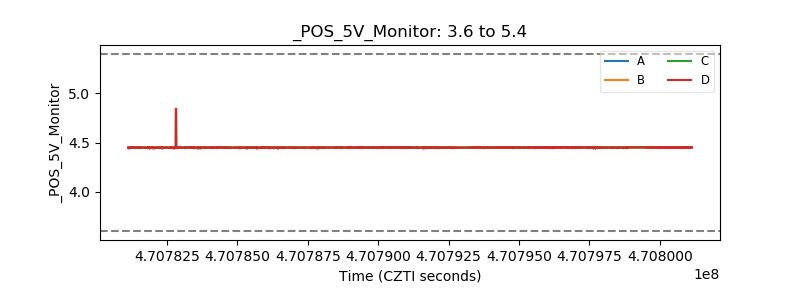

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
