| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006440_49754cztM0_level2.fits | modeM0/AS1A13_037T01_9000006440_49754cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,201,587,840 | 46,967,040 |
| Size | 1.1 GB | 44.8 MB |
| Events in quadrant A | 15,060,662 | 100,433 |
| Events in quadrant B | 4,051,374 | 651,022 |
| Events in quadrant C | 11,117,169 | 21,289 |
| Events in quadrant D | 13,765,943 | 211,930 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49024 | 5 |
| B | 0 | 16158 | 1 |
| C | 0 | 37394 | 1 |
| D | 0 | 45202 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6267 | 5509 | 87.904899% |
| B | 6267 | 307 | 4.898676% |
| C | 6268 | 6086 | 97.096362% |
| D | 6267 | 4204 | 67.081538% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7311 | 6266 | 5639 | 5639 | 77.13% | 89.99% |  |
| B | 7312 | 6267 | 180 | 180 | 2.46% | 2.87% |  |
| C | 7312 | 6267 | 1966 | 1966 | 26.89% | 31.37% |  |
| D | 7313 | 6268 | 4275 | 4275 | 58.46% | 68.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6218438 | 56437.67 | 411 | 398 | 110.2 |
| A | 7 | 64 | 2804089 | 25447.54 | 411 | 398 | 110.2 |
| A | 8 | 8 | 1314283 | 11925.4 | 411 | 398 | 110.2 |
| B | 10 | 28 | 368383 | 2508.41 | 683 | 662 | 146.6 |
| B | 4 | 21 | 242859 | 1652.15 | 683 | 662 | 146.6 |
| B | 10 | 247 | 162568 | 1104.44 | 683 | 662 | 146.6 |
| C | 15 | 180 | 4643814 | 114275.16 | 102 | 100 | 40.6 |
| C | 15 | 190 | 1383756 | 34049.79 | 102 | 100 | 40.6 |
| C | 15 | 181 | 1288451 | 31704.47 | 102 | 100 | 40.6 |
| D | 15 | 185 | 2248560 | 14756.93 | 496 | 476 | 152.3 |
| D | 12 | 6 | 1776255 | 11656.61 | 496 | 476 | 152.3 |
| D | 15 | 168 | 1607912 | 10551.57 | 496 | 476 | 152.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

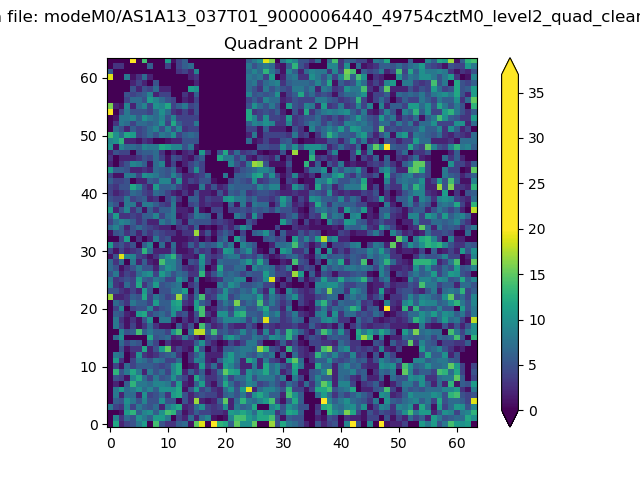

| Quadrant D |  |
 |
Quadrant C |

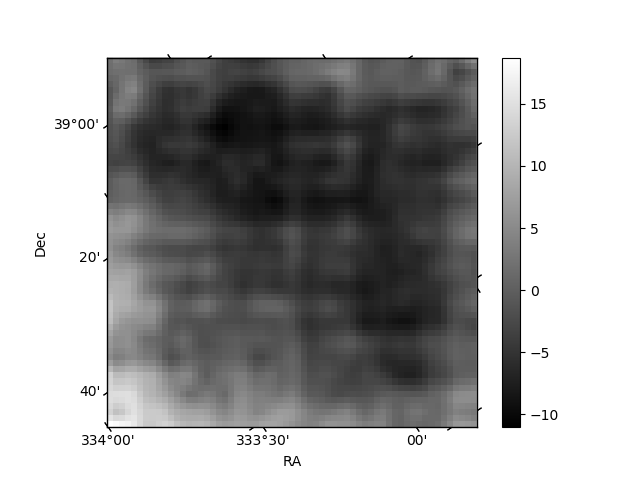

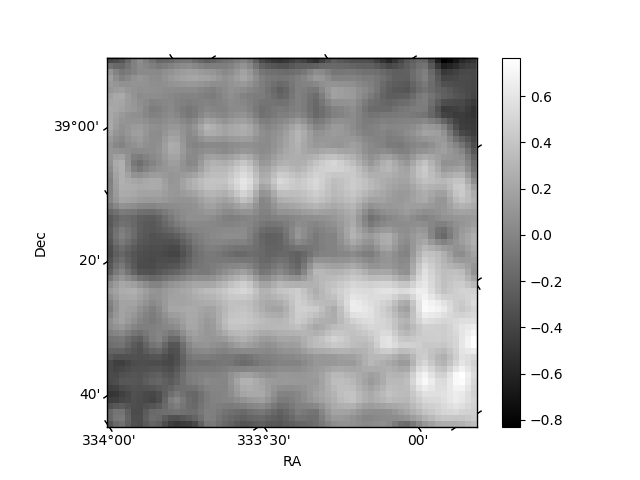

| Plot type | Count rate plots | Images |
|---|---|---|

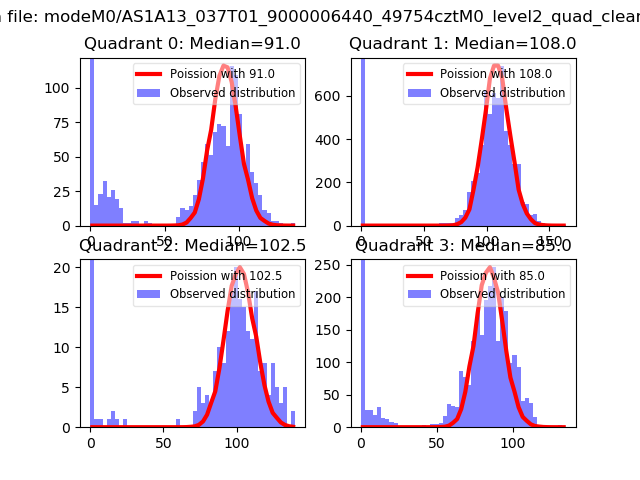

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

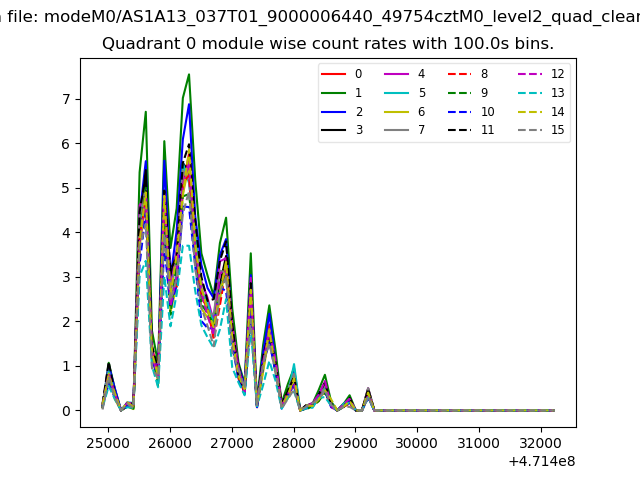

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

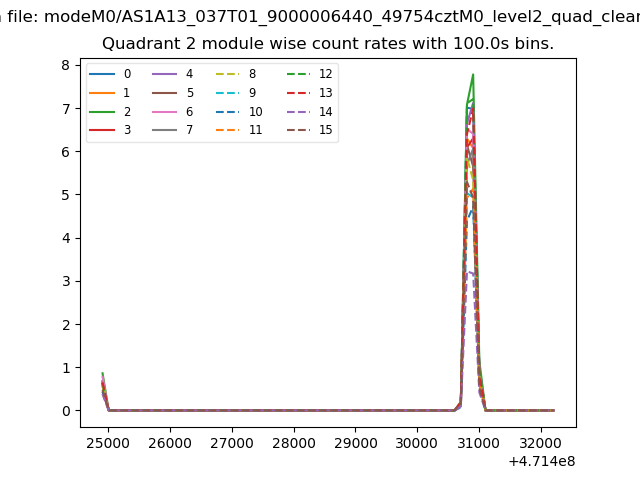

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

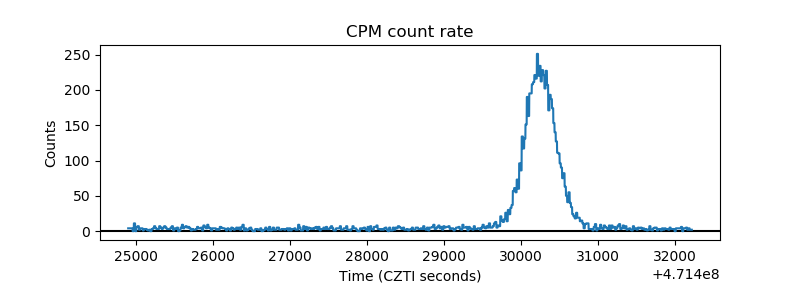

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

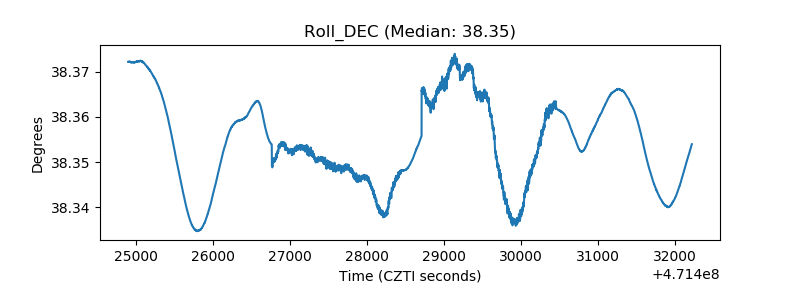

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
