| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006442_50120cztM0_level2.fits | modeM0/AS1C09_003T01_9000006442_50120cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,434,712,320 | 67,469,760 |
| Size | 1.3 GB | 64.3 MB |
| Events in quadrant A | 16,586,359 | 195,102 |
| Events in quadrant B | 5,271,320 | 729,208 |
| Events in quadrant C | 15,523,457 | 219,338 |
| Events in quadrant D | 15,136,615 | 363,596 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54522 | 6 |
| B | 0 | 21019 | 0 |
| C | 0 | 51342 | 0 |
| D | 0 | 50274 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7688 | 5729 | 74.518730% |
| B | 7688 | 395 | 5.137877% |
| C | 7688 | 5441 | 70.772633% |
| D | 7688 | 3723 | 48.426119% |

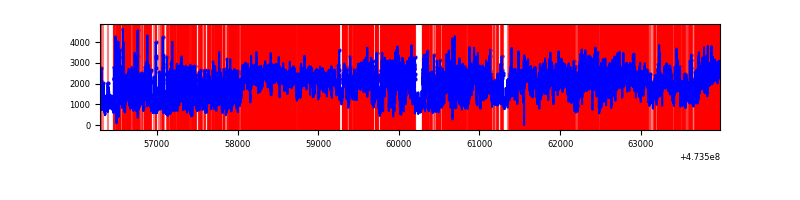

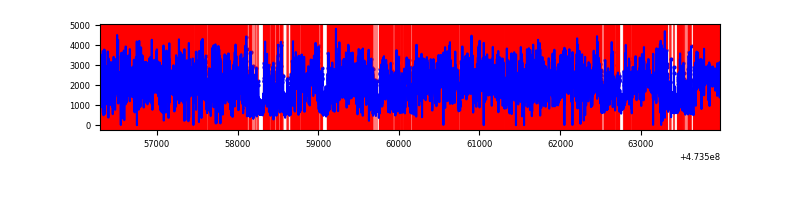

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7688 | 7688 | 5224 | 5224 | 67.95% | 67.95% |  |
| B | 7688 | 7688 | 283 | 283 | 3.68% | 3.68% |  |
| C | 7688 | 7688 | 4283 | 4283 | 55.71% | 55.71% |  |
| D | 7688 | 7688 | 4119 | 4119 | 53.58% | 53.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 250 | 7095294 | 58696.66 | 474 | 463 | 120.9 |
| A | 4 | 13 | 2307946 | 19090.17 | 474 | 463 | 120.9 |
| A | 8 | 8 | 2203107 | 18222.82 | 474 | 463 | 120.9 |
| B | 2 | 176 | 1068543 | 6636.59 | 760 | 736 | 160.9 |
| B | 5 | 185 | 268028 | 1661.26 | 760 | 736 | 160.9 |
| B | 1 | 255 | 198200 | 1227.27 | 760 | 736 | 160.9 |
| C | 4 | 111 | 9360822 | 75904.78 | 426 | 423 | 123.3 |
| C | 15 | 230 | 845302 | 6851.24 | 426 | 423 | 123.3 |
| C | 13 | 250 | 623167 | 5049.92 | 426 | 423 | 123.3 |
| D | 15 | 168 | 4018604 | 21195.92 | 633 | 607 | 189.6 |
| D | 15 | 106 | 2446713 | 12903.81 | 633 | 607 | 189.6 |
| D | 12 | 191 | 773428 | 4076.82 | 633 | 607 | 189.6 |

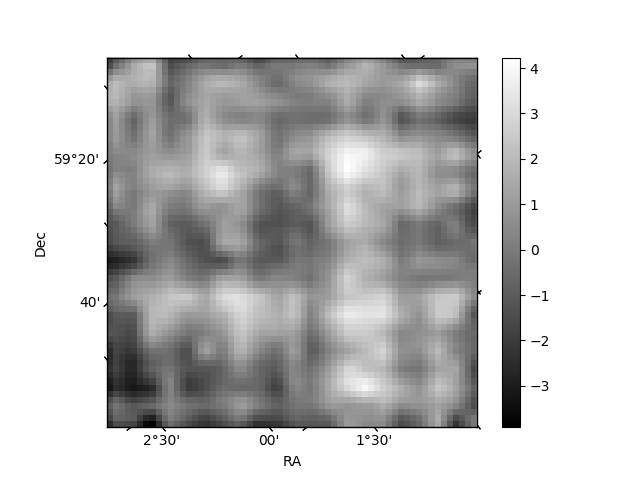

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

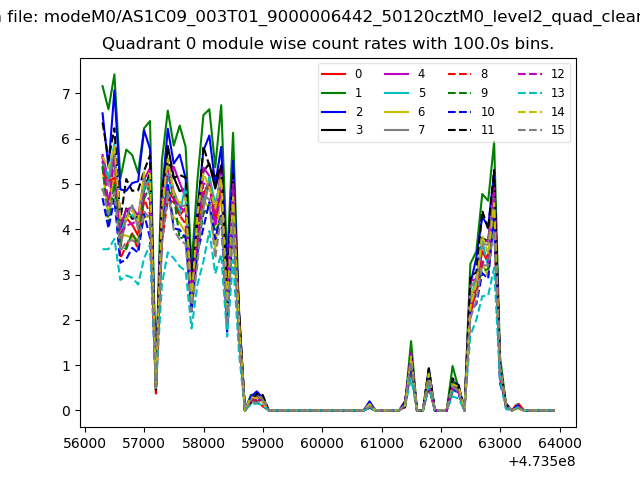

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

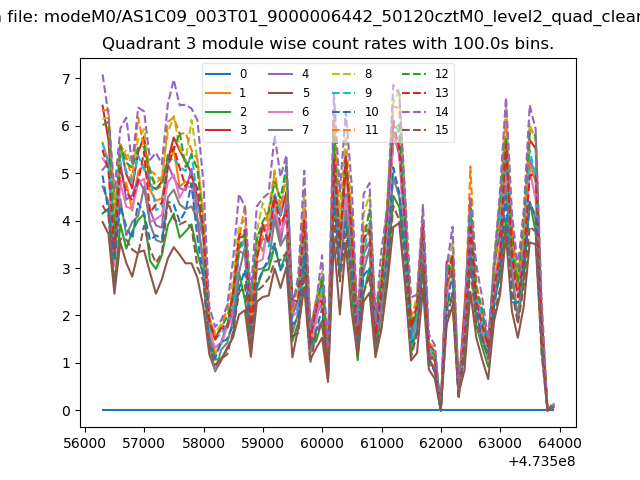

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

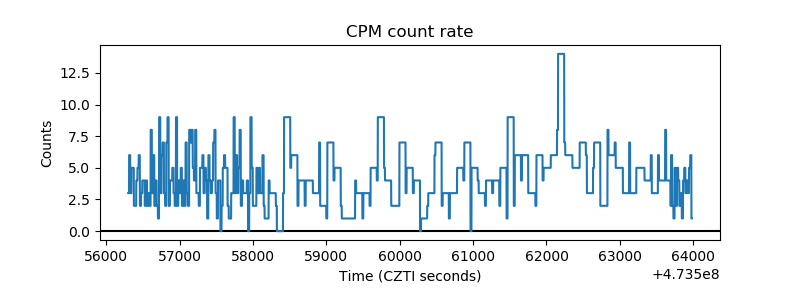

| _CPM_Rate |  |

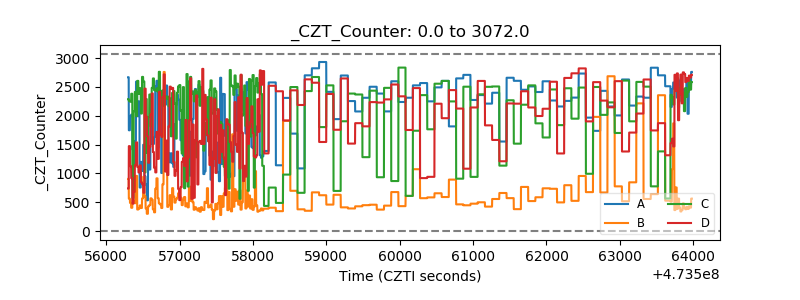

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

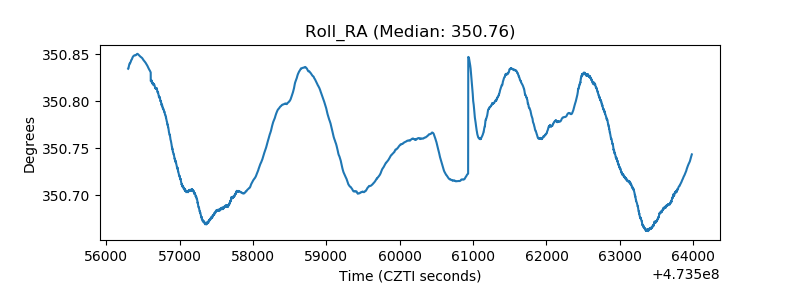

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
