| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006442_50163cztM0_level2.fits | modeM0/AS1C09_003T01_9000006442_50163cztM0_level2_quad_clean.evt |
| Size (bytes) | 7,764,042,240 | 370,560,960 |
| Size | 7.2 GB | 353.4 MB |
| Events in quadrant A | 74,076,350 | 2,225,708 |
| Events in quadrant B | 24,153,620 | 4,234,562 |
| Events in quadrant C | 86,899,553 | 1,004,584 |
| Events in quadrant D | 98,969,640 | 791,743 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 250267 | 3 |
| B | 0 | 102139 | 3 |
| C | 0 | 287619 | 11 |
| D | 0 | 323533 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 870 | 0 |
| B | 0 | 870 | 0 |
| C | 0 | 870 | 0 |
| D | 0 | 870 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 43092 | 20593 | 47.788453% |
| B | 43092 | 1023 | 2.373991% |
| C | 43091 | 32421 | 75.238449% |
| D | 43092 | 34569 | 80.221387% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 45062 | 43092 | 19888 | 19888 | 44.13% | 46.15% |  |
| B | 45062 | 43092 | 483 | 483 | 1.07% | 1.12% |  |
| C | 45062 | 43092 | 26796 | 26796 | 59.46% | 62.18% |  |
| D | 45062 | 43092 | 34337 | 34337 | 76.20% | 79.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 98 | 36503364 | 38180.72 | 3784 | 3678 | 956.0 |
| A | 6 | 250 | 6578931 | 6878.08 | 3784 | 3678 | 956.0 |
| A | 8 | 8 | 5365479 | 5608.74 | 3784 | 3678 | 956.0 |
| B | 5 | 185 | 1026770 | 1092.43 | 4442 | 4293 | 936.0 |
| B | 3 | 249 | 876729 | 932.12 | 4442 | 4293 | 936.0 |
| B | 9 | 218 | 527614 | 559.12 | 4442 | 4293 | 936.0 |
| C | 4 | 111 | 17551775 | 28290.61 | 2157 | 2143 | 620.3 |
| C | 15 | 197 | 11766986 | 18965.33 | 2157 | 2143 | 620.3 |
| C | 15 | 173 | 4644987 | 7484.42 | 2157 | 2143 | 620.3 |
| D | 15 | 142 | 13817744 | 19177.64 | 2335 | 2243 | 720.4 |
| D | 15 | 168 | 11832324 | 16421.63 | 2335 | 2243 | 720.4 |
| D | 15 | 185 | 11529477 | 16001.24 | 2335 | 2243 | 720.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

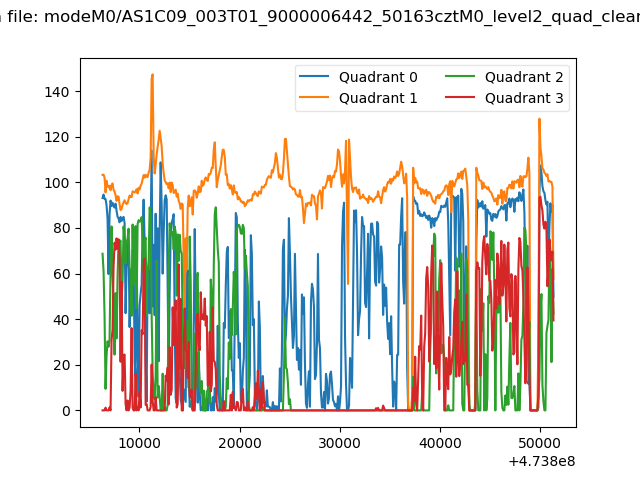

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

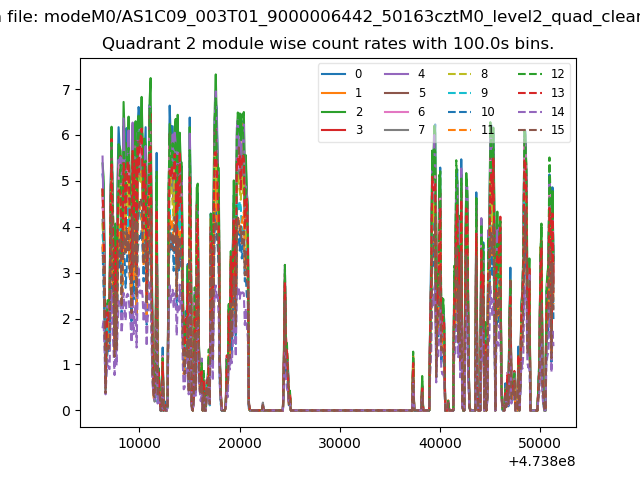

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

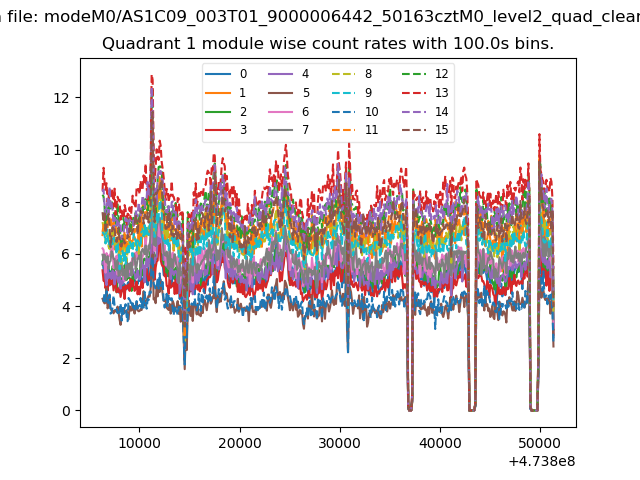

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

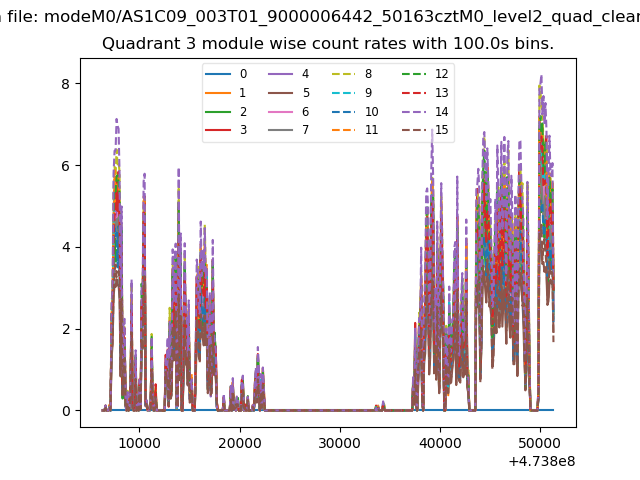

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

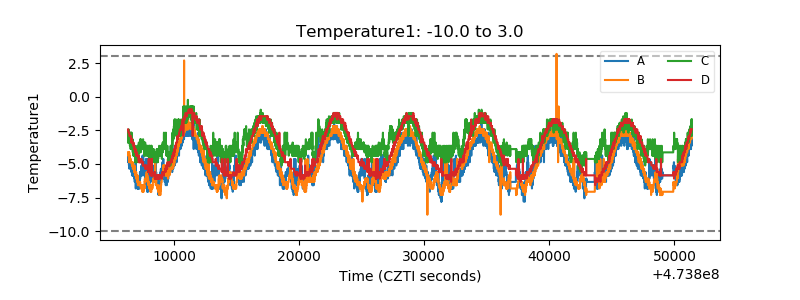

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

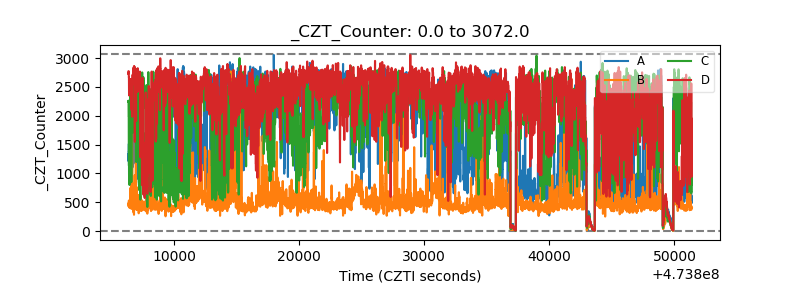

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

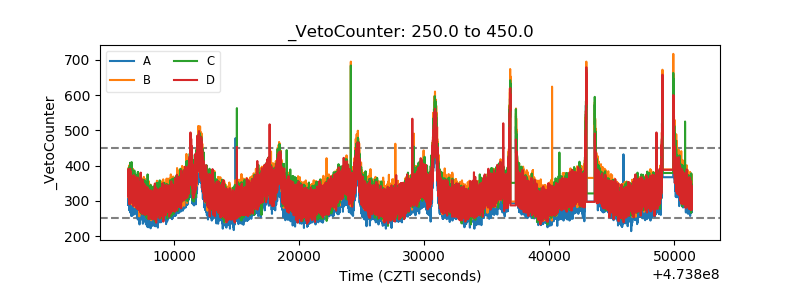

| Veto Counter |  |
