| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006442_50186cztM0_level2.fits | modeM0/AS1C09_003T01_9000006442_50186cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,078,801,920 | 62,064,000 |
| Size | 1.0 GB | 59.2 MB |
| Events in quadrant A | 9,166,125 | 489,184 |
| Events in quadrant B | 4,781,416 | 579,537 |
| Events in quadrant C | 13,899,422 | 72,826 |
| Events in quadrant D | 11,622,355 | 315,525 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31462 | 1 |
| B | 0 | 18329 | 1 |
| C | 0 | 45386 | 1 |
| D | 0 | 38691 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6038 | 1293 | 21.414376% |
| B | 6038 | 600 | 9.937065% |
| C | 6038 | 5320 | 88.108645% |
| D | 6039 | 2768 | 45.835403% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7078 | 6039 | 1241 | 1241 | 17.53% | 20.55% |  |
| B | 7078 | 6038 | 377 | 377 | 5.33% | 6.24% |  |
| C | 7078 | 6037 | 4597 | 4597 | 64.95% | 76.15% |  |
| D | 7079 | 6040 | 3008 | 3008 | 42.49% | 49.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 250 | 3712321 | 23971.55 | 601 | 583 | 154.8 |
| A | 4 | 4 | 1212914 | 7829.61 | 601 | 583 | 154.8 |
| A | 8 | 8 | 350032 | 2256.85 | 601 | 583 | 154.8 |
| B | 4 | 206 | 1297521 | 10063.36 | 606 | 588 | 128.9 |
| B | 5 | 172 | 237196 | 1835.93 | 606 | 588 | 128.9 |
| B | 5 | 185 | 195576 | 1512.98 | 606 | 588 | 128.9 |
| C | 4 | 111 | 5430492 | 77499.2 | 242 | 240 | 70.1 |
| C | 15 | 213 | 3753907 | 53571.4 | 242 | 240 | 70.1 |
| C | 15 | 230 | 1040642 | 14848.36 | 242 | 240 | 70.1 |
| D | 15 | 185 | 3401251 | 22320.89 | 527 | 508 | 152.4 |
| D | 15 | 168 | 1139820 | 7477.91 | 527 | 508 | 152.4 |
| D | 15 | 108 | 886480 | 5815.11 | 527 | 508 | 152.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

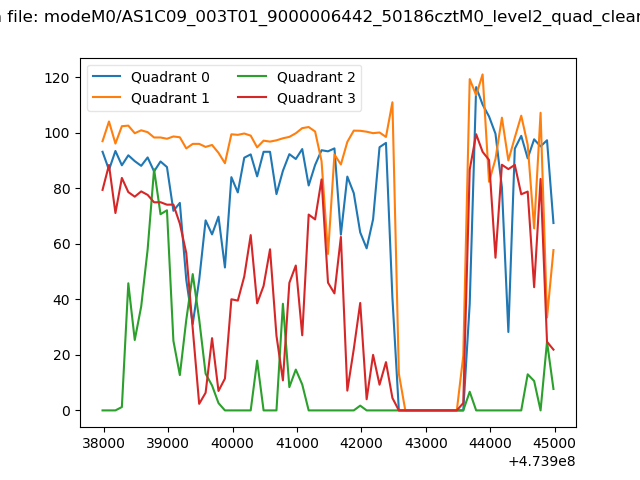

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

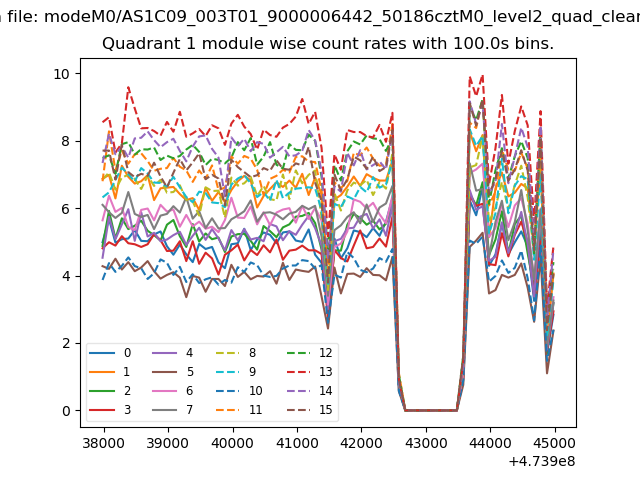

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

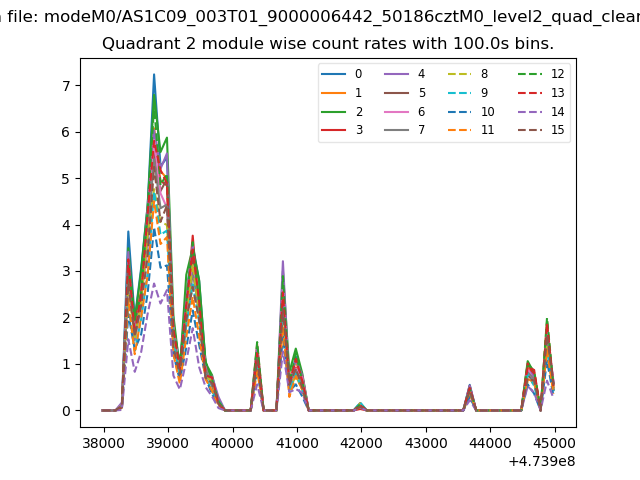

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

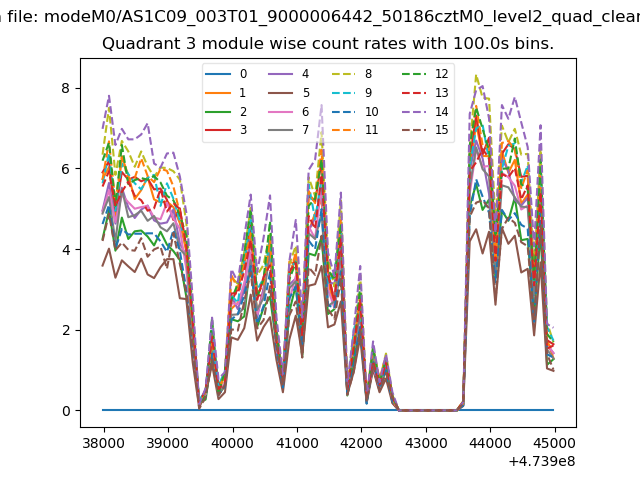

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

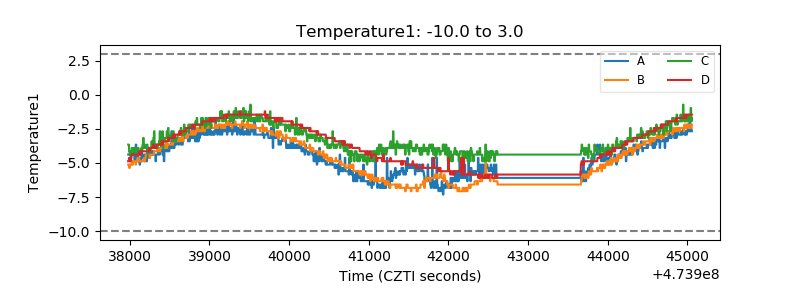

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

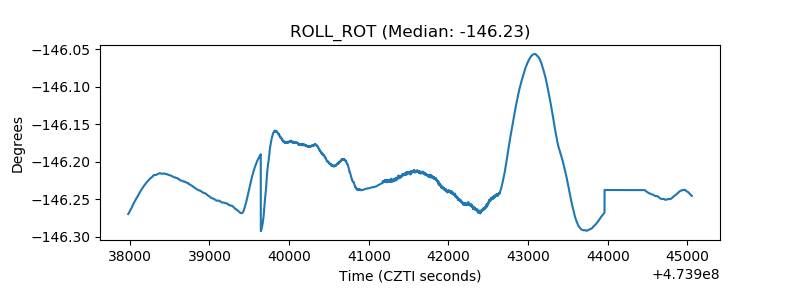

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
