| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006442_50197cztM0_level2.fits | modeM0/AS1C09_003T01_9000006442_50197cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,478,147,200 | 143,438,400 |
| Size | 3.2 GB | 136.8 MB |
| Events in quadrant A | 31,035,703 | 966,467 |
| Events in quadrant B | 15,815,887 | 1,652,001 |
| Events in quadrant C | 40,618,152 | 38,354 |
| Events in quadrant D | 39,843,391 | 394,894 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 105216 | 2 |
| B | 0 | 59888 | 2 |
| C | 0 | 133464 | 3 |
| D | 0 | 131098 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18717 | 8439 | 45.087354% |
| B | 18718 | 1936 | 10.342985% |
| C | 18717 | 18378 | 98.188812% |
| D | 18717 | 14295 | 76.374419% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19857 | 18719 | 7095 | 7095 | 35.73% | 37.90% |  |
| B | 19858 | 18721 | 1152 | 1152 | 5.80% | 6.15% |  |
| C | 19856 | 18716 | 12920 | 12920 | 65.07% | 69.03% |  |
| D | 19857 | 18717 | 12564 | 12564 | 63.27% | 67.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 98 | 15980911 | 39060.48 | 1610 | 1564 | 409.1 |
| A | 4 | 76 | 2636955 | 6442.04 | 1610 | 1564 | 409.1 |
| A | 11 | 7 | 1398341 | 3414.33 | 1610 | 1564 | 409.1 |
| B | 3 | 249 | 2464882 | 6151.37 | 1895 | 1827 | 400.4 |
| B | 4 | 206 | 2326996 | 5807.01 | 1895 | 1827 | 400.4 |
| B | 2 | 176 | 1484166 | 3702.08 | 1895 | 1827 | 400.4 |
| C | 4 | 111 | 24130614 | 145485.75 | 445 | 433 | 165.9 |
| C | 15 | 197 | 3513907 | 21183.45 | 445 | 433 | 165.9 |
| C | 15 | 213 | 2546138 | 15348.57 | 445 | 433 | 165.9 |
| D | 7 | 61 | 14805244 | 46838.7 | 1008 | 965 | 316.1 |
| D | 15 | 168 | 8202129 | 25947.35 | 1008 | 965 | 316.1 |
| D | 7 | 43 | 1541887 | 4875.26 | 1008 | 965 | 316.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

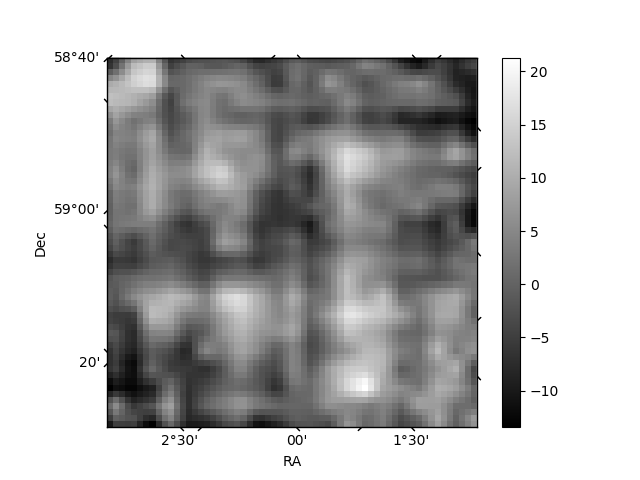

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

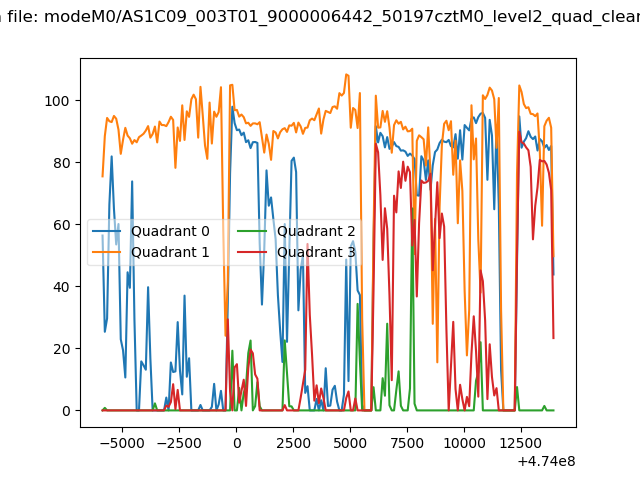

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

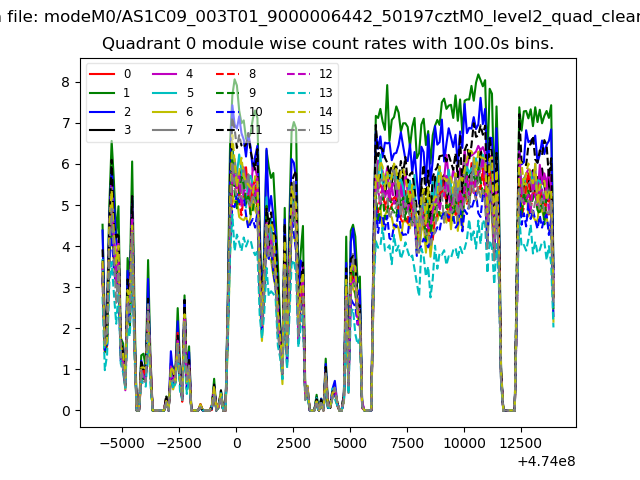

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

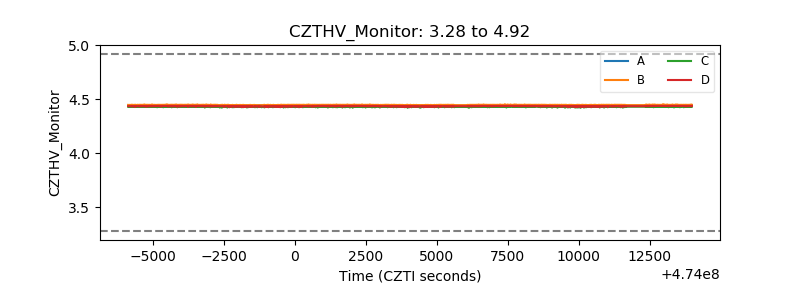

| CZT HV Monitor |  |

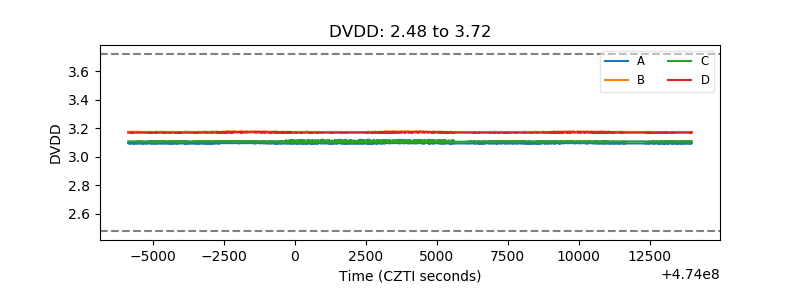

| D_VDD |  |

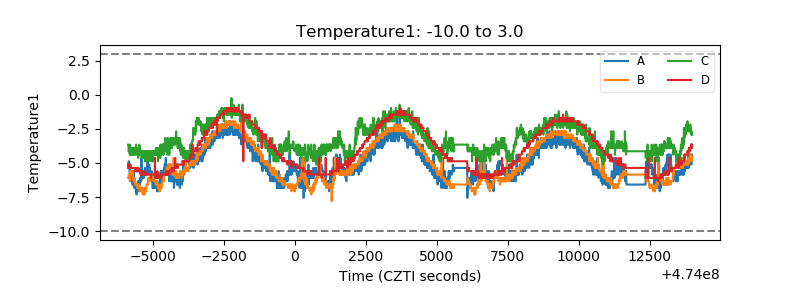

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

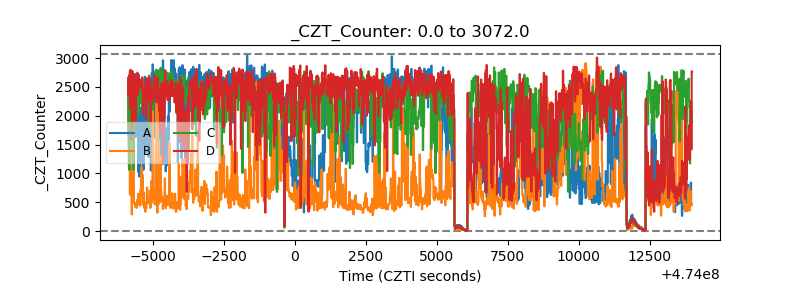

| CZT Counter |  |

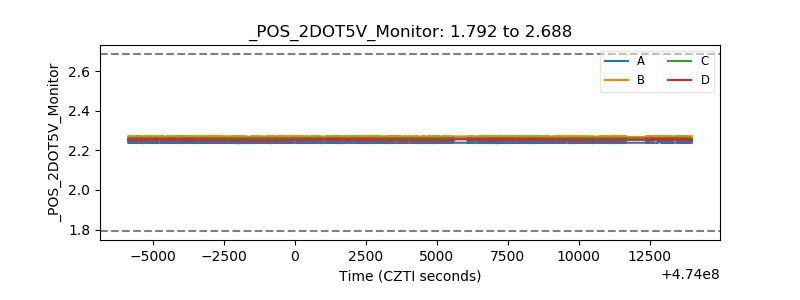

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
