| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_239T01_9000006444_50516cztM0_level2.fits | modeM0/AS1T05_239T01_9000006444_50516cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,634,909,120 | 193,613,760 |
| Size | 2.5 GB | 184.6 MB |
| Events in quadrant A | 16,453,261 | 1,519,229 |
| Events in quadrant B | 10,287,859 | 1,824,142 |
| Events in quadrant C | 32,020,727 | 813,813 |
| Events in quadrant D | 37,352,073 | 430,877 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61322 | 2 |
| B | 0 | 43305 | 2 |
| C | 0 | 107968 | 2 |
| D | 0 | 123397 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18460 | 2221 | 12.031419% |
| B | 18460 | 505 | 2.735645% |
| C | 18461 | 9911 | 53.686149% |
| D | 18461 | 13572 | 73.517144% |

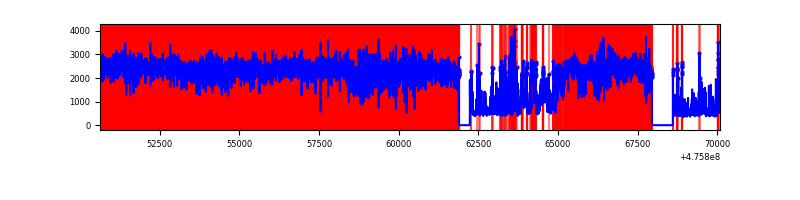

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19465 | 18462 | 1744 | 1744 | 8.96% | 9.45% |  |
| B | 19465 | 18462 | 280 | 280 | 1.44% | 1.52% |  |
| C | 19466 | 18463 | 8489 | 8489 | 43.61% | 45.98% |  |
| D | 19466 | 18463 | 12912 | 12912 | 66.33% | 69.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 250 | 2941655 | 6276.41 | 1904 | 1859 | 468.4 |
| A | 10 | 253 | 2001203 | 4268.57 | 1904 | 1859 | 468.4 |
| A | 3 | 130 | 1003085 | 2137.6 | 1904 | 1859 | 468.4 |
| B | 7 | 0 | 725707 | 1720.13 | 1969 | 1903 | 420.8 |
| B | 12 | 18 | 489805 | 1159.5 | 1969 | 1903 | 420.8 |
| B | 4 | 170 | 144314 | 338.44 | 1969 | 1903 | 420.8 |
| C | 15 | 196 | 6856887 | 16545.32 | 1488 | 1479 | 414.3 |
| C | 4 | 5 | 2468023 | 5952.93 | 1488 | 1479 | 414.3 |
| C | 15 | 127 | 2418356 | 5833.06 | 1488 | 1479 | 414.3 |
| D | 7 | 61 | 22064530 | 70249.15 | 1051 | 1011 | 314.1 |
| D | 15 | 184 | 4142722 | 13187.0 | 1051 | 1011 | 314.1 |
| D | 7 | 60 | 1349115 | 4292.3 | 1051 | 1011 | 314.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

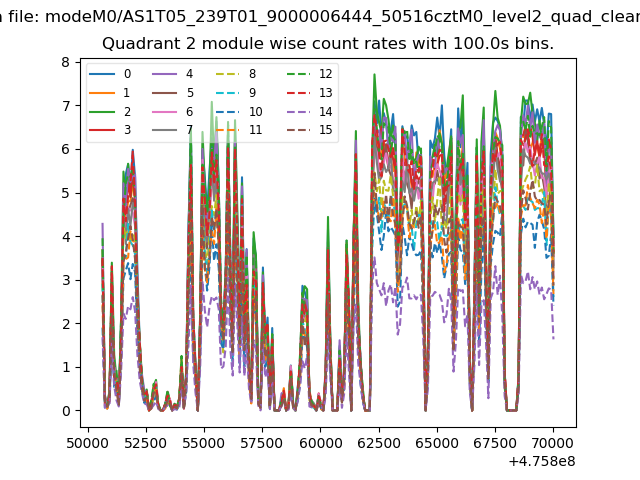

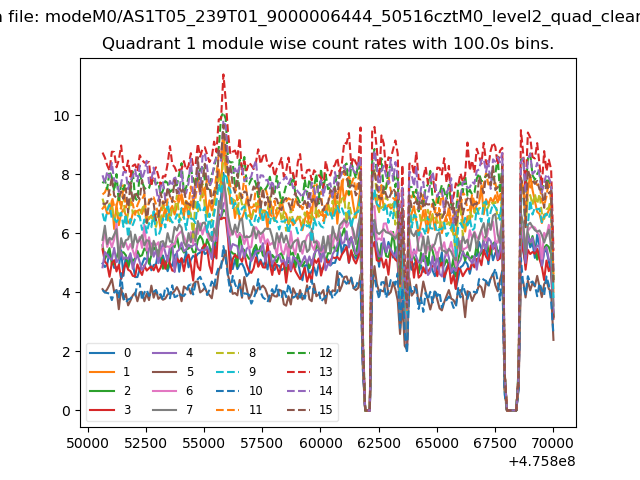

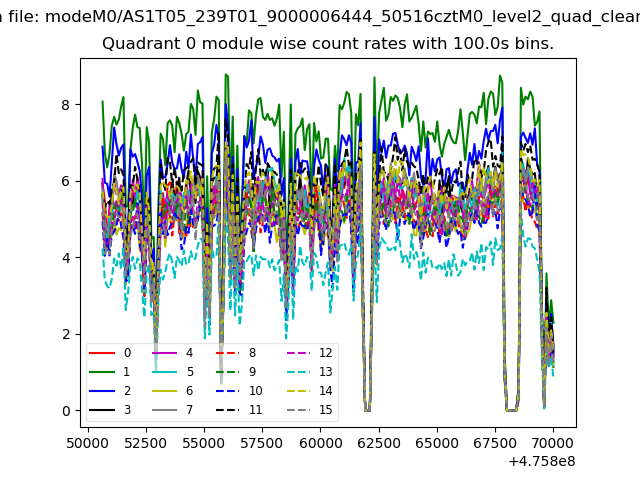

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

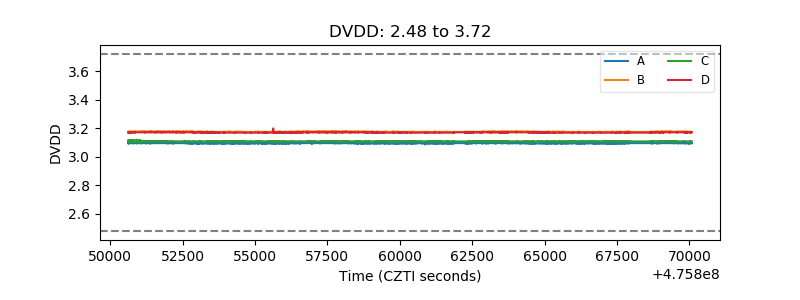

| D_VDD |  |

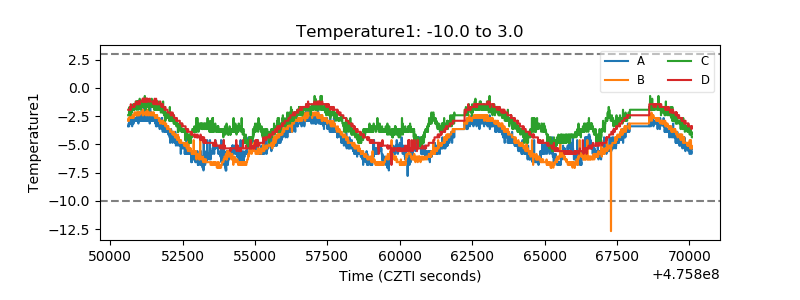

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

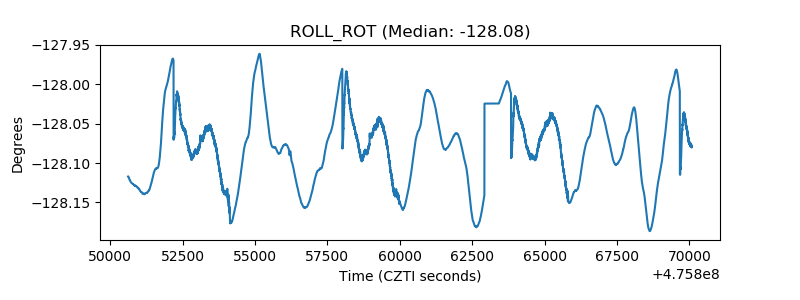

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
