| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_241T01_9000006446_50661cztM0_level2.fits | modeM0/AS1T05_241T01_9000006446_50661cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,147,492,160 | 204,327,360 |
| Size | 2.0 GB | 194.9 MB |
| Events in quadrant A | 12,801,465 | 1,525,545 |
| Events in quadrant B | 15,963,134 | 1,524,662 |
| Events in quadrant C | 32,218,645 | 724,906 |
| Events in quadrant D | 17,182,834 | 1,221,224 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49671 | 2 |
| B | 0 | 59343 | 1 |
| C | 0 | 107510 | 1 |
| D | 0 | 63096 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 348 | 0 |
| B | 0 | 348 | 0 |
| C | 0 | 348 | 0 |
| D | 0 | 348 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17238 | 905 | 5.250029% |
| B | 17239 | 2019 | 11.711816% |
| C | 17239 | 9488 | 55.037995% |
| D | 17239 | 2525 | 14.647021% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17358 | 17239 | 515 | 515 | 2.97% | 2.99% |  |
| B | 17359 | 17240 | 1332 | 1332 | 7.67% | 7.73% |  |
| C | 17359 | 17240 | 8531 | 8531 | 49.14% | 49.48% |  |
| D | 17359 | 17240 | 2073 | 2073 | 11.94% | 12.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 130 | 997976 | 2209.41 | 1817 | 1770 | 450.9 |
| A | 12 | 80 | 975820 | 2160.27 | 1817 | 1770 | 450.9 |
| A | 12 | 250 | 737747 | 1632.27 | 1817 | 1770 | 450.9 |
| B | 3 | 249 | 2052959 | 5513.43 | 1750 | 1690 | 372.0 |
| B | 4 | 170 | 1797513 | 4826.84 | 1750 | 1690 | 372.0 |
| B | 4 | 206 | 1693283 | 4546.69 | 1750 | 1690 | 372.0 |
| C | 15 | 174 | 9366019 | 25076.45 | 1345 | 1333 | 373.4 |
| C | 1 | 124 | 6496100 | 17391.47 | 1345 | 1333 | 373.4 |
| C | 15 | 1 | 3937836 | 10541.04 | 1345 | 1333 | 373.4 |
| D | 7 | 110 | 3530481 | 7579.6 | 1691 | 1634 | 465.6 |
| D | 10 | 102 | 2035633 | 4368.82 | 1691 | 1634 | 465.6 |
| D | 7 | 60 | 834820 | 1789.6 | 1691 | 1634 | 465.6 |

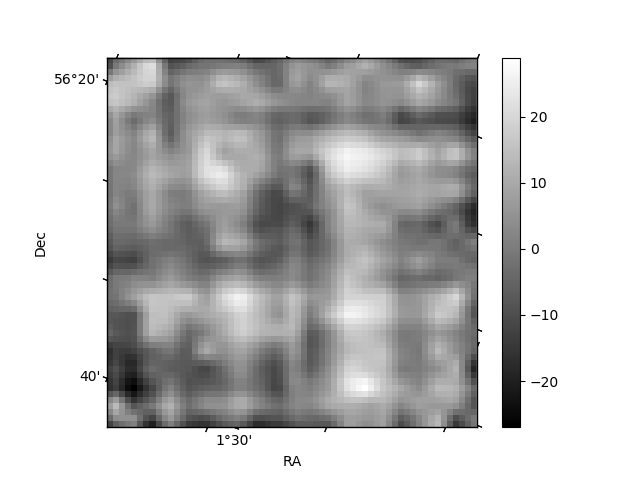

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

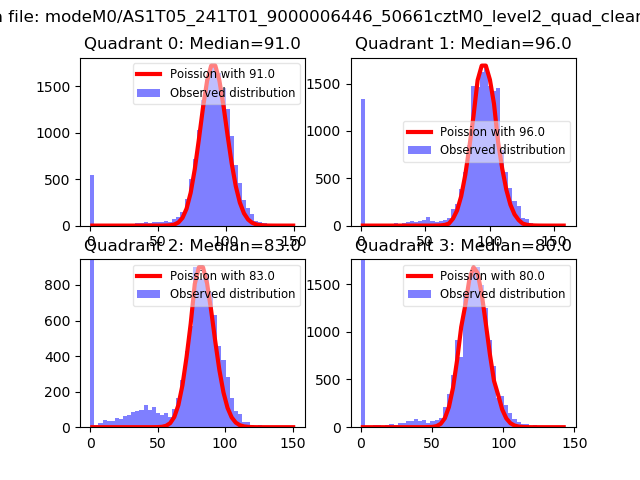

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

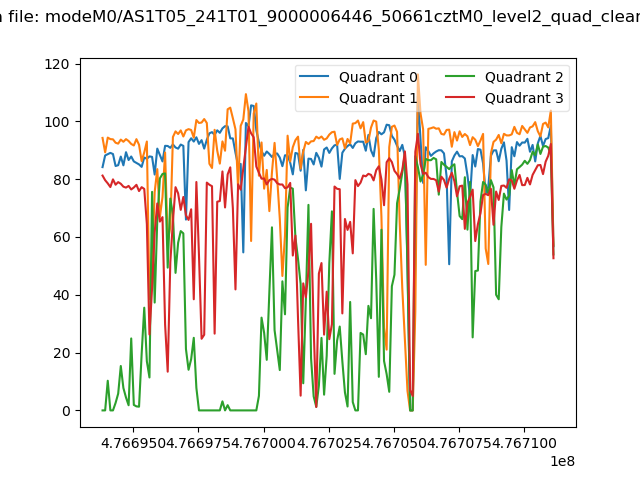

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

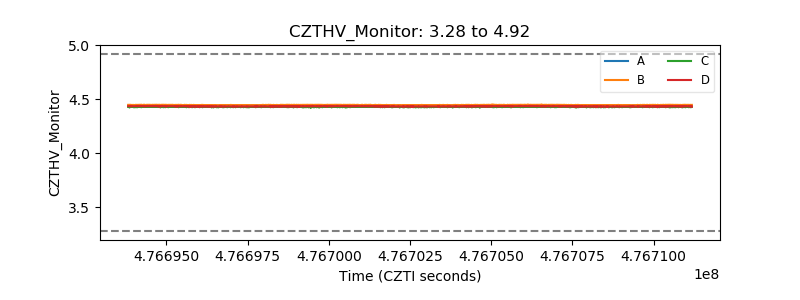

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

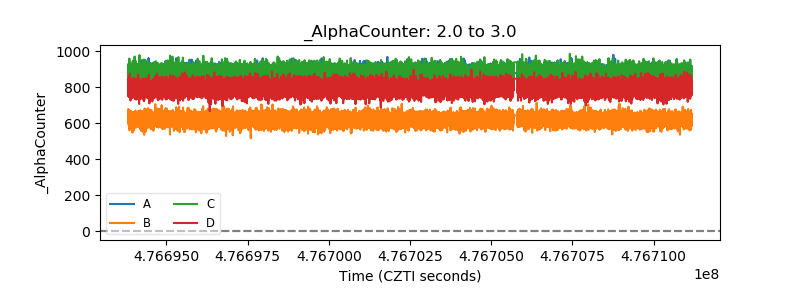

| Alpha Counter |  |

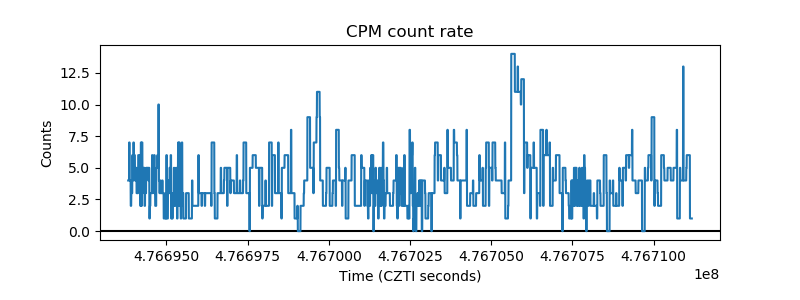

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

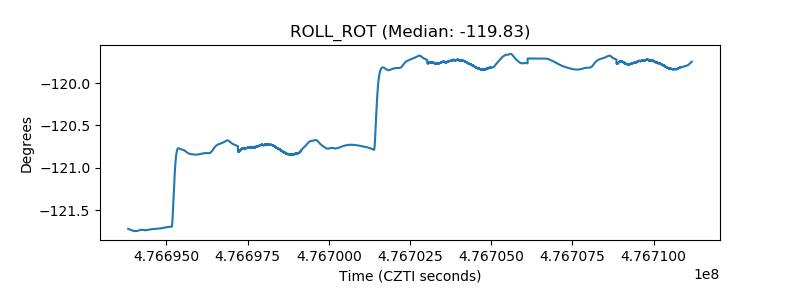

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
