| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_241T01_9000006446_50676cztM0_level2.fits | modeM0/AS1T05_241T01_9000006446_50676cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,792,540,800 | 245,833,920 |
| Size | 1.7 GB | 234.4 MB |
| Events in quadrant A | 13,701,175 | 1,639,236 |
| Events in quadrant B | 11,689,365 | 1,836,253 |
| Events in quadrant C | 19,980,762 | 1,402,647 |
| Events in quadrant D | 19,526,440 | 1,264,525 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53168 | 3 |
| B | 0 | 47919 | 3 |
| C | 0 | 72512 | 3 |
| D | 0 | 71501 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18872 | 1121 | 5.940017% |
| B | 18872 | 799 | 4.233786% |
| C | 18872 | 3439 | 18.222764% |
| D | 18871 | 3577 | 18.955010% |

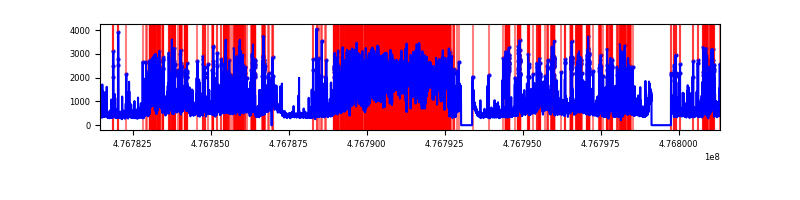

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19877 | 18874 | 689 | 689 | 3.47% | 3.65% |  |
| B | 19877 | 18874 | 334 | 334 | 1.68% | 1.77% |  |
| C | 19877 | 18872 | 2881 | 2881 | 14.49% | 15.27% |  |
| D | 19876 | 18873 | 2894 | 2894 | 14.56% | 15.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 1558217 | 3133.63 | 1998 | 1946 | 496.6 |
| A | 10 | 253 | 747144 | 1500.49 | 1998 | 1946 | 496.6 |
| A | 4 | 4 | 670311 | 1345.78 | 1998 | 1946 | 496.6 |
| B | 0 | 229 | 1374227 | 3233.48 | 2001 | 1928 | 424.4 |
| B | 3 | 249 | 527401 | 1238.15 | 2001 | 1928 | 424.4 |
| B | 8 | 128 | 286004 | 669.36 | 2001 | 1928 | 424.4 |
| C | 15 | 174 | 5117434 | 10126.23 | 1844 | 1832 | 505.2 |
| C | 1 | 44 | 3778910 | 7476.65 | 1844 | 1832 | 505.2 |
| C | 4 | 5 | 632774 | 1248.94 | 1844 | 1832 | 505.2 |
| D | 15 | 174 | 4169796 | 8491.44 | 1787 | 1729 | 490.9 |
| D | 7 | 110 | 1562786 | 3180.28 | 1787 | 1729 | 490.9 |
| D | 15 | 185 | 1371905 | 2791.41 | 1787 | 1729 | 490.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

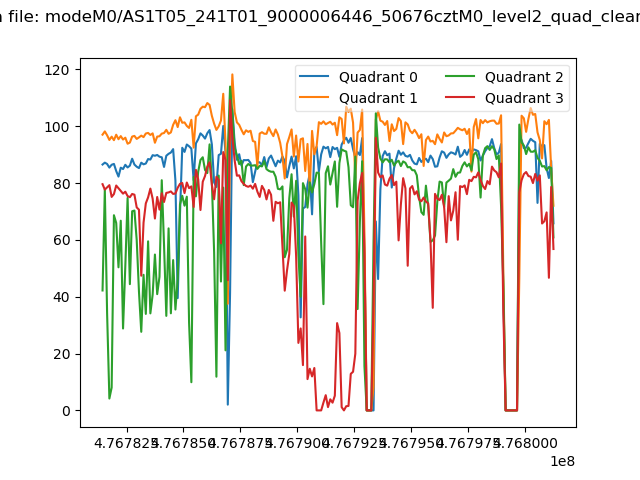

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
