| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006450_50745cztM0_level2.fits | modeM0/AS1C07_001T01_9000006450_50745cztM0_level2_quad_clean.evt |
| Size (bytes) | 677,612,160 | 99,313,920 |
| Size | 646.2 MB | 94.7 MB |
| Events in quadrant A | 5,914,864 | 649,770 |
| Events in quadrant B | 3,850,131 | 727,313 |
| Events in quadrant C | 6,870,896 | 583,603 |
| Events in quadrant D | 7,884,918 | 540,005 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 2 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 2 |
| D | 0 | 148 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23116 | 365 |
| B | 0 | 17188 | 428 |
| C | 0 | 25807 | 377 |
| D | 0 | 29211 | 757 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7273 | 304 | 4.179843% |
| B | 7273 | 76 | 1.044961% |
| C | 7273 | 844 | 11.604565% |
| D | 7247 | 910 | 12.556920% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7356 | 7316 | 274 | 274 | 3.72% | 3.75% |  |
| B | 7390 | 7305 | 62 | 62 | 0.84% | 0.85% |  |
| C | 7353 | 7301 | 833 | 833 | 11.33% | 11.41% |  |
| D | 7350 | 7274 | 979 | 979 | 13.32% | 13.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 4 | 889291 | 4844.05 | 741 | 723 | 183.4 |
| A | 9 | 191 | 809563 | 4409.41 | 741 | 723 | 183.4 |
| A | 3 | 161 | 419505 | 2283.0 | 741 | 723 | 183.4 |
| B | 10 | 247 | 388249 | 2420.29 | 752 | 726 | 160.1 |
| B | 8 | 128 | 77249 | 477.93 | 752 | 726 | 160.1 |
| B | 7 | 0 | 73086 | 451.93 | 752 | 726 | 160.1 |
| C | 15 | 254 | 1179901 | 5970.66 | 707 | 701 | 197.5 |
| C | 13 | 3 | 502624 | 2541.39 | 707 | 701 | 197.5 |
| C | 9 | 38 | 415358 | 2099.54 | 707 | 701 | 197.5 |
| D | 1 | 47 | 1497904 | 7800.08 | 689 | 664 | 192.0 |
| D | 2 | 216 | 586358 | 3051.25 | 689 | 664 | 192.0 |
| D | 8 | 176 | 549725 | 2860.41 | 689 | 664 | 192.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

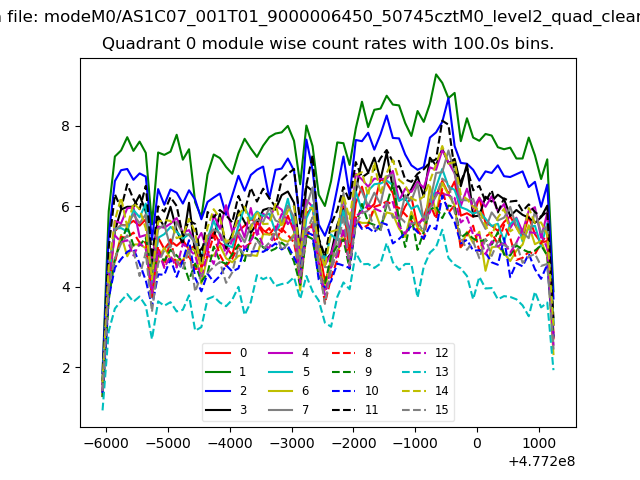

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

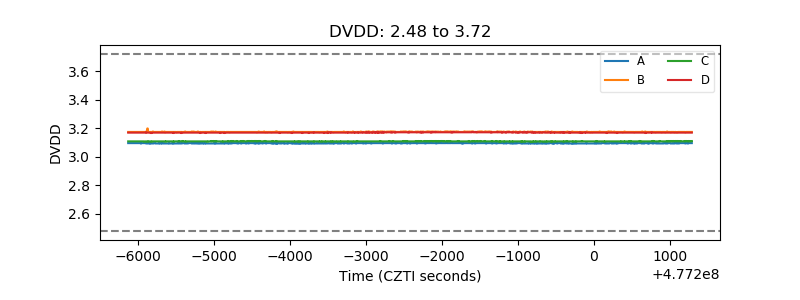

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

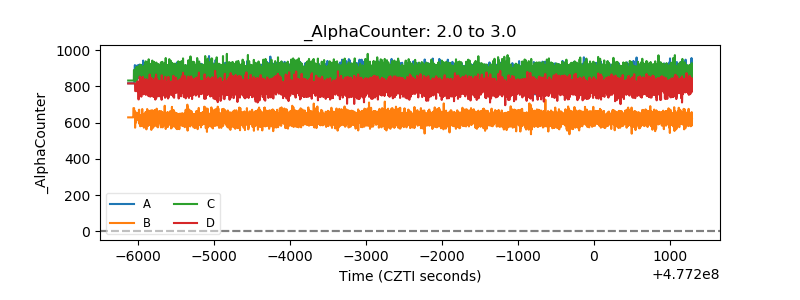

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

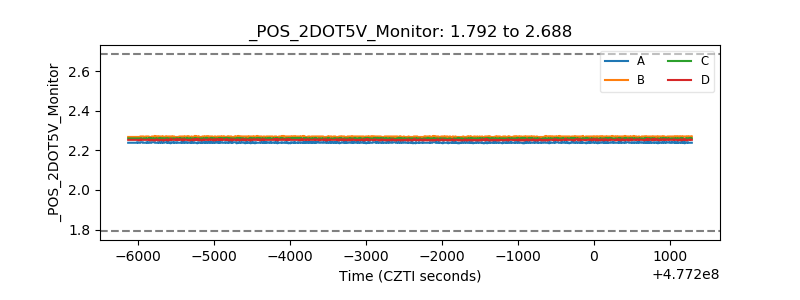

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

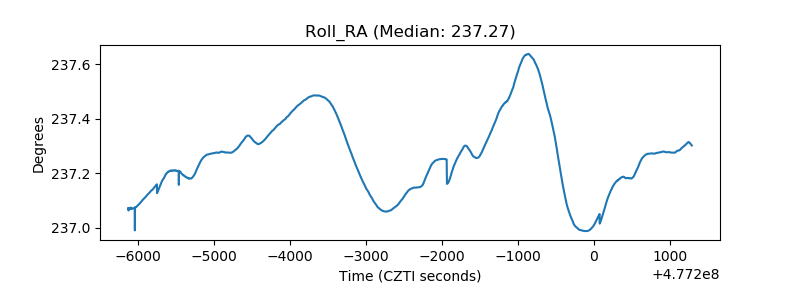

| _Roll_RA |  |
| Veto Counter |  |
