| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006450_50763cztM0_level2.fits | modeM0/AS1C07_001T01_9000006450_50763cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,911,372,480 | 243,351,360 |
| Size | 1.8 GB | 232.1 MB |
| Events in quadrant A | 19,329,663 | 1,466,454 |
| Events in quadrant B | 13,983,367 | 1,766,815 |
| Events in quadrant C | 17,291,001 | 1,469,493 |
| Events in quadrant D | 18,710,480 | 1,376,598 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70367 | 5 |
| B | 0 | 54573 | 2 |
| C | 0 | 64429 | 2 |
| D | 0 | 68556 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18684 | 2681 | 14.349176% |
| B | 18685 | 1388 | 7.428419% |
| C | 18684 | 1908 | 10.211946% |
| D | 18685 | 2114 | 11.313888% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19645 | 18687 | 2237 | 2237 | 11.39% | 11.97% |  |
| B | 19645 | 18687 | 736 | 736 | 3.75% | 3.94% |  |
| C | 19645 | 18687 | 1367 | 1367 | 6.96% | 7.32% |  |
| D | 19645 | 18687 | 1713 | 1713 | 8.72% | 9.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 7741374 | 16277.43 | 1917 | 1864 | 475.5 |
| A | 4 | 4 | 1359915 | 2856.2 | 1917 | 1864 | 475.5 |
| A | 12 | 80 | 883636 | 1854.51 | 1917 | 1864 | 475.5 |
| B | 4 | 206 | 3244906 | 7748.27 | 1939 | 1868 | 418.5 |
| B | 7 | 0 | 1032005 | 2461.2 | 1939 | 1868 | 418.5 |
| B | 3 | 249 | 716217 | 1706.72 | 1939 | 1868 | 418.5 |
| C | 12 | 247 | 1611950 | 3198.5 | 1837 | 1819 | 503.4 |
| C | 15 | 147 | 1170184 | 2320.94 | 1837 | 1819 | 503.4 |
| C | 9 | 38 | 1083703 | 2149.14 | 1837 | 1819 | 503.4 |
| D | 15 | 93 | 2160527 | 4145.74 | 1844 | 1783 | 520.7 |
| D | 2 | 216 | 1764368 | 3384.94 | 1844 | 1783 | 520.7 |
| D | 7 | 126 | 938909 | 1799.69 | 1844 | 1783 | 520.7 |

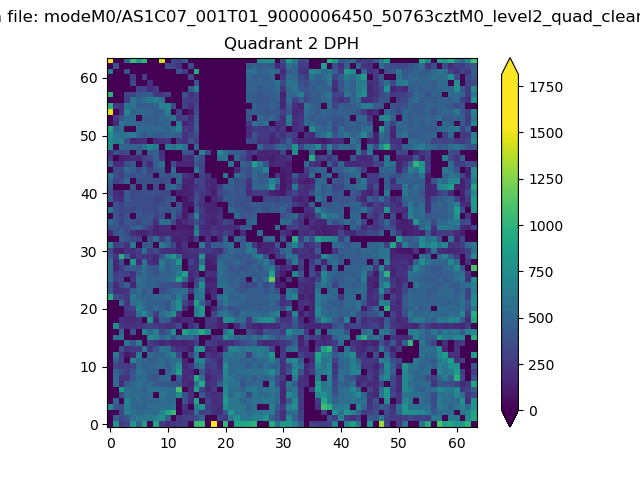

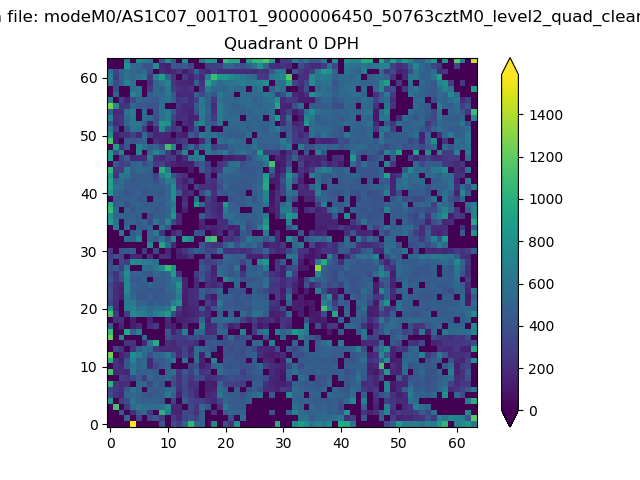

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

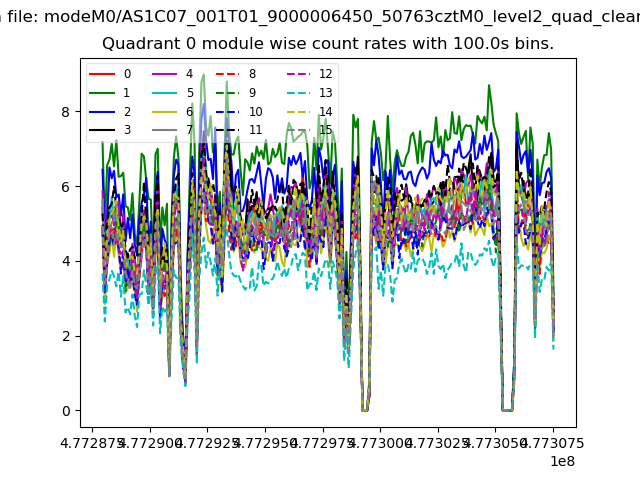

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

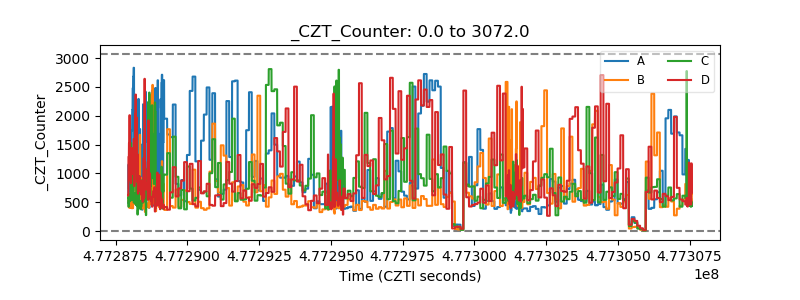

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

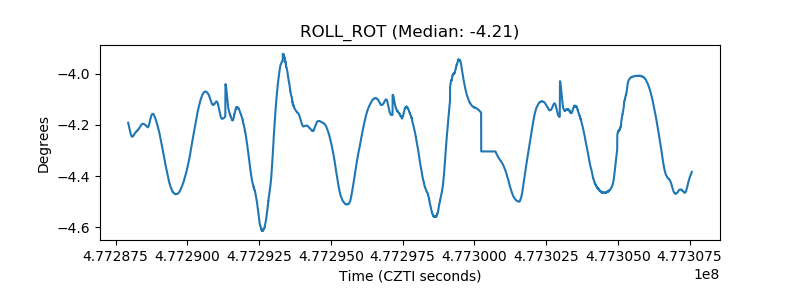

| _ROLL_ROT |  |

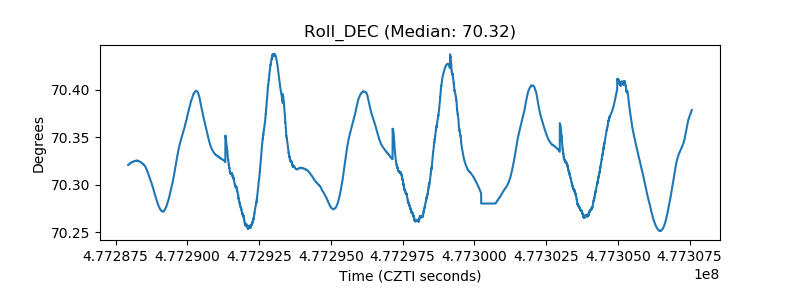

| _Roll_DEC |  |
| _Roll_RA |  |

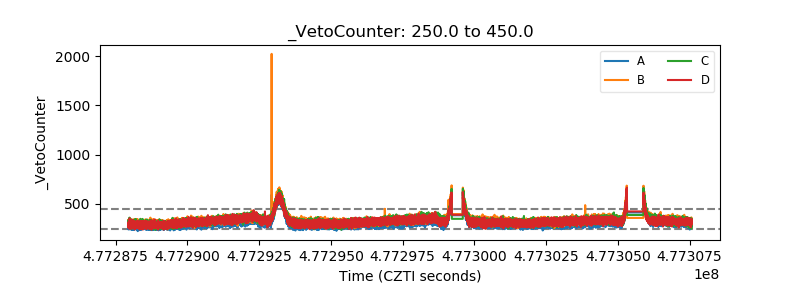

| Veto Counter |  |
