| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006450_50801cztM0_level2.fits | modeM0/AS1C07_001T01_9000006450_50801cztM0_level2_quad_clean.evt |
| Size (bytes) | 919,563,840 | 89,222,400 |
| Size | 877.0 MB | 85.1 MB |
| Events in quadrant A | 8,843,944 | 509,179 |
| Events in quadrant B | 4,143,728 | 729,322 |
| Events in quadrant C | 13,101,973 | 412,342 |
| Events in quadrant D | 7,389,793 | 545,698 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31244 | 3 |
| B | 0 | 17440 | 3 |
| C | 0 | 43985 | 3 |
| D | 0 | 27011 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7252 | 2072 | 28.571429% |
| B | 7252 | 277 | 3.819636% |
| C | 7252 | 3100 | 42.746828% |
| D | 7252 | 1016 | 14.009928% |

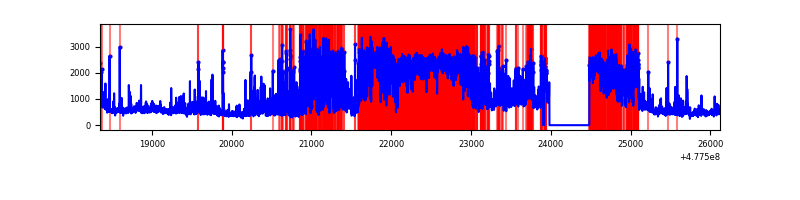

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7767 | 7254 | 1782 | 1782 | 22.94% | 24.57% |  |
| B | 7767 | 7253 | 165 | 165 | 2.12% | 2.27% |  |
| C | 7767 | 7252 | 3253 | 3253 | 41.88% | 44.86% |  |
| D | 7767 | 7254 | 928 | 928 | 11.95% | 12.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 4985881 | 30686.67 | 645 | 628 | 162.5 |
| A | 14 | 238 | 471174 | 2896.44 | 645 | 628 | 162.5 |
| A | 4 | 3 | 193781 | 1188.95 | 645 | 628 | 162.5 |
| B | 8 | 128 | 395321 | 2454.46 | 758 | 732 | 160.8 |
| B | 6 | 51 | 244860 | 1518.55 | 758 | 732 | 160.8 |
| B | 10 | 247 | 158359 | 980.49 | 758 | 732 | 160.8 |
| C | 5 | 10 | 9034432 | 49827.49 | 654 | 648 | 181.3 |
| C | 13 | 3 | 278737 | 1533.85 | 654 | 648 | 181.3 |
| C | 1 | 93 | 112668 | 617.86 | 654 | 648 | 181.3 |
| D | 2 | 249 | 1227127 | 6224.61 | 706 | 682 | 197.0 |
| D | 10 | 172 | 1054739 | 5349.68 | 706 | 682 | 197.0 |
| D | 2 | 216 | 697542 | 3536.79 | 706 | 682 | 197.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

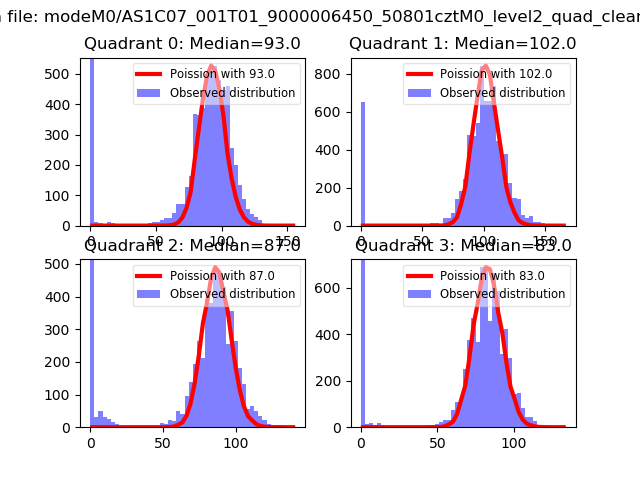

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

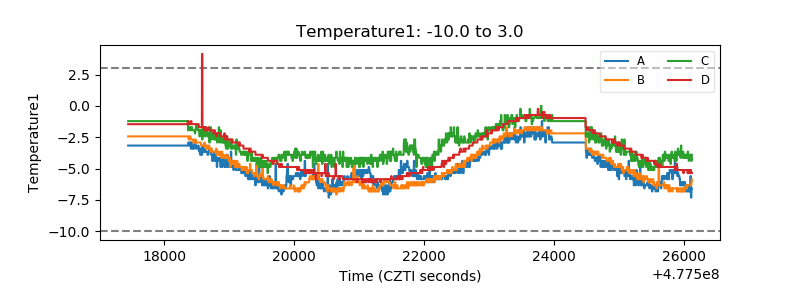

| Temperature 1 |  |

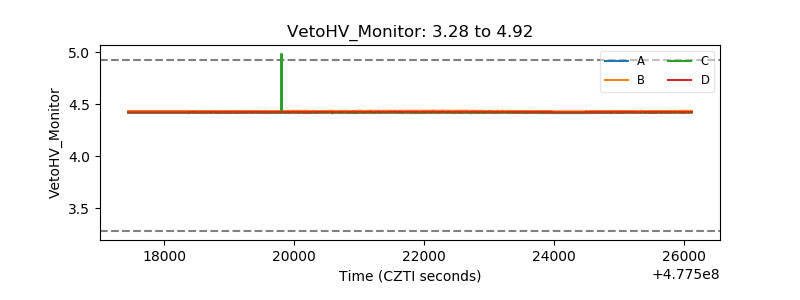

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

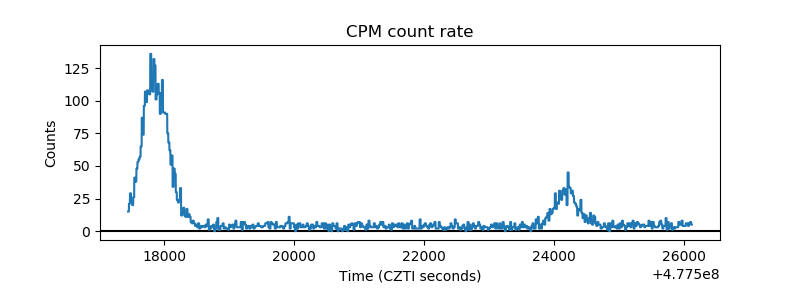

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
