| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006450_50937cztM0_level2.fits | modeM0/AS1C07_001T01_9000006450_50937cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,475,717,120 | 220,942,080 |
| Size | 2.3 GB | 210.7 MB |
| Events in quadrant A | 27,404,816 | 1,184,322 |
| Events in quadrant B | 9,953,298 | 1,935,383 |
| Events in quadrant C | 30,872,737 | 908,288 |
| Events in quadrant D | 21,887,350 | 1,297,241 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 400 | 0 |
| B | 0 | 400 | 0 |
| C | 0 | 400 | 0 |
| D | 0 | 400 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 95097 | 2 |
| B | 0 | 44319 | 2 |
| C | 0 | 105337 | 2 |
| D | 0 | 79057 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19784 | 6808 | 34.411646% |
| B | 19784 | 407 | 2.057218% |
| C | 19785 | 9480 | 47.915087% |
| D | 19785 | 3640 | 18.397776% |

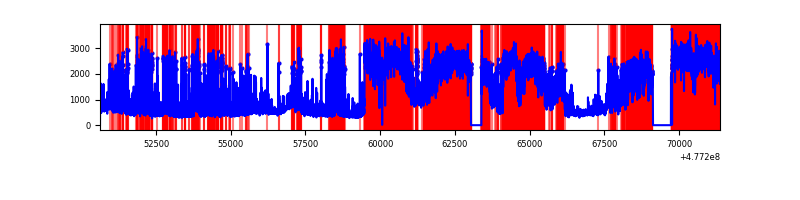

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20744 | 19786 | 6466 | 6466 | 31.17% | 32.68% |  |
| B | 20744 | 19786 | 156 | 156 | 0.75% | 0.79% |  |
| C | 20745 | 19787 | 7192 | 7192 | 34.67% | 36.35% |  |
| D | 20745 | 19787 | 3635 | 3635 | 17.52% | 18.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 43 | 13699215 | 31693.96 | 1728 | 1683 | 432.2 |
| A | 7 | 206 | 2283463 | 5279.68 | 1728 | 1683 | 432.2 |
| A | 14 | 254 | 1728706 | 3996.06 | 1728 | 1683 | 432.2 |
| B | 4 | 171 | 420509 | 951.94 | 2074 | 1998 | 439.6 |
| B | 0 | 171 | 234418 | 528.66 | 2074 | 1998 | 439.6 |
| B | 7 | 252 | 180448 | 405.9 | 2074 | 1998 | 439.6 |
| C | 4 | 210 | 14951662 | 36108.13 | 1484 | 1468 | 414.0 |
| C | 5 | 10 | 3754445 | 9064.3 | 1484 | 1468 | 414.0 |
| C | 12 | 247 | 2142551 | 5171.2 | 1484 | 1468 | 414.0 |
| D | 15 | 184 | 5026273 | 9710.33 | 1842 | 1782 | 517.4 |
| D | 8 | 176 | 3856713 | 7450.04 | 1842 | 1782 | 517.4 |
| D | 7 | 126 | 909168 | 1753.61 | 1842 | 1782 | 517.4 |

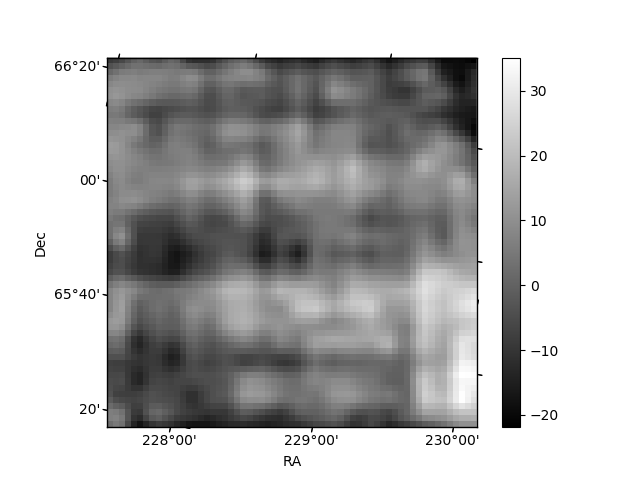

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

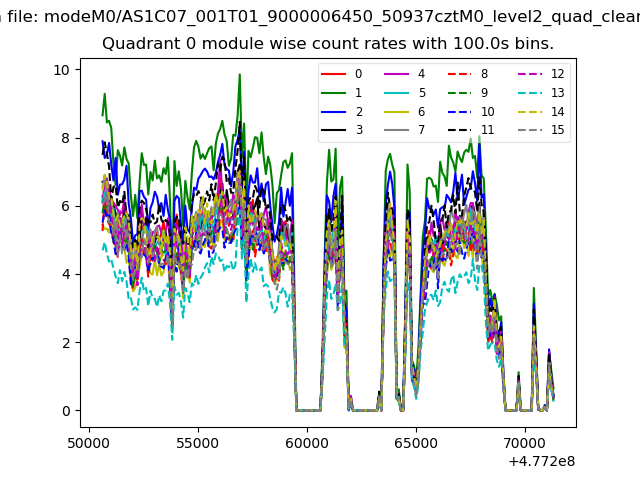

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

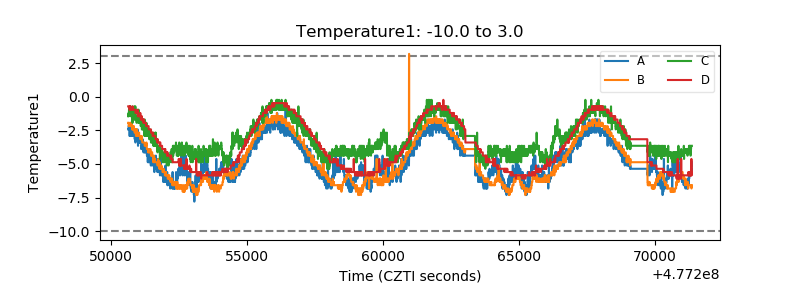

| Temperature 1 |  |
| Veto HV Monitor |  |

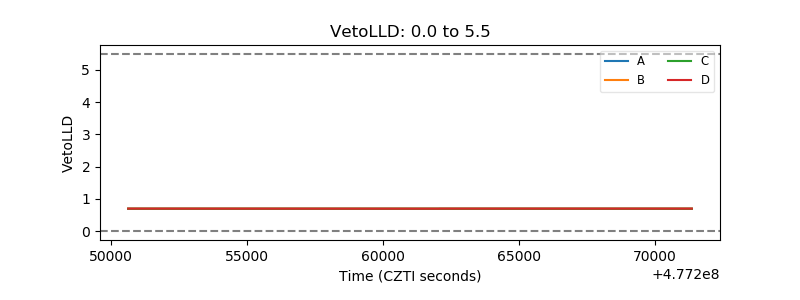

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

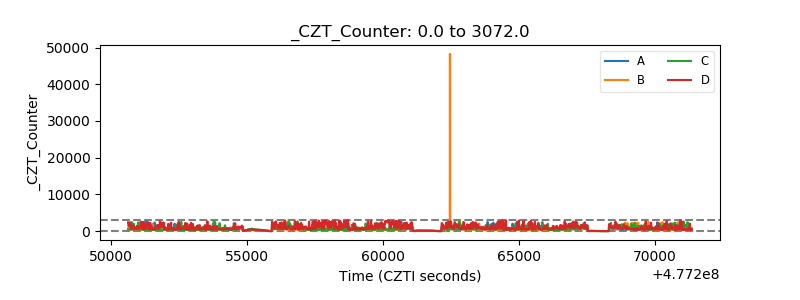

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

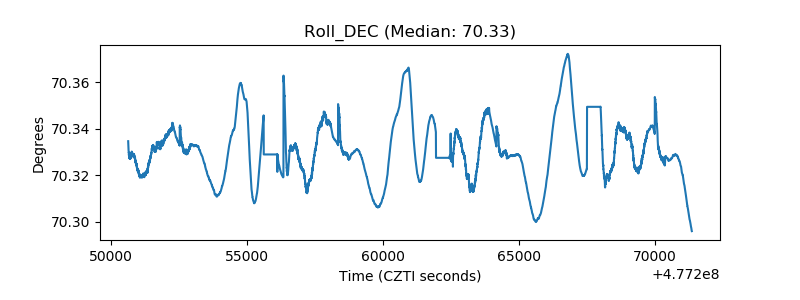

| _Roll_DEC |  |

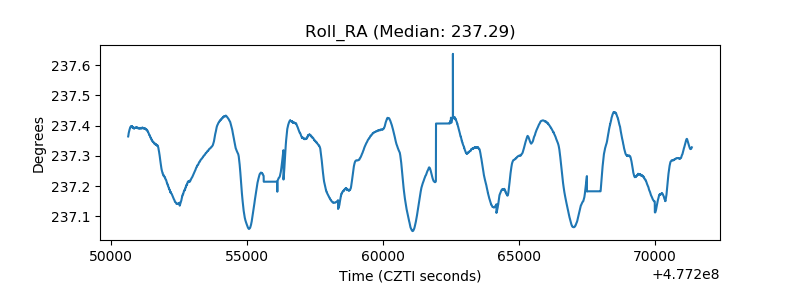

| _Roll_RA |  |
| Veto Counter |  |
