| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T02_9000006452_50975cztM0_level2.fits | modeM0/AS1C07_001T02_9000006452_50975cztM0_level2_quad_clean.evt |
| Size (bytes) | 755,248,320 | 87,249,600 |
| Size | 720.3 MB | 83.2 MB |
| Events in quadrant A | 10,608,391 | 412,046 |
| Events in quadrant B | 4,175,124 | 668,321 |
| Events in quadrant C | 5,572,598 | 579,551 |
| Events in quadrant D | 7,061,536 | 497,076 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36269 | 5 |
| B | 0 | 17538 | 1 |
| C | 0 | 21487 | 1 |
| D | 0 | 25809 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6961 | 2810 | 40.367763% |
| B | 6962 | 468 | 6.722206% |
| C | 6962 | 622 | 8.934214% |
| D | 6962 | 1191 | 17.107153% |

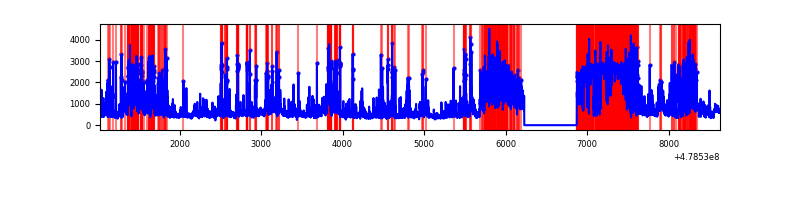

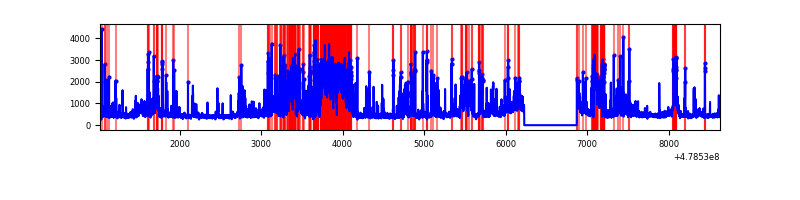

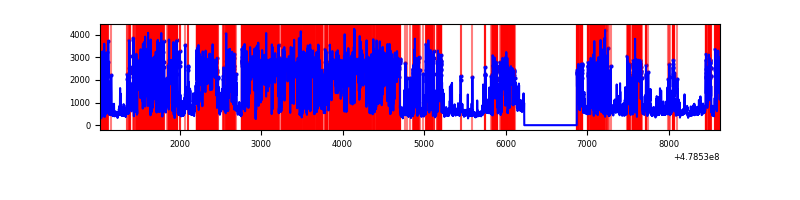

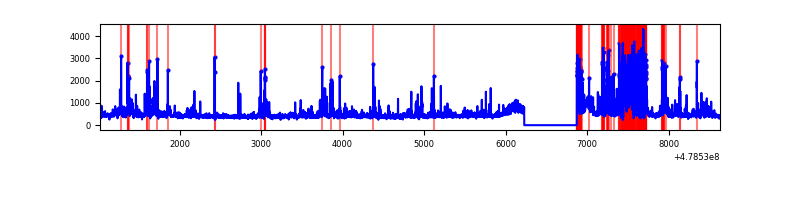

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7606 | 6961 | 2476 | 2476 | 32.55% | 35.57% |  |
| B | 7607 | 6962 | 260 | 260 | 3.42% | 3.73% |  |
| C | 7607 | 6962 | 516 | 516 | 6.78% | 7.41% |  |
| D | 7607 | 6962 | 1023 | 1023 | 13.45% | 14.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 6583269 | 44777.16 | 578 | 562 | 147.0 |
| A | 8 | 43 | 668824 | 4545.68 | 578 | 562 | 147.0 |
| A | 4 | 3 | 213399 | 1447.77 | 578 | 562 | 147.0 |
| B | 4 | 206 | 640184 | 4297.67 | 703 | 677 | 148.8 |
| B | 4 | 81 | 286065 | 1917.89 | 703 | 677 | 148.8 |
| B | 10 | 247 | 79830 | 531.93 | 703 | 677 | 148.8 |
| C | 15 | 147 | 1091800 | 5728.53 | 693 | 686 | 190.5 |
| C | 14 | 245 | 542487 | 2844.54 | 693 | 686 | 190.5 |
| C | 13 | 3 | 412898 | 2164.18 | 693 | 686 | 190.5 |
| D | 8 | 176 | 2783714 | 15391.98 | 642 | 618 | 180.8 |
| D | 10 | 181 | 753788 | 4165.42 | 642 | 618 | 180.8 |
| D | 2 | 216 | 352027 | 1943.48 | 642 | 618 | 180.8 |

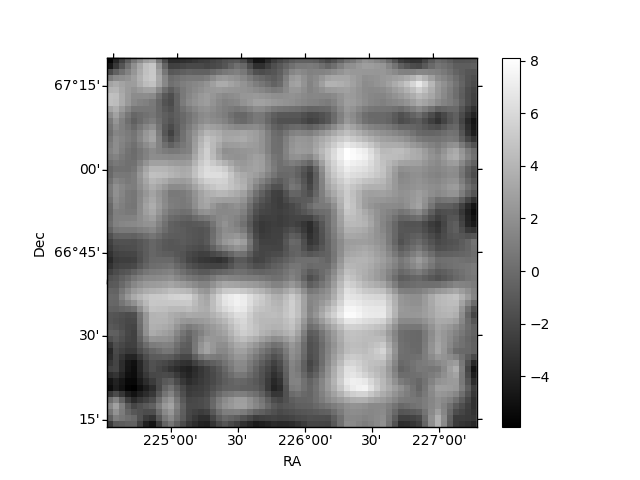

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

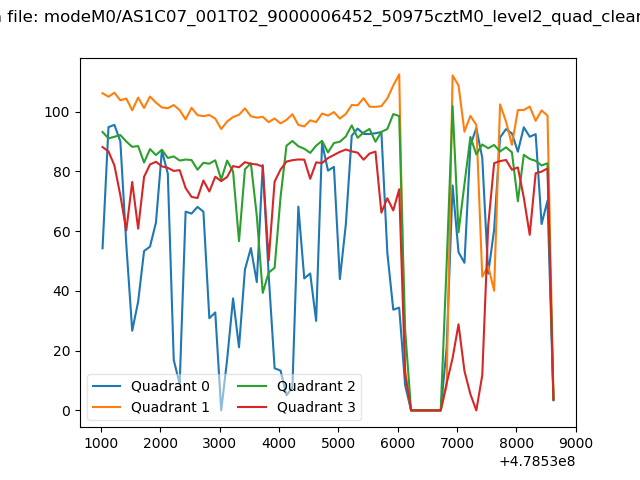

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

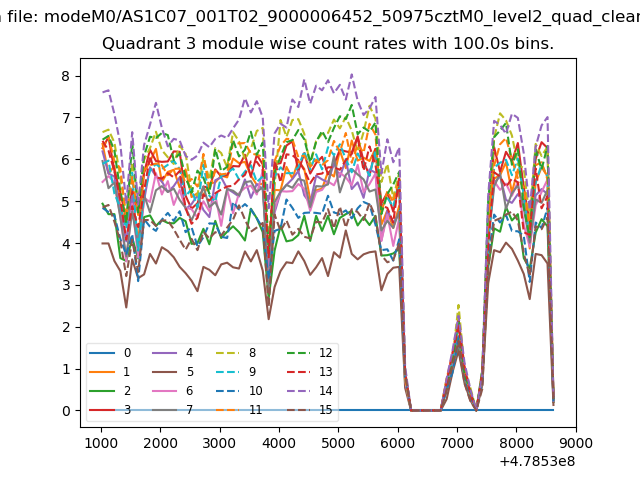

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

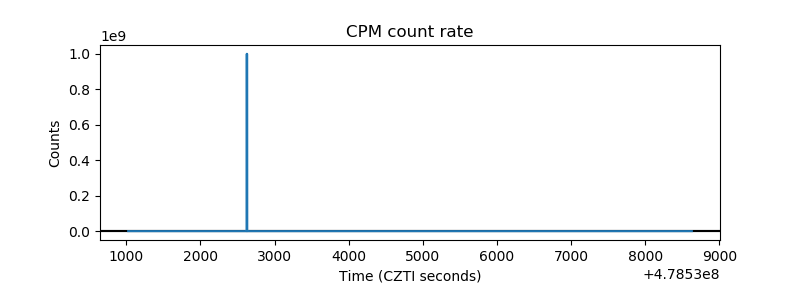

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
