| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006454_51257cztM0_level2.fits | modeM0/AS1C07_001T01_9000006454_51257cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,140,928,640 | 223,162,560 |
| Size | 2.0 GB | 212.8 MB |
| Events in quadrant A | 18,471,815 | 1,470,207 |
| Events in quadrant B | 11,163,582 | 1,810,390 |
| Events in quadrant C | 34,152,205 | 756,705 |
| Events in quadrant D | 14,008,765 | 1,419,403 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 67947 | 3 |
| B | 0 | 46305 | 3 |
| C | 0 | 114419 | 3 |
| D | 0 | 54950 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 384 | 0 |
| B | 0 | 384 | 0 |
| C | 0 | 384 | 0 |
| D | 0 | 384 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18842 | 2506 | 13.300074% |
| B | 18842 | 835 | 4.431589% |
| C | 18842 | 10858 | 57.626579% |
| D | 18842 | 1645 | 8.730496% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20082 | 18844 | 1473 | 1473 | 7.33% | 7.82% |  |
| B | 20082 | 18844 | 299 | 299 | 1.49% | 1.59% |  |
| C | 20082 | 18842 | 9156 | 9156 | 45.59% | 48.59% |  |
| D | 20082 | 18845 | 1219 | 1219 | 6.07% | 6.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 250 | 4601913 | 9616.68 | 1915 | 1862 | 478.3 |
| A | 12 | 3 | 3669354 | 7667.11 | 1915 | 1862 | 478.3 |
| A | 12 | 194 | 425419 | 885.47 | 1915 | 1862 | 478.3 |
| B | 8 | 128 | 812084 | 1946.88 | 1966 | 1897 | 416.1 |
| B | 5 | 185 | 419710 | 1004.0 | 1966 | 1897 | 416.1 |
| B | 7 | 252 | 279119 | 666.16 | 1966 | 1897 | 416.1 |
| C | 15 | 205 | 12767728 | 33958.09 | 1347 | 1332 | 375.9 |
| C | 4 | 12 | 11481027 | 30535.51 | 1347 | 1332 | 375.9 |
| C | 3 | 242 | 1215407 | 3229.39 | 1347 | 1332 | 375.9 |
| D | 7 | 60 | 1878619 | 3556.76 | 1874 | 1809 | 527.7 |
| D | 7 | 96 | 731255 | 1382.38 | 1874 | 1809 | 527.7 |
| D | 2 | 216 | 625383 | 1181.74 | 1874 | 1809 | 527.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

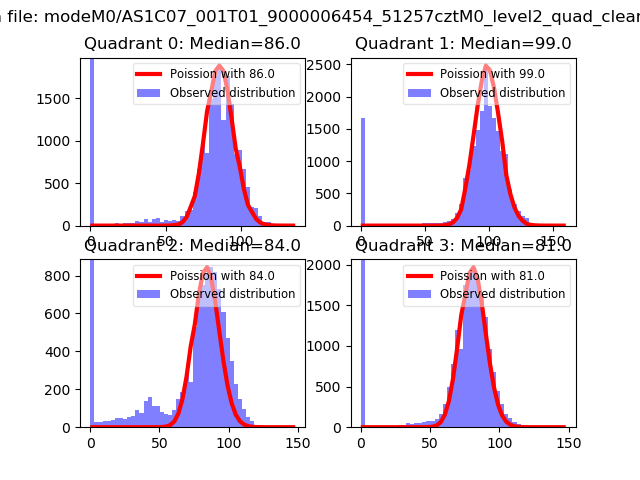

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

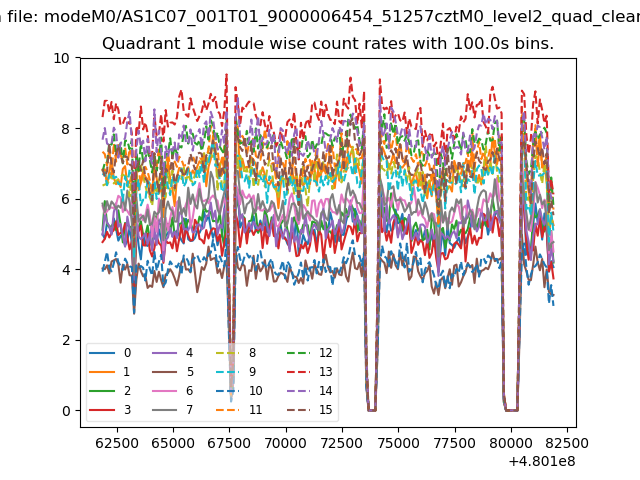

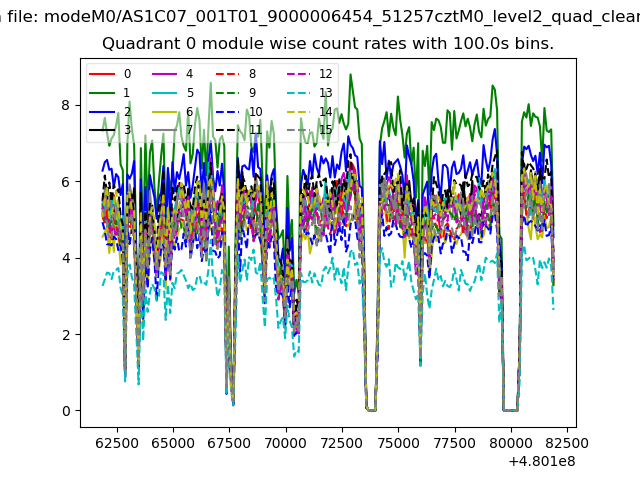

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

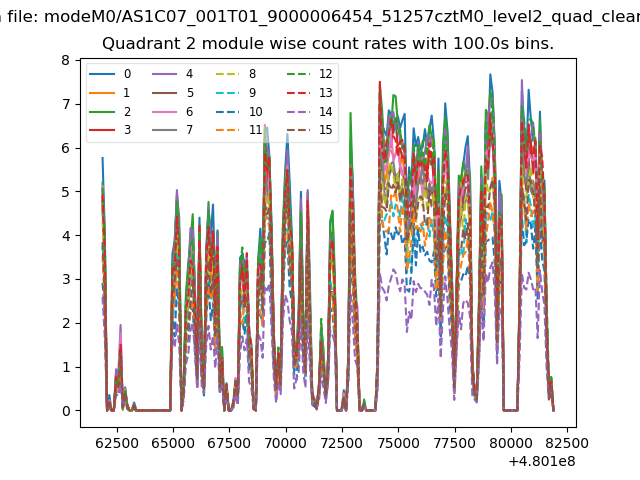

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

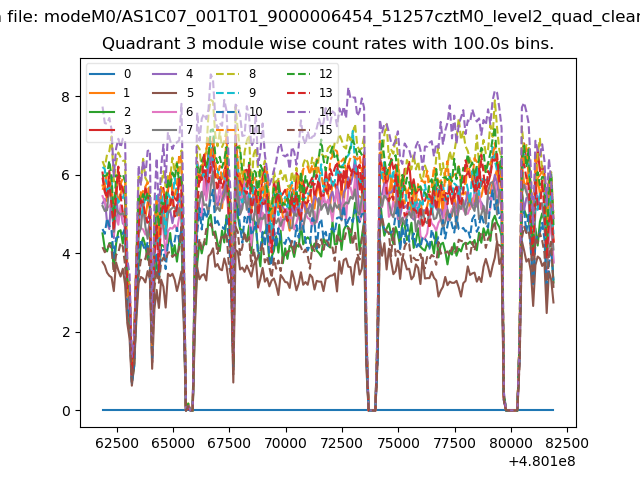

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

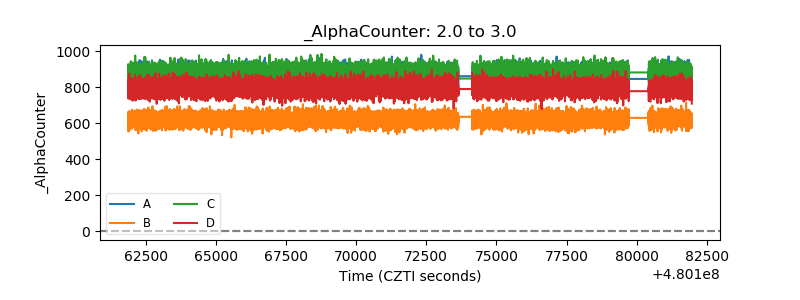

| Alpha Counter |  |

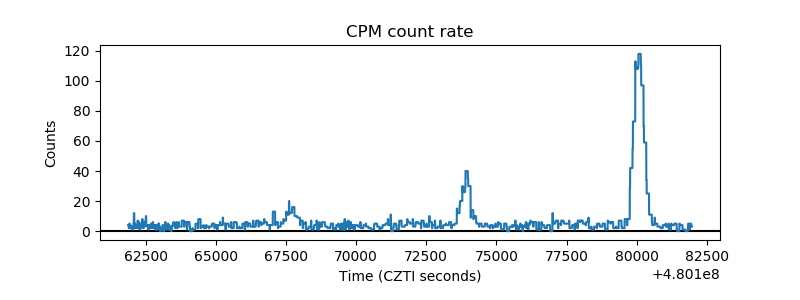

| _CPM_Rate |  |
| CZT Counter |  |

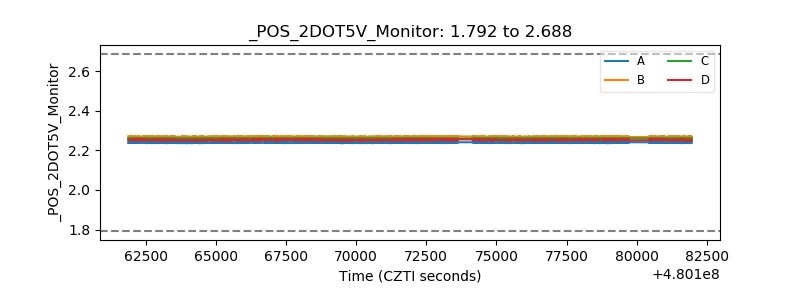

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
