| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T03_9000006456_51300cztM0_level2.fits | modeM0/AS1C07_001T03_9000006456_51300cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,460,703,680 | 224,012,160 |
| Size | 2.3 GB | 213.6 MB |
| Events in quadrant A | 15,389,044 | 1,616,138 |
| Events in quadrant B | 19,637,145 | 1,669,090 |
| Events in quadrant C | 34,676,023 | 787,967 |
| Events in quadrant D | 19,903,312 | 1,381,509 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 390 | 0 |
| B | 0 | 390 | 0 |
| C | 0 | 390 | 0 |
| D | 0 | 390 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58926 | 2 |
| B | 0 | 71645 | 2 |
| C | 0 | 116344 | 2 |
| D | 0 | 72442 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19252 | 1633 | 8.482236% |
| B | 19253 | 2777 | 14.423726% |
| C | 19253 | 10927 | 56.754791% |
| D | 19253 | 2530 | 13.140809% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

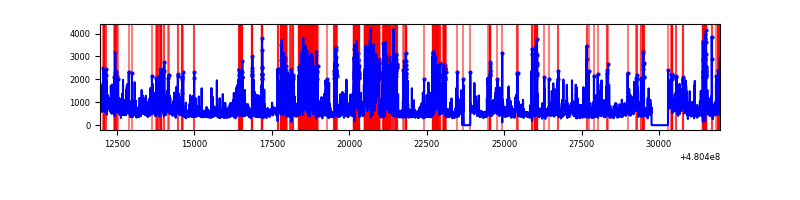

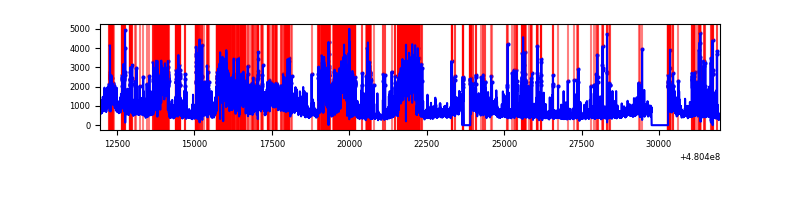

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20012 | 19255 | 998 | 998 | 4.99% | 5.18% |  |
| B | 20013 | 19256 | 1718 | 1718 | 8.58% | 8.92% |  |
| C | 20013 | 19254 | 8756 | 8756 | 43.75% | 45.48% |  |
| D | 20013 | 19256 | 2095 | 2095 | 10.47% | 10.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 250 | 3047237 | 6236.58 | 1978 | 1927 | 488.3 |
| A | 12 | 3 | 1565071 | 3201.21 | 1978 | 1927 | 488.3 |
| A | 9 | 191 | 465276 | 948.91 | 1978 | 1927 | 488.3 |
| B | 10 | 254 | 7157138 | 17402.38 | 1946 | 1876 | 411.2 |
| B | 6 | 36 | 1292222 | 3138.26 | 1946 | 1876 | 411.2 |
| B | 5 | 185 | 866138 | 2101.98 | 1946 | 1876 | 411.2 |
| C | 15 | 198 | 11161681 | 31704.28 | 1277 | 1269 | 352.0 |
| C | 4 | 12 | 10017716 | 28454.53 | 1277 | 1269 | 352.0 |
| C | 15 | 179 | 2935082 | 8334.32 | 1277 | 1269 | 352.0 |
| D | 8 | 176 | 4492300 | 8577.5 | 1860 | 1794 | 523.5 |
| D | 7 | 60 | 4040221 | 7713.97 | 1860 | 1794 | 523.5 |
| D | 10 | 181 | 604834 | 1151.89 | 1860 | 1794 | 523.5 |

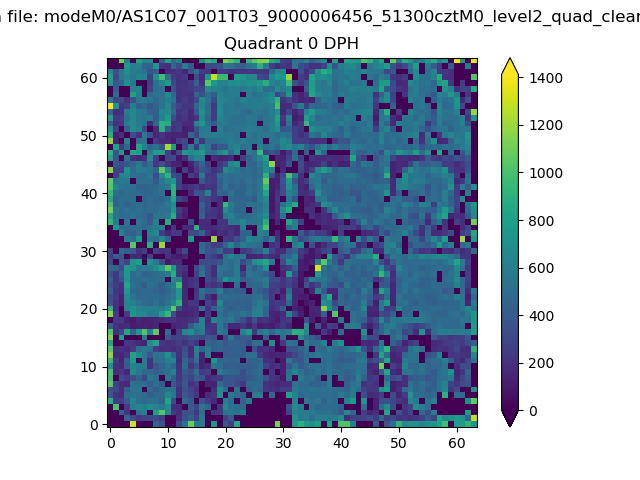

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

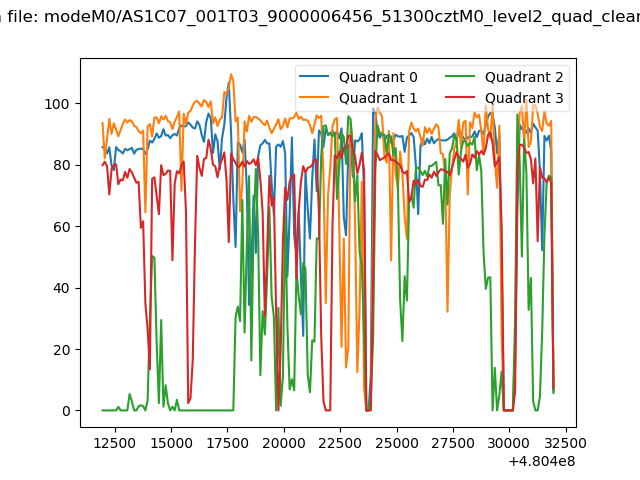

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

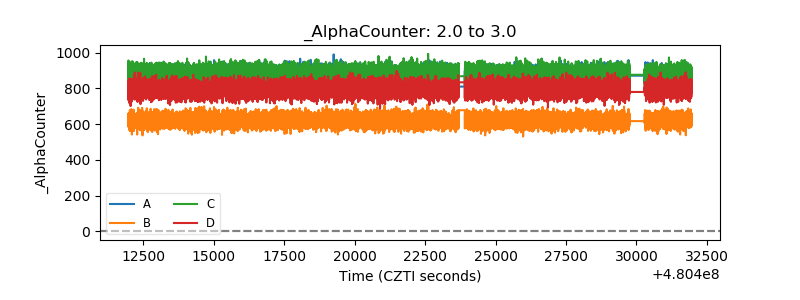

| Alpha Counter |  |

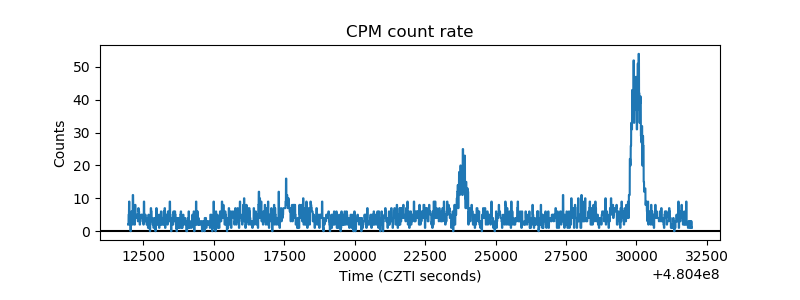

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
