| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T03_9000006456_51315cztM0_level2.fits | modeM0/AS1C07_001T03_9000006456_51315cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,210,319,360 | 228,934,080 |
| Size | 2.1 GB | 218.3 MB |
| Events in quadrant A | 19,727,952 | 1,512,695 |
| Events in quadrant B | 11,163,617 | 1,805,166 |
| Events in quadrant C | 30,503,476 | 963,701 |
| Events in quadrant D | 18,971,820 | 1,348,851 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 71950 | 3 |
| B | 0 | 46601 | 3 |
| C | 0 | 103530 | 3 |
| D | 0 | 69450 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18859 | 2419 | 12.826767% |
| B | 18859 | 885 | 4.692720% |
| C | 18859 | 8276 | 43.883557% |
| D | 18858 | 2598 | 13.776647% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19909 | 18861 | 1290 | 1290 | 6.48% | 6.84% |  |
| B | 19909 | 18861 | 380 | 380 | 1.91% | 2.01% |  |
| C | 19909 | 18860 | 7005 | 7005 | 35.19% | 37.14% |  |
| D | 19908 | 18861 | 2333 | 2333 | 11.72% | 12.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 5481670 | 11841.37 | 1880 | 1830 | 462.8 |
| A | 12 | 250 | 2366917 | 5110.71 | 1880 | 1830 | 462.8 |
| A | 8 | 249 | 786004 | 1694.52 | 1880 | 1830 | 462.8 |
| B | 5 | 172 | 1126255 | 2731.01 | 1946 | 1876 | 411.7 |
| B | 5 | 185 | 619552 | 1500.27 | 1946 | 1876 | 411.7 |
| B | 10 | 247 | 398810 | 964.11 | 1946 | 1876 | 411.7 |
| C | 4 | 12 | 13660702 | 33025.97 | 1506 | 1493 | 413.6 |
| C | 13 | 49 | 4681892 | 11316.52 | 1506 | 1493 | 413.6 |
| C | 15 | 179 | 2255132 | 5448.97 | 1506 | 1493 | 413.6 |
| D | 6 | 42 | 2707697 | 5368.97 | 1826 | 1765 | 504.0 |
| D | 7 | 80 | 1547469 | 3066.91 | 1826 | 1765 | 504.0 |
| D | 8 | 176 | 1485374 | 2943.7 | 1826 | 1765 | 504.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

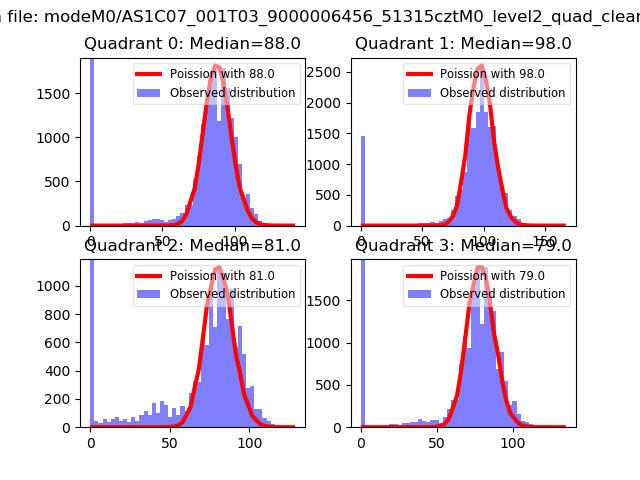

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

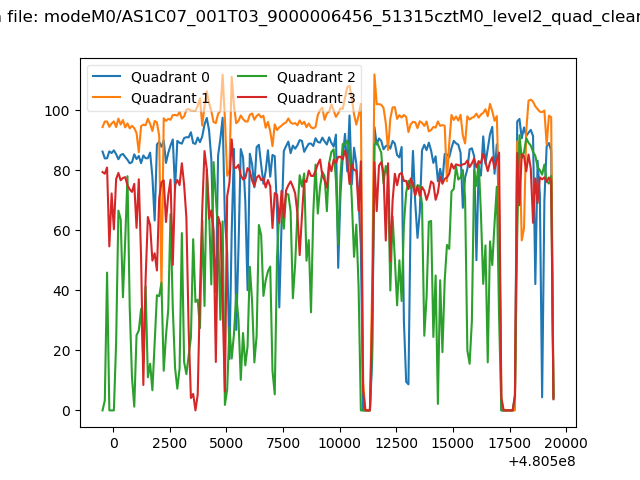

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

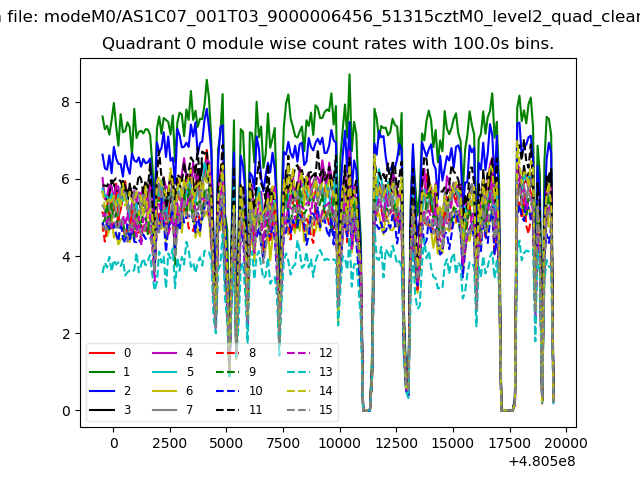

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

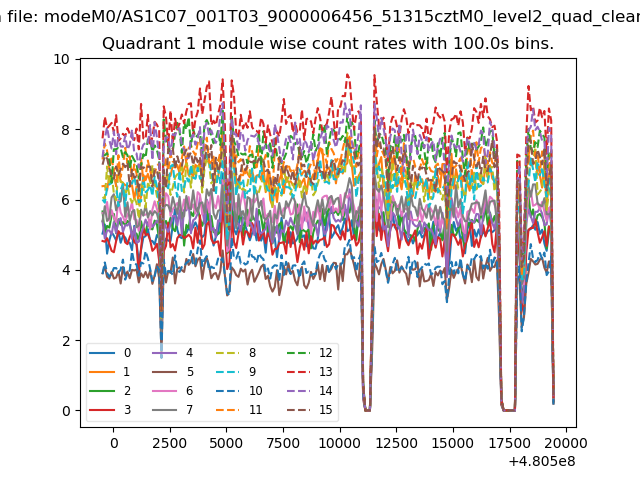

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

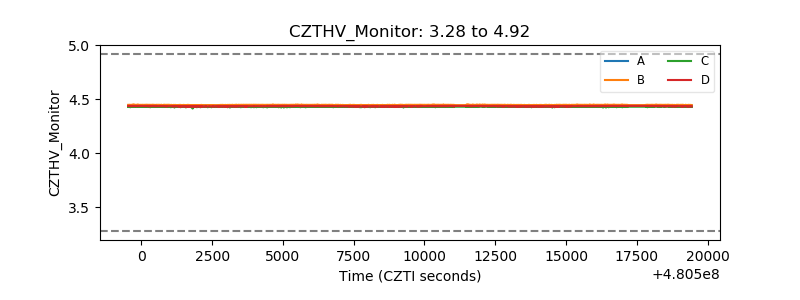

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

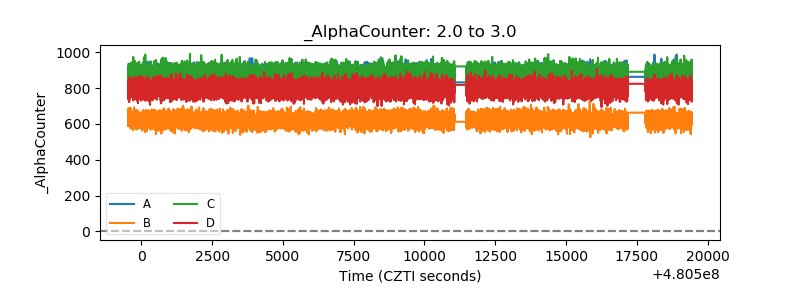

| Alpha Counter |  |

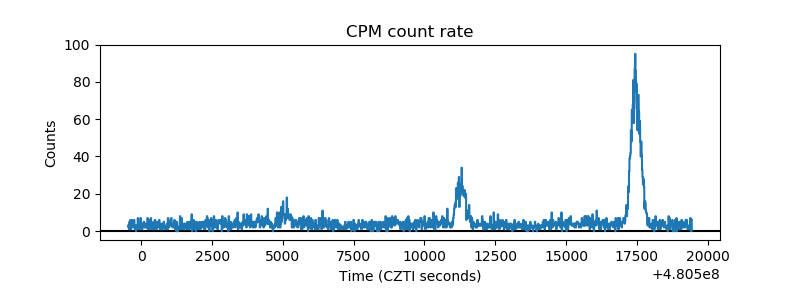

| _CPM_Rate |  |
| CZT Counter |  |

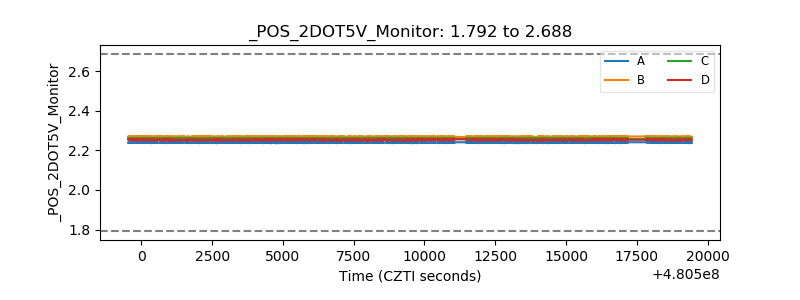

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
