| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_090T01_9000006458_51451cztM0_level2.fits | modeM0/AS1A13_090T01_9000006458_51451cztM0_level2_quad_clean.evt |
| Size (bytes) | 613,572,480 | 91,915,200 |
| Size | 585.1 MB | 87.7 MB |
| Events in quadrant A | 4,979,364 | 608,021 |
| Events in quadrant B | 3,962,641 | 690,117 |
| Events in quadrant C | 8,272,874 | 465,012 |
| Events in quadrant D | 4,992,025 | 564,996 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19212 | 2 |
| B | 0 | 16166 | 2 |
| C | 0 | 29023 | 2 |
| D | 0 | 19394 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6518 | 564 | 8.652961% |
| B | 6517 | 264 | 4.050944% |
| C | 6517 | 1898 | 29.123830% |
| D | 6517 | 360 | 5.524014% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7662 | 6518 | 279 | 279 | 3.64% | 4.28% |  |
| B | 7661 | 6517 | 107 | 107 | 1.40% | 1.64% |  |
| C | 7661 | 6517 | 1887 | 1887 | 24.63% | 28.96% |  |
| D | 7661 | 6517 | 321 | 321 | 4.19% | 4.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 451731 | 2596.46 | 715 | 699 | 173.7 |
| A | 15 | 174 | 314477 | 1806.33 | 715 | 699 | 173.7 |
| A | 8 | 63 | 189807 | 1088.64 | 715 | 699 | 173.7 |
| B | 5 | 185 | 465059 | 3018.96 | 724 | 701 | 153.8 |
| B | 7 | 252 | 96711 | 624.2 | 724 | 701 | 153.8 |
| B | 15 | 52 | 91191 | 588.31 | 724 | 701 | 153.8 |
| C | 4 | 12 | 4633232 | 28852.78 | 576 | 570 | 160.6 |
| C | 13 | 3 | 426708 | 2654.04 | 576 | 570 | 160.6 |
| C | 3 | 233 | 285691 | 1775.77 | 576 | 570 | 160.6 |
| D | 8 | 176 | 1652909 | 8540.03 | 698 | 676 | 193.5 |
| D | 11 | 176 | 157127 | 808.66 | 698 | 676 | 193.5 |
| D | 10 | 181 | 76587 | 392.37 | 698 | 676 | 193.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

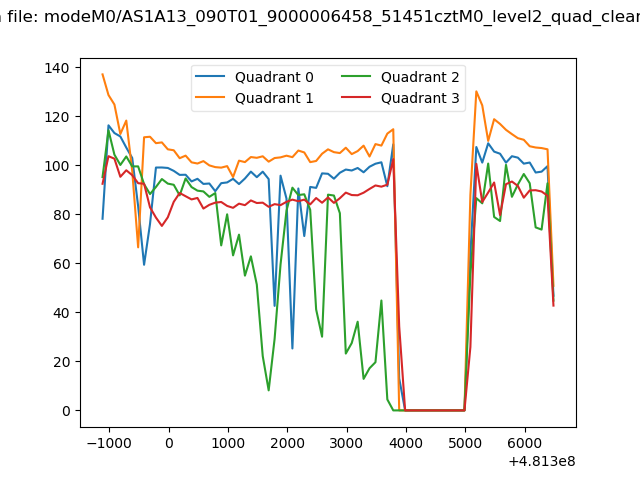

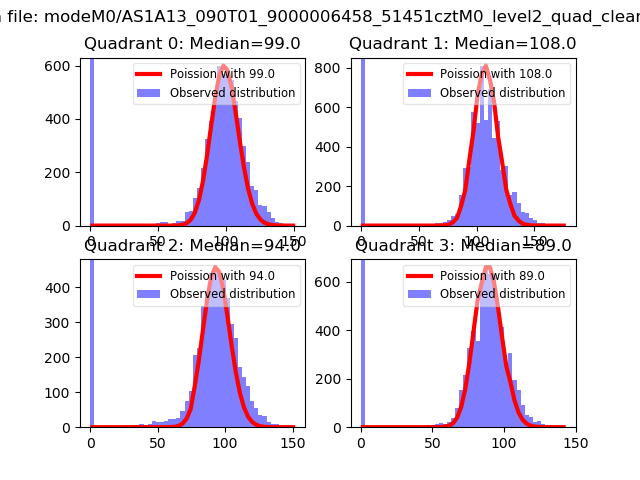

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

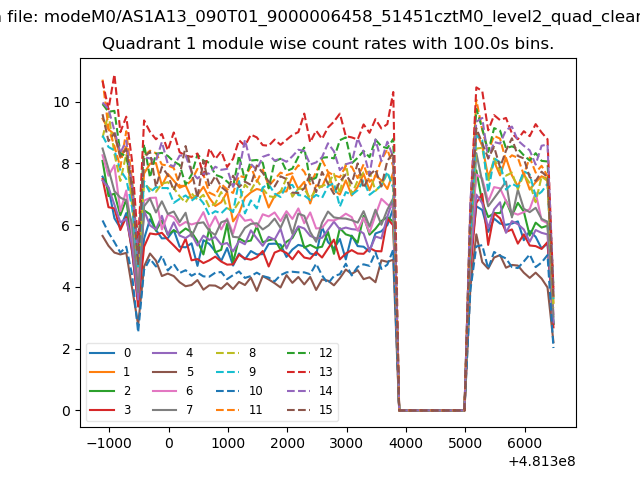

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

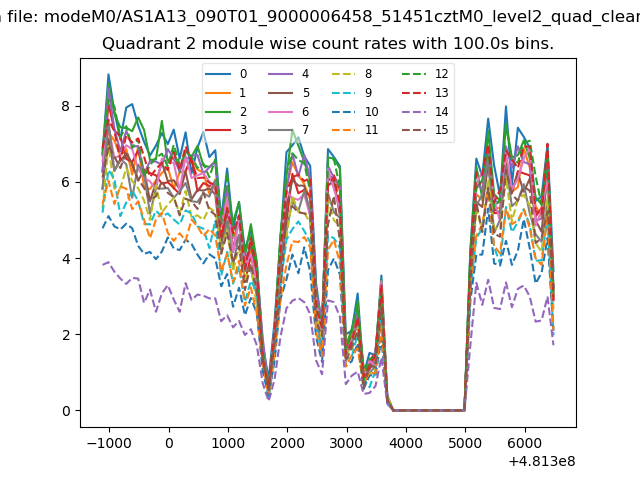

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

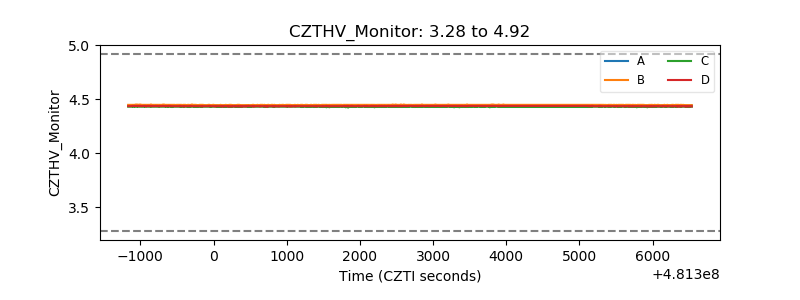

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

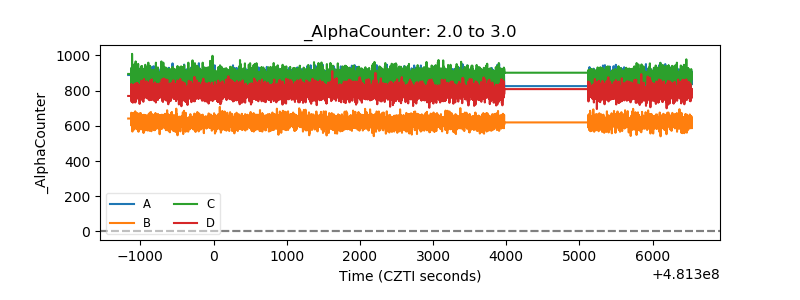

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

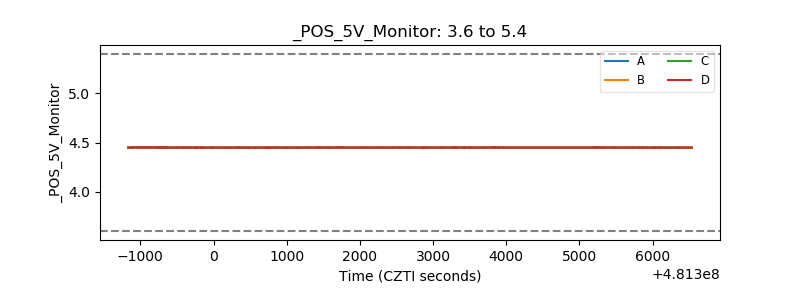

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
