| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_090T01_9000006458_51466cztM0_level2.fits | modeM0/AS1A13_090T01_9000006458_51466cztM0_level2_quad_clean.evt |
| Size (bytes) | 748,765,440 | 73,437,120 |
| Size | 714.1 MB | 70.0 MB |
| Events in quadrant A | 6,466,316 | 508,076 |
| Events in quadrant B | 4,519,618 | 607,652 |
| Events in quadrant C | 3,341,598 | 548,275 |
| Events in quadrant D | 12,931,629 | 147,031 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23243 | 1 |
| B | 0 | 17509 | 1 |
| C | 0 | 14138 | 1 |
| D | 0 | 42538 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5904 | 1001 | 16.954607% |
| B | 5905 | 364 | 6.164268% |
| C | 5905 | 218 | 3.691787% |
| D | 5905 | 4412 | 74.716342% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

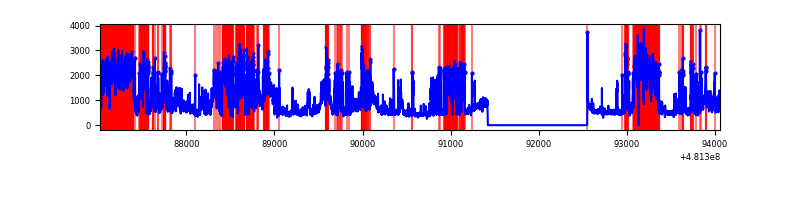

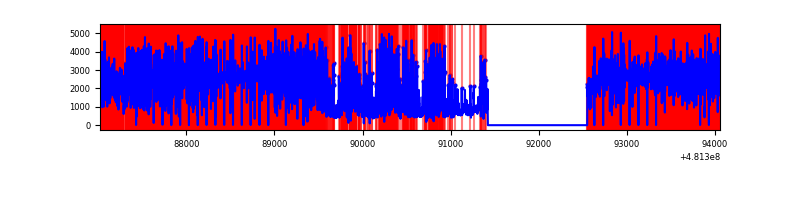

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7034 | 5905 | 896 | 896 | 12.74% | 15.17% |  |
| B | 7035 | 5906 | 140 | 140 | 1.99% | 2.37% |  |
| C | 7035 | 5906 | 133 | 133 | 1.89% | 2.25% |  |
| D | 7035 | 5906 | 3796 | 3796 | 53.96% | 64.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 249 | 1738166 | 11304.68 | 632 | 617 | 153.7 |
| A | 4 | 175 | 1308121 | 8506.76 | 632 | 617 | 153.7 |
| A | 12 | 3 | 358322 | 2327.27 | 632 | 617 | 153.7 |
| B | 10 | 254 | 888857 | 6518.65 | 640 | 619 | 136.3 |
| B | 4 | 206 | 533661 | 3911.92 | 640 | 619 | 136.3 |
| B | 7 | 252 | 107729 | 786.06 | 640 | 619 | 136.3 |
| C | 13 | 3 | 505854 | 2870.7 | 635 | 628 | 176.0 |
| C | 12 | 252 | 77027 | 434.1 | 635 | 628 | 176.0 |
| C | 12 | 250 | 49734 | 279.02 | 635 | 628 | 176.0 |
| D | 8 | 176 | 10523695 | 114881.55 | 323 | 312 | 91.6 |
| D | 6 | 42 | 567650 | 6193.51 | 323 | 312 | 91.6 |
| D | 3 | 12 | 340120 | 3709.61 | 323 | 312 | 91.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

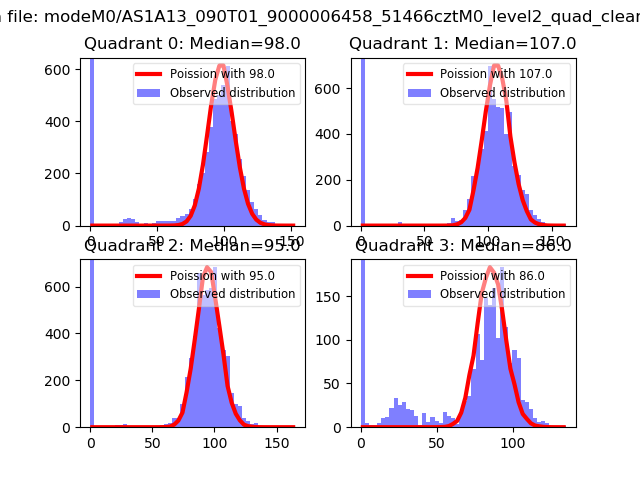

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

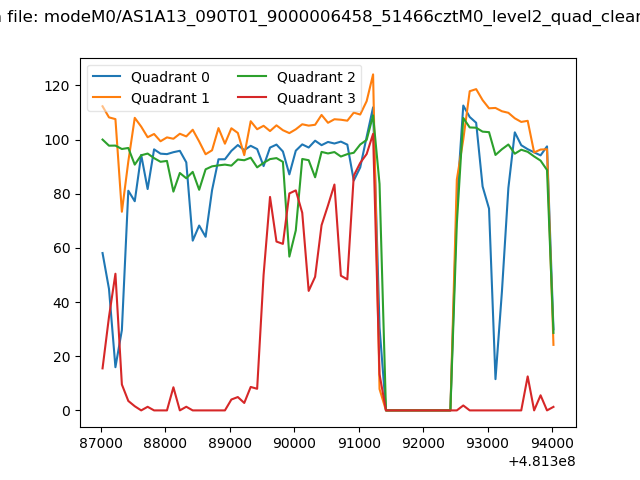

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

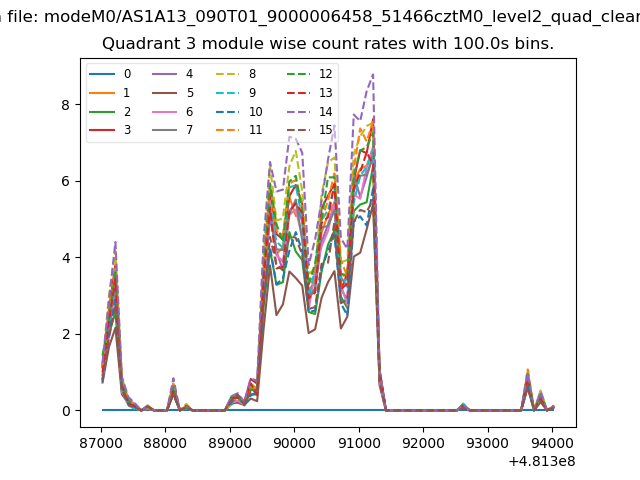

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

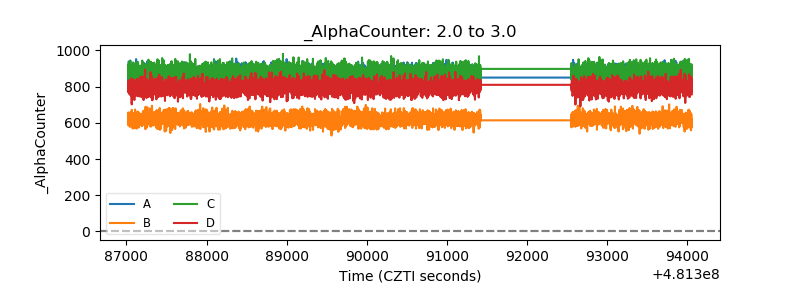

| Alpha Counter |  |

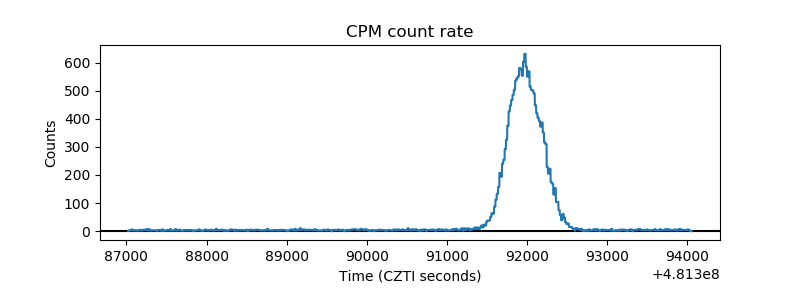

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
