| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51570cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51570cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,889,366,400 | 185,152,320 |
| Size | 1.8 GB | 176.6 MB |
| Events in quadrant A | 19,163,784 | 1,202,616 |
| Events in quadrant B | 13,865,564 | 1,403,926 |
| Events in quadrant C | 25,303,815 | 696,817 |
| Events in quadrant D | 10,439,567 | 1,258,930 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 67533 | 4 |
| B | 0 | 51636 | 2 |
| C | 0 | 85557 | 2 |
| D | 0 | 41493 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 306 | 0 |
| B | 0 | 306 | 0 |
| C | 0 | 306 | 0 |
| D | 0 | 306 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15123 | 3379 | 22.343450% |
| B | 15124 | 2250 | 14.877017% |
| C | 15124 | 8025 | 53.061359% |
| D | 15124 | 911 | 6.023539% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17928 | 15126 | 2358 | 2358 | 13.15% | 15.59% |  |
| B | 17929 | 15127 | 1473 | 1473 | 8.22% | 9.74% |  |
| C | 17929 | 15127 | 6983 | 6983 | 38.95% | 46.16% |  |
| D | 17929 | 15127 | 597 | 597 | 3.33% | 3.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 4945626 | 12880.65 | 1564 | 1529 | 383.8 |
| A | 7 | 64 | 4050890 | 10549.63 | 1564 | 1529 | 383.8 |
| A | 12 | 250 | 1972962 | 5136.09 | 1564 | 1529 | 383.8 |
| B | 10 | 44 | 3698047 | 10769.17 | 1611 | 1552 | 343.2 |
| B | 4 | 81 | 1744839 | 5078.8 | 1611 | 1552 | 343.2 |
| B | 0 | 171 | 461270 | 1339.32 | 1611 | 1552 | 343.2 |
| C | 15 | 198 | 18810388 | 58908.68 | 1162 | 1153 | 319.3 |
| C | 3 | 242 | 746341 | 2333.85 | 1162 | 1153 | 319.3 |
| C | 13 | 3 | 669764 | 2094.02 | 1162 | 1153 | 319.3 |
| D | 8 | 176 | 1281365 | 2857.23 | 1614 | 1563 | 447.9 |
| D | 12 | 6 | 966753 | 2154.84 | 1614 | 1563 | 447.9 |
| D | 2 | 249 | 448892 | 998.69 | 1614 | 1563 | 447.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

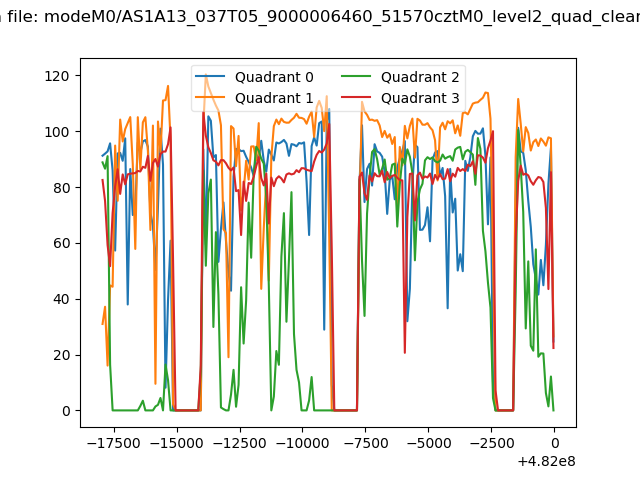

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

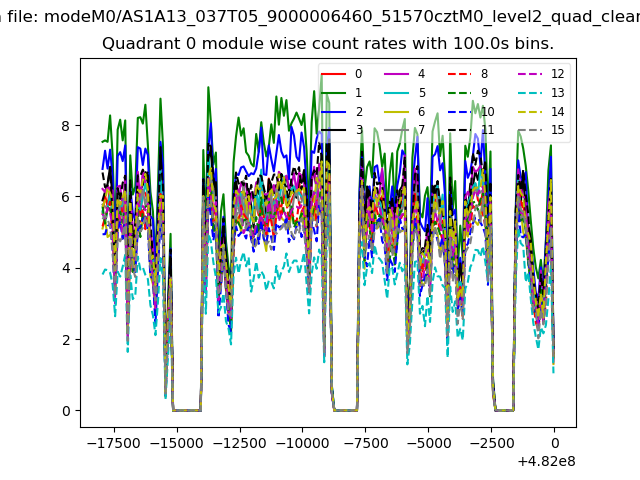

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

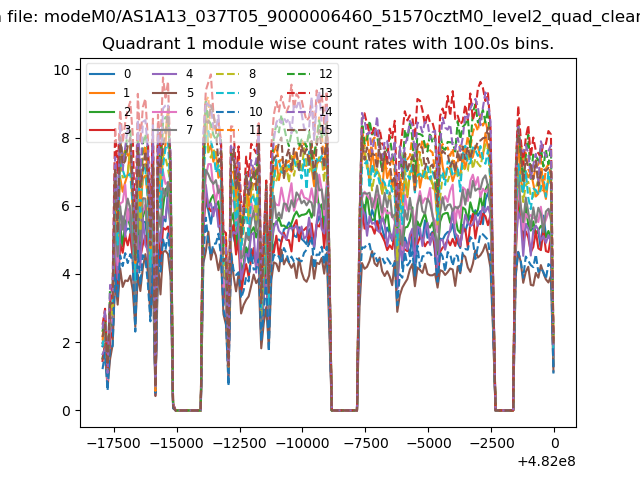

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

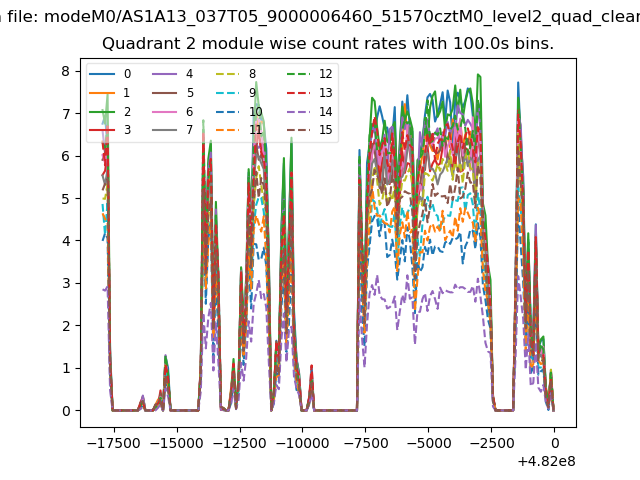

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

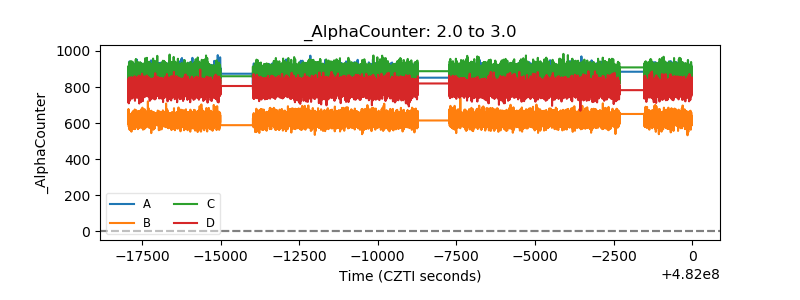

| Alpha Counter |  |

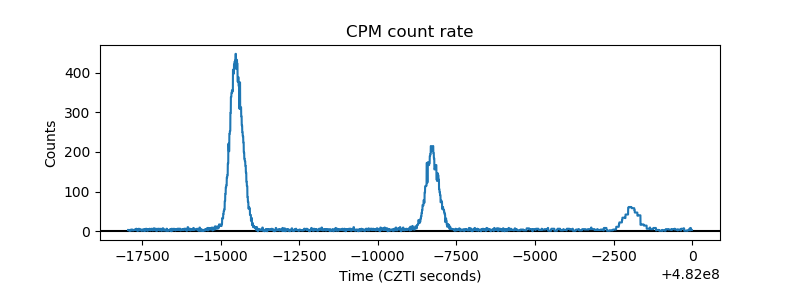

| _CPM_Rate |  |
| CZT Counter |  |

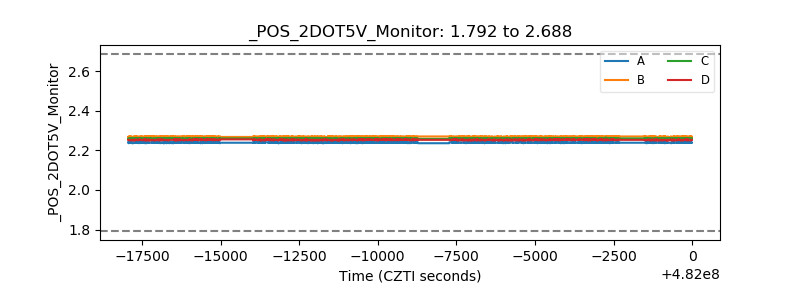

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

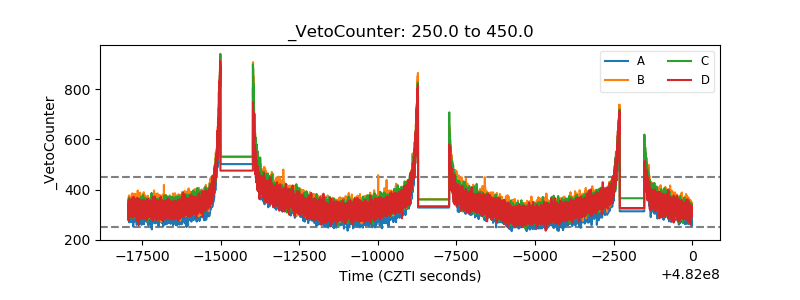

| Veto Counter |  |
