| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51585cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51585cztM0_level2_quad_clean.evt |
| Size (bytes) | 706,210,560 | 85,757,760 |
| Size | 673.5 MB | 81.8 MB |
| Events in quadrant A | 5,530,102 | 650,001 |
| Events in quadrant B | 3,938,061 | 720,736 |
| Events in quadrant C | 8,721,027 | 187,823 |
| Events in quadrant D | 7,396,410 | 540,878 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21342 | 1 |
| B | 0 | 16576 | 1 |
| C | 0 | 30900 | 1 |
| D | 0 | 26889 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7134 | 443 | 6.209700% |
| B | 7135 | 249 | 3.489839% |
| C | 7135 | 5105 | 71.548704% |
| D | 7134 | 1135 | 15.909728% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7664 | 7135 | 223 | 223 | 2.91% | 3.13% |  |
| B | 7665 | 7136 | 35 | 35 | 0.46% | 0.49% |  |
| C | 7665 | 7135 | 289 | 289 | 3.77% | 4.05% |  |
| D | 7664 | 7135 | 957 | 957 | 12.49% | 13.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 822142 | 4302.44 | 777 | 757 | 190.9 |
| A | 12 | 250 | 437350 | 2286.89 | 777 | 757 | 190.9 |
| A | 8 | 43 | 274692 | 1434.88 | 777 | 757 | 190.9 |
| B | 0 | 171 | 155379 | 924.66 | 779 | 750 | 167.2 |
| B | 5 | 185 | 132653 | 788.76 | 779 | 750 | 167.2 |
| B | 0 | 213 | 94824 | 562.55 | 779 | 750 | 167.2 |
| C | 15 | 198 | 6426884 | 77048.33 | 300 | 299 | 83.4 |
| C | 15 | 182 | 177867 | 2128.86 | 300 | 299 | 83.4 |
| C | 15 | 150 | 176124 | 2107.97 | 300 | 299 | 83.4 |
| D | 8 | 176 | 1362317 | 6774.22 | 721 | 697 | 201.0 |
| D | 5 | 113 | 1283547 | 6382.33 | 721 | 697 | 201.0 |
| D | 12 | 6 | 932099 | 4633.84 | 721 | 697 | 201.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

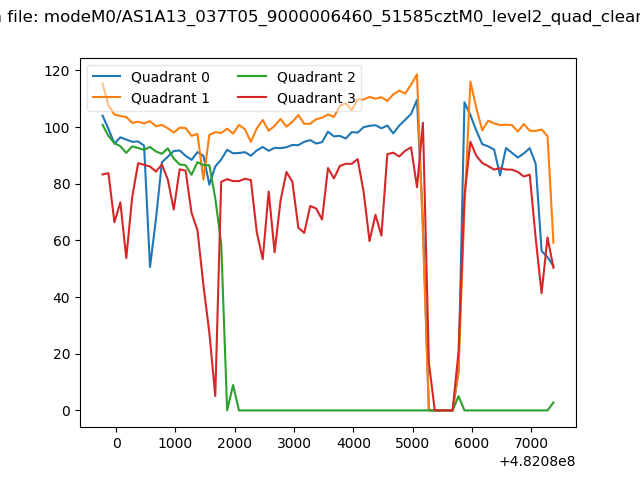

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

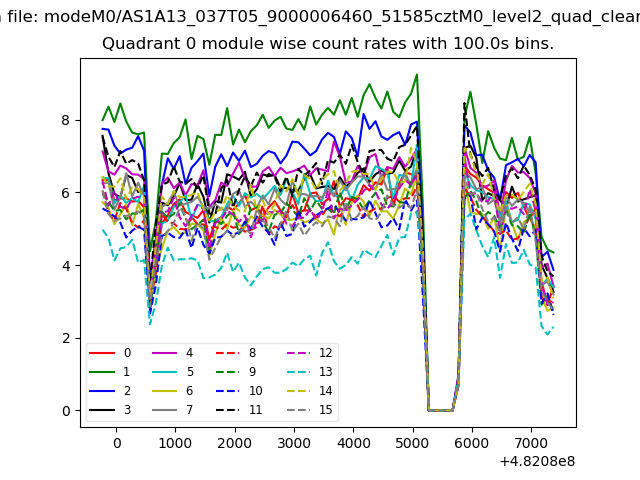

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

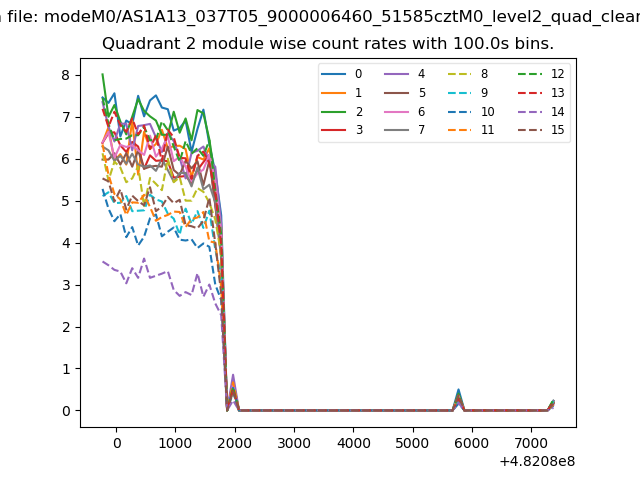

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

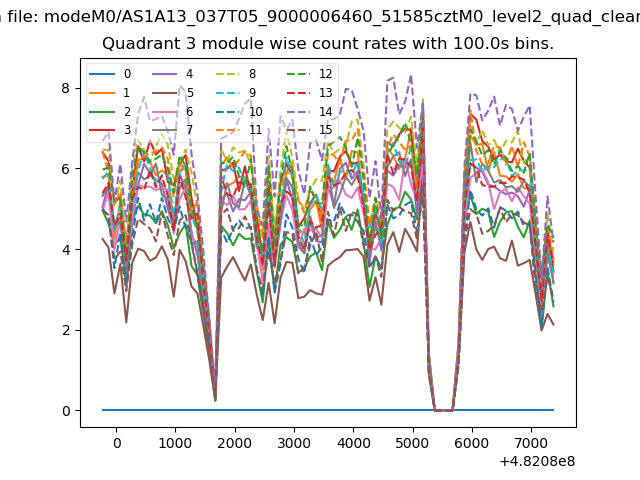

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

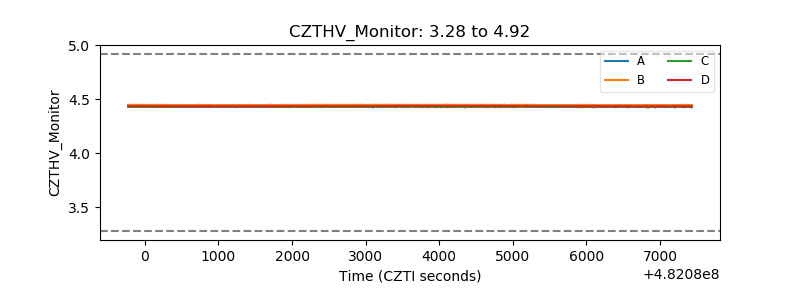

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

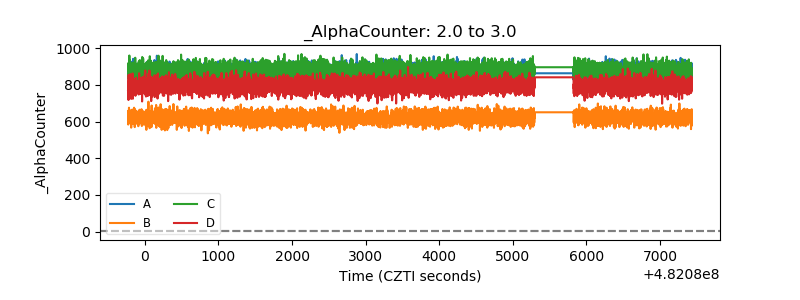

| Alpha Counter |  |

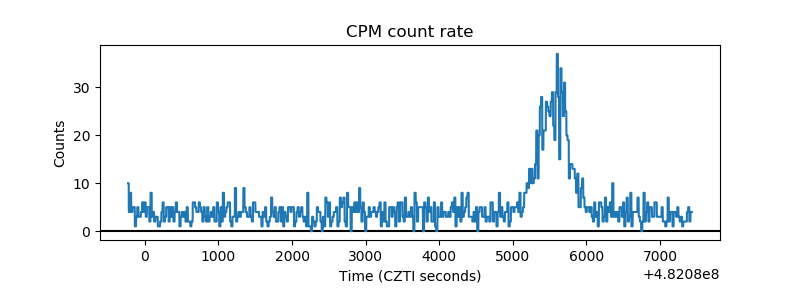

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

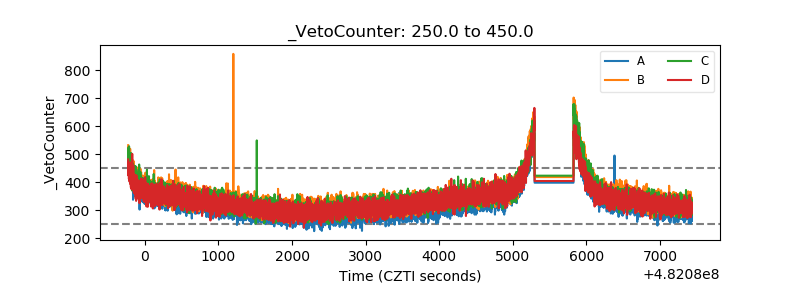

| Veto Counter |  |
