| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51595cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51595cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,177,675,200 | 202,449,600 |
| Size | 1.1 GB | 193.1 MB |
| Events in quadrant A | 9,639,661 | 1,352,507 |
| Events in quadrant B | 10,950,389 | 1,383,170 |
| Events in quadrant C | 9,187,933 | 1,302,563 |
| Events in quadrant D | 12,716,070 | 1,108,841 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38233 | 3 |
| B | 0 | 42147 | 3 |
| C | 0 | 37017 | 3 |
| D | 0 | 47479 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 292 | 0 |
| B | 0 | 292 | 0 |
| C | 0 | 292 | 0 |
| D | 0 | 292 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14224 | 750 | 5.272778% |
| B | 14225 | 1443 | 10.144112% |
| C | 14225 | 610 | 4.288225% |
| D | 14224 | 1748 | 12.289089% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17109 | 14226 | 379 | 379 | 2.22% | 2.66% |  |
| B | 17110 | 14228 | 879 | 879 | 5.14% | 6.18% |  |
| C | 17110 | 14228 | 399 | 399 | 2.33% | 2.80% |  |
| D | 17109 | 14225 | 1437 | 1437 | 8.40% | 10.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 250 | 1250858 | 3267.42 | 1573 | 1538 | 382.4 |
| A | 4 | 175 | 903067 | 2357.82 | 1573 | 1538 | 382.4 |
| A | 5 | 240 | 193156 | 501.15 | 1573 | 1538 | 382.4 |
| B | 4 | 174 | 1050752 | 3253.64 | 1517 | 1466 | 322.5 |
| B | 5 | 172 | 1025749 | 3176.11 | 1517 | 1466 | 322.5 |
| B | 5 | 185 | 444567 | 1373.97 | 1517 | 1466 | 322.5 |
| C | 13 | 3 | 1055086 | 2490.94 | 1528 | 1516 | 423.0 |
| C | 15 | 232 | 435722 | 1026.59 | 1528 | 1516 | 423.0 |
| C | 3 | 233 | 338976 | 797.85 | 1528 | 1516 | 423.0 |
| D | 5 | 113 | 2799814 | 6912.18 | 1458 | 1406 | 404.9 |
| D | 12 | 6 | 1066528 | 2630.89 | 1458 | 1406 | 404.9 |
| D | 3 | 12 | 960197 | 2368.25 | 1458 | 1406 | 404.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

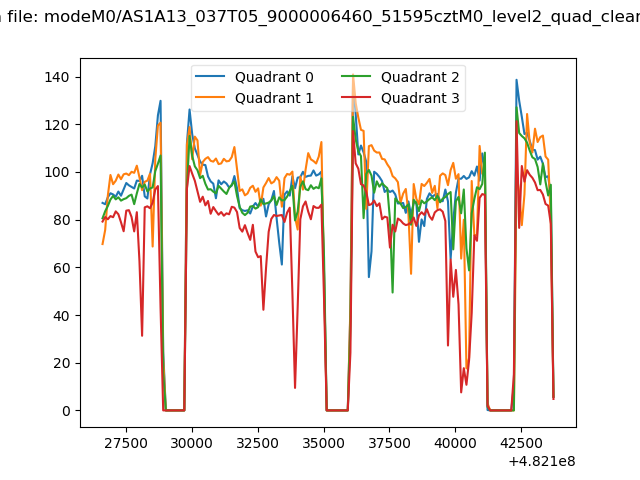

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

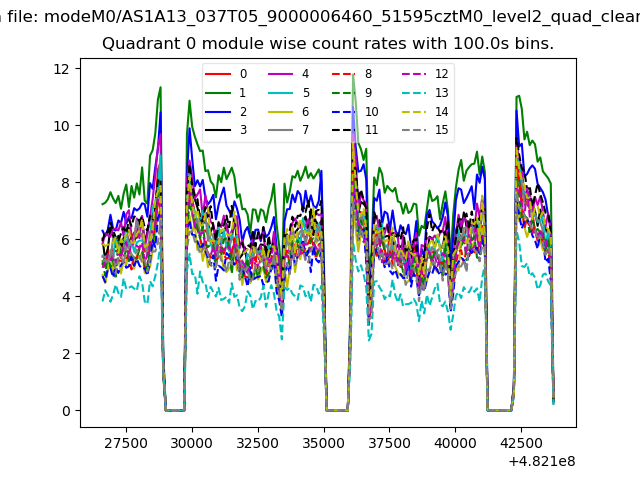

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

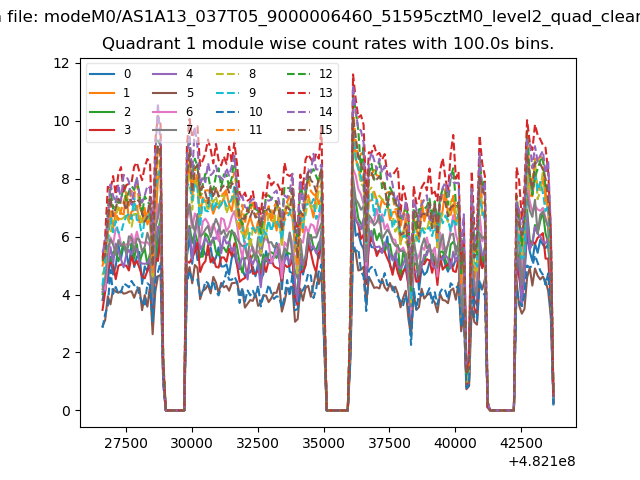

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

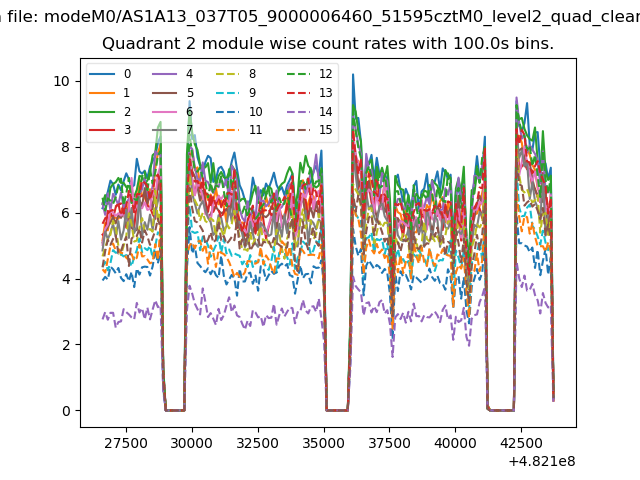

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

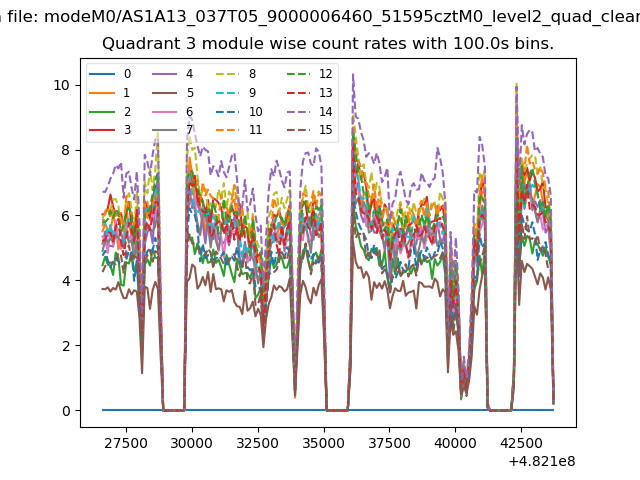

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

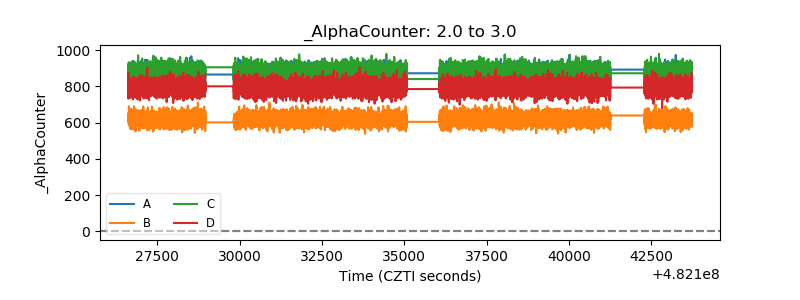

| Alpha Counter |  |

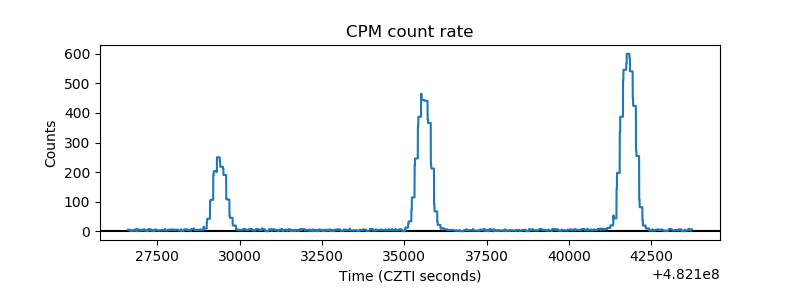

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

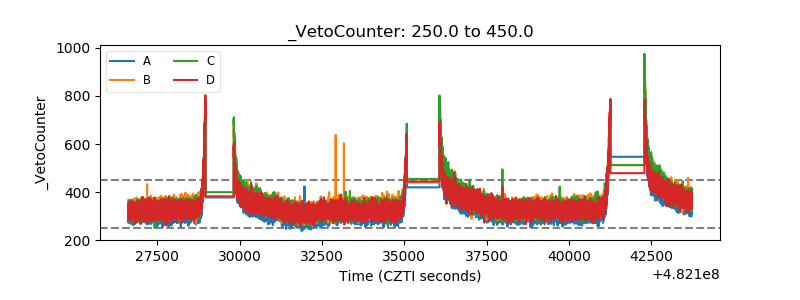

| Veto Counter |  |
