| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51653cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51653cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,104,694,720 | 531,639,360 |
| Size | 2.9 GB | 507.0 MB |
| Events in quadrant A | 37,087,409 | 3,321,431 |
| Events in quadrant B | 24,799,443 | 3,774,168 |
| Events in quadrant C | 26,378,892 | 3,296,755 |
| Events in quadrant D | 23,969,114 | 3,307,432 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47 | 0 |
| B | 0 | 47 | 0 |
| C | 0 | 47 | 0 |
| D | 0 | 47 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134395 | 7 |
| B | 0 | 97699 | 7 |
| C | 0 | 102595 | 7 |
| D | 0 | 95908 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 706 | 0 |
| B | 0 | 706 | 0 |
| C | 0 | 706 | 0 |
| D | 0 | 706 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 34915 | 5374 | 15.391665% |
| B | 34916 | 2442 | 6.993928% |
| C | 34916 | 2203 | 6.309428% |
| D | 34916 | 1606 | 4.599610% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 39350 | 34922 | 4083 | 4083 | 10.38% | 11.69% |  |
| B | 39351 | 34923 | 1343 | 1343 | 3.41% | 3.85% |  |
| C | 39351 | 34923 | 1706 | 1706 | 4.34% | 4.89% |  |
| D | 39351 | 34923 | 1335 | 1335 | 3.39% | 3.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 9410184 | 9842.0 | 3734 | 3658 | 955.8 |
| A | 4 | 175 | 5666955 | 5925.48 | 3734 | 3658 | 955.8 |
| A | 12 | 250 | 2611606 | 2728.68 | 3734 | 3658 | 955.8 |
| B | 5 | 172 | 2726815 | 3413.18 | 3739 | 3621 | 797.8 |
| B | 10 | 44 | 1583326 | 1979.96 | 3739 | 3621 | 797.8 |
| B | 1 | 223 | 1232674 | 1540.46 | 3739 | 3621 | 797.8 |
| C | 12 | 254 | 4106845 | 4006.04 | 3699 | 3671 | 1024.2 |
| C | 5 | 250 | 1467030 | 1428.72 | 3699 | 3671 | 1024.2 |
| C | 15 | 189 | 1298374 | 1264.05 | 3699 | 3671 | 1024.2 |
| D | 3 | 12 | 2252681 | 2082.46 | 3770 | 3632 | 1080.0 |
| D | 8 | 176 | 1998009 | 1846.66 | 3770 | 3632 | 1080.0 |
| D | 7 | 60 | 1345577 | 1242.55 | 3770 | 3632 | 1080.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

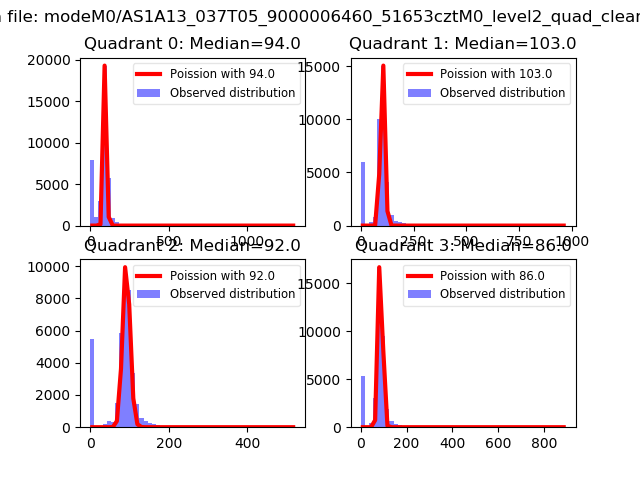

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

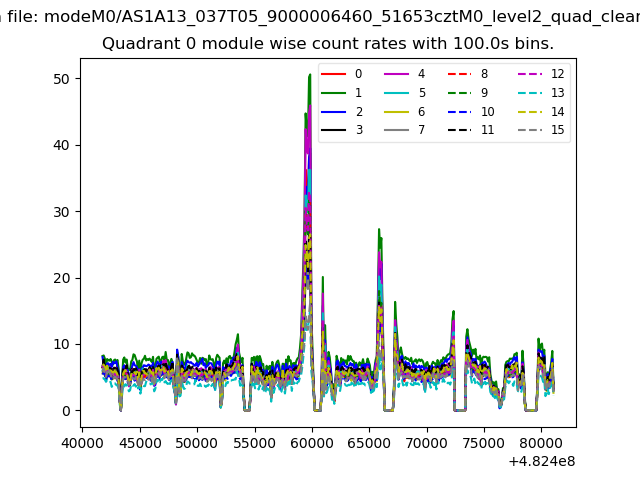

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

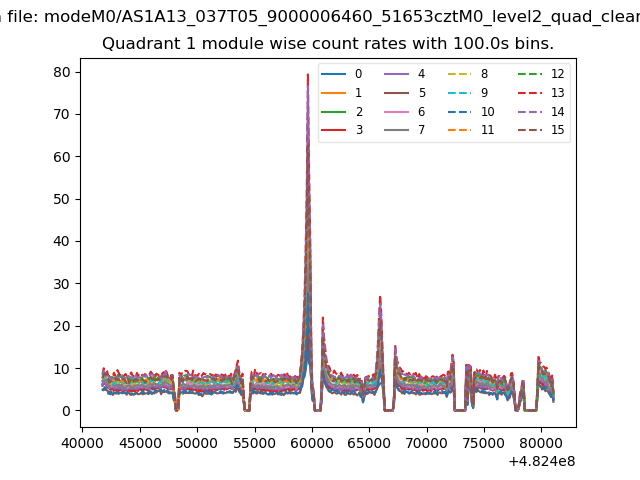

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

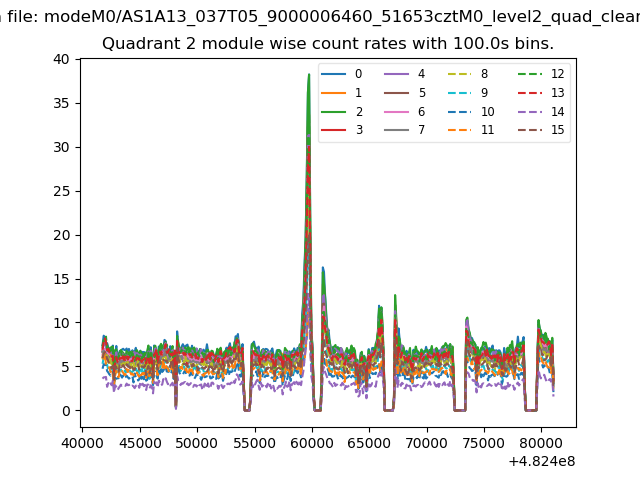

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

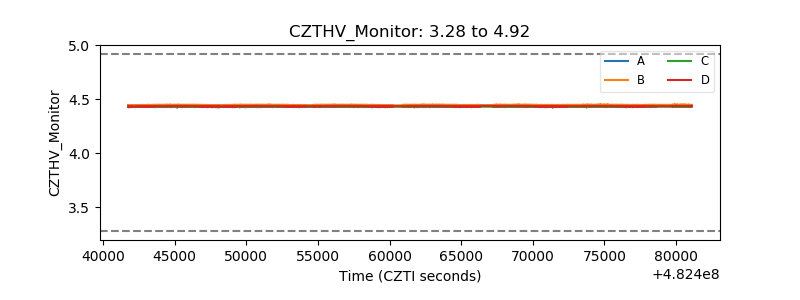

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

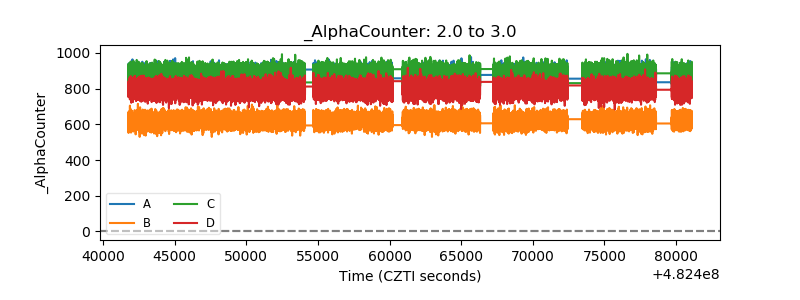

| Alpha Counter |  |

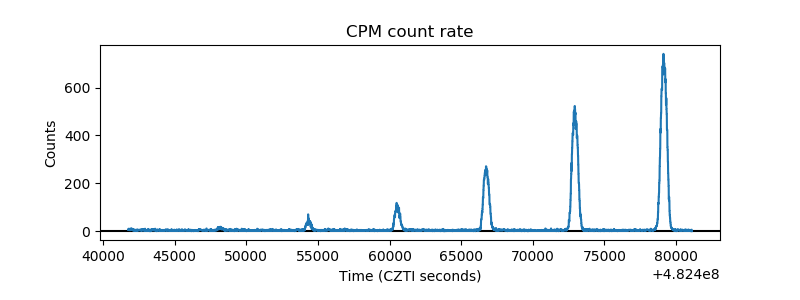

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

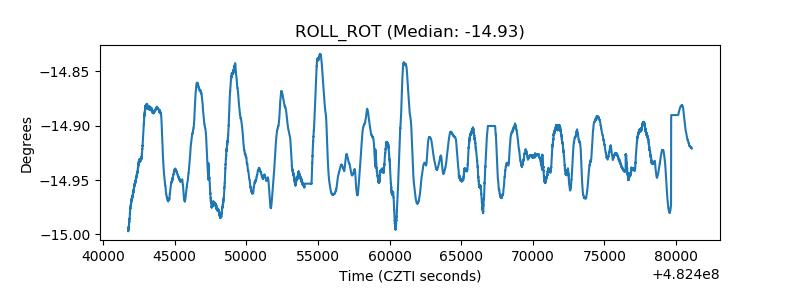

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
