| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_031T01_9000006462_51683cztM0_level2.fits | modeM0/AS1A13_031T01_9000006462_51683cztM0_level2_quad_clean.evt |
| Size (bytes) | 270,187,200 | 48,418,560 |
| Size | 257.7 MB | 46.2 MB |
| Events in quadrant A | 2,361,995 | 317,522 |
| Events in quadrant B | 2,061,053 | 354,125 |
| Events in quadrant C | 3,432,684 | 245,310 |
| Events in quadrant D | 1,858,599 | 287,673 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 3 |
| B | 0 | 11 | 3 |
| C | 0 | 11 | 7 |
| D | 0 | 11 | 4 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15393 | 5949 |
| B | 0 | 14359 | 5587 |
| C | 0 | 23321 | 10778 |
| D | 0 | 16261 | 7963 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 31 |
| B | 0 | 122 | 21 |
| C | 0 | 119 | 40 |
| D | 0 | 123 | 43 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3750 | 122 | 3.253333% |
| B | 3815 | 105 | 2.752294% |
| C | 3393 | 538 | 15.856174% |
| D | 3631 | 33 | 0.908841% |

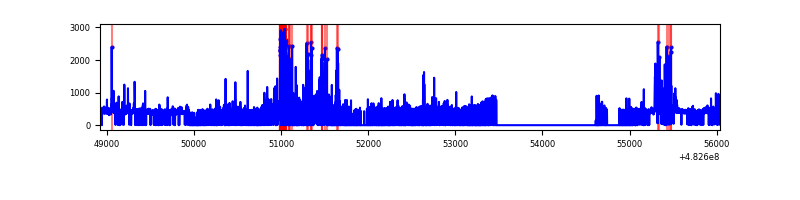

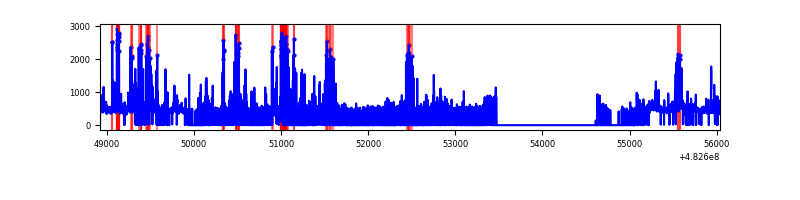

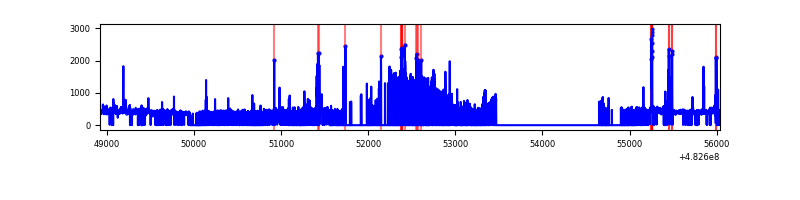

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7113 | 4584 | 101 | 101 | 1.42% | 2.20% |  |
| B | 7113 | 4664 | 63 | 63 | 0.89% | 1.35% |  |
| C | 7114 | 4243 | 543 | 543 | 7.63% | 12.80% |  |
| D | 7114 | 4383 | 30 | 30 | 0.42% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 387680 | 3960.05 | 393 | 384 | 97.8 |
| A | 13 | 248 | 67807 | 689.39 | 393 | 384 | 97.8 |
| A | 3 | 14 | 49389 | 501.07 | 393 | 384 | 97.8 |
| B | 10 | 14 | 188293 | 2152.85 | 398 | 385 | 87.3 |
| B | 8 | 128 | 52355 | 595.42 | 398 | 385 | 87.3 |
| B | 5 | 173 | 44083 | 500.64 | 398 | 385 | 87.3 |
| C | 15 | 189 | 1590156 | 17754.05 | 322 | 320 | 89.5 |
| C | 13 | 3 | 188369 | 2099.99 | 322 | 320 | 89.5 |
| C | 0 | 192 | 167005 | 1861.41 | 322 | 320 | 89.5 |
| D | 10 | 172 | 197673 | 1915.52 | 365 | 352 | 103.0 |
| D | 6 | 42 | 54753 | 528.1 | 365 | 352 | 103.0 |
| D | 5 | 173 | 32140 | 308.59 | 365 | 352 | 103.0 |

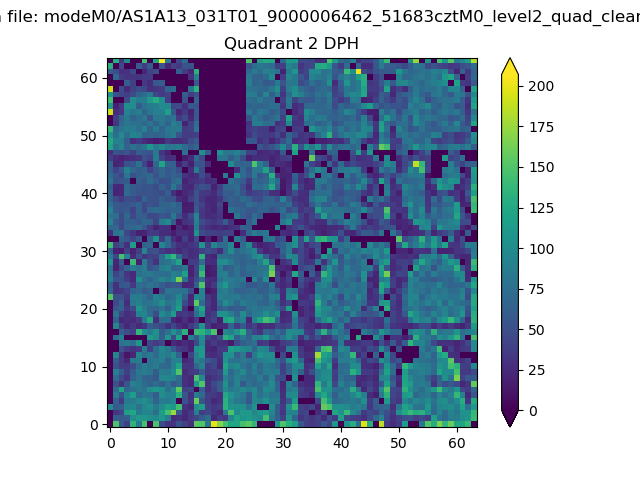

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

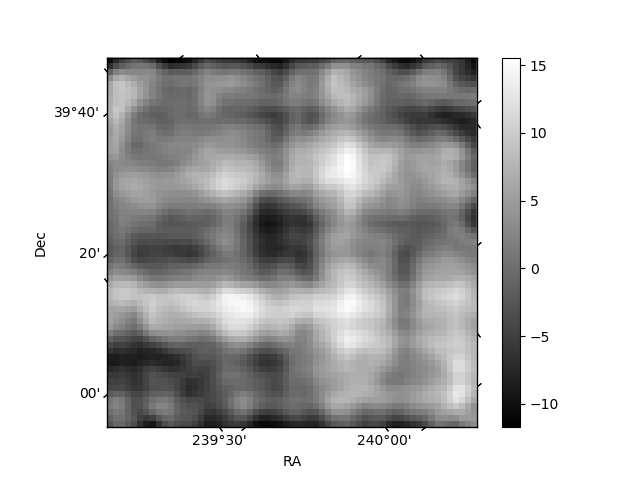

| Plot type | Count rate plots | Images |
|---|---|---|

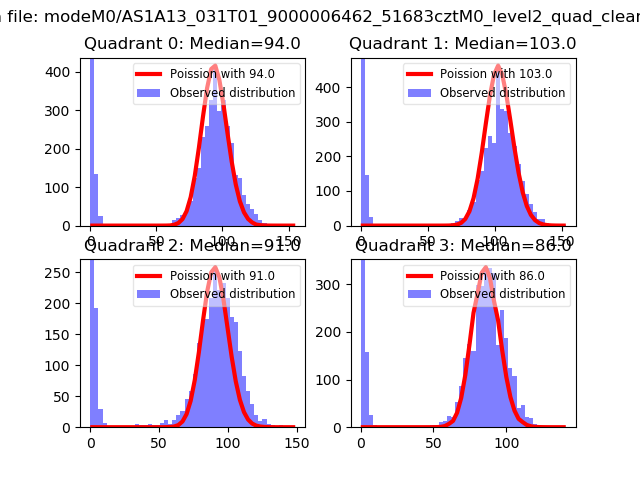

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

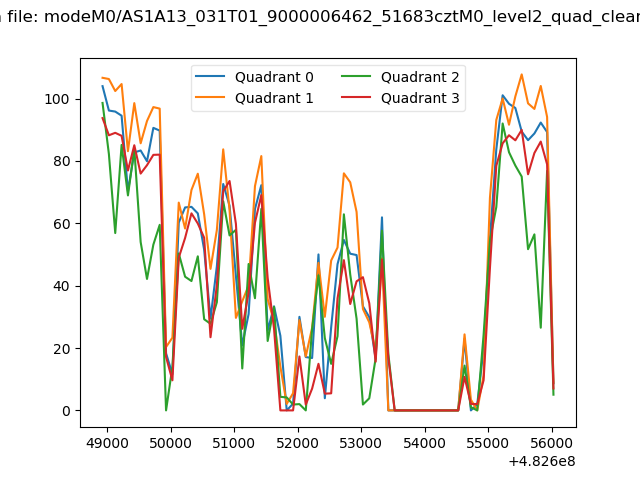

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

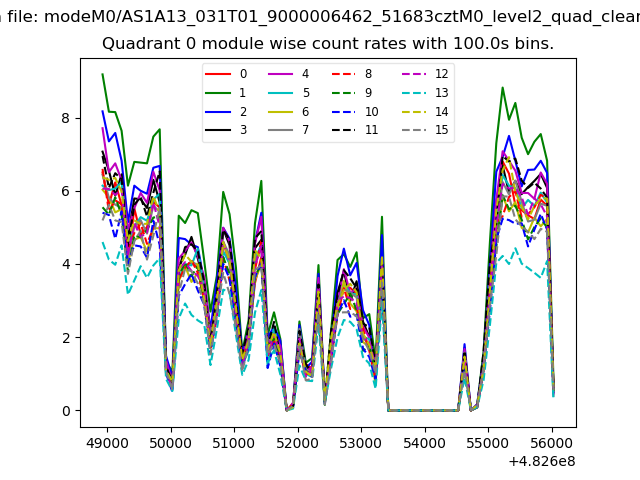

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

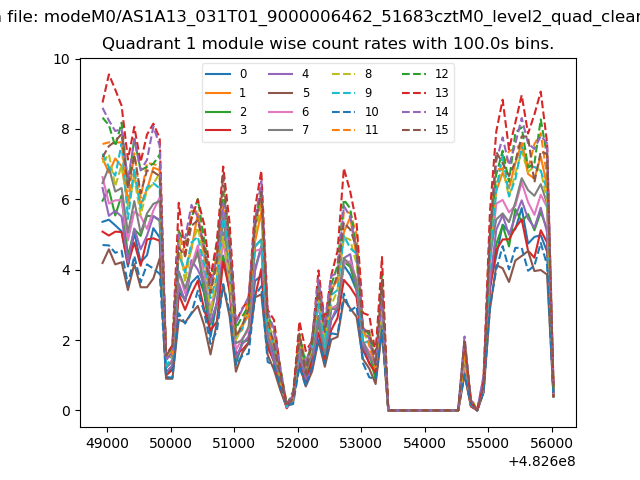

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

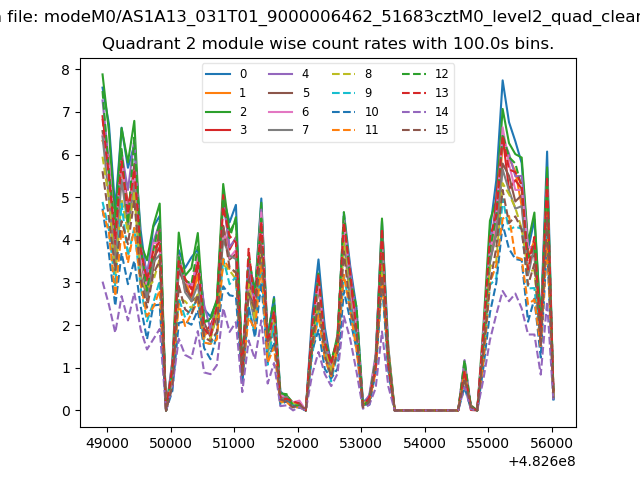

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

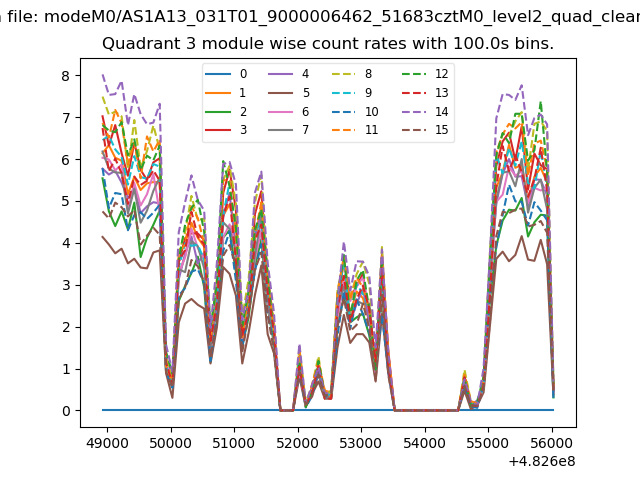

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

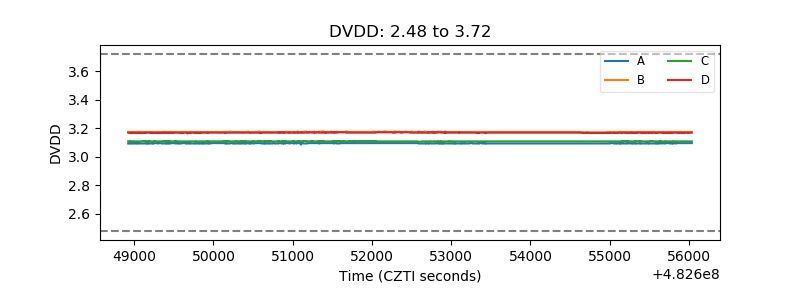

| D_VDD |  |

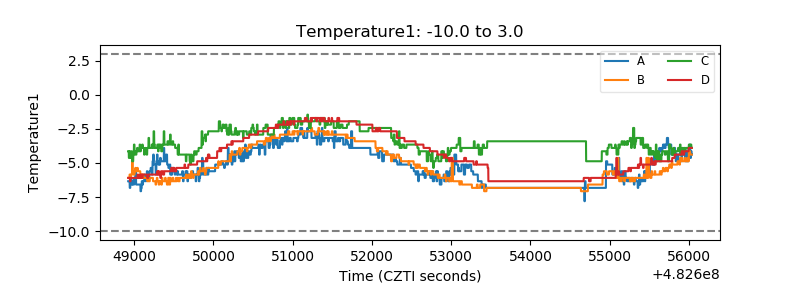

| Temperature 1 |  |
| Veto HV Monitor |  |

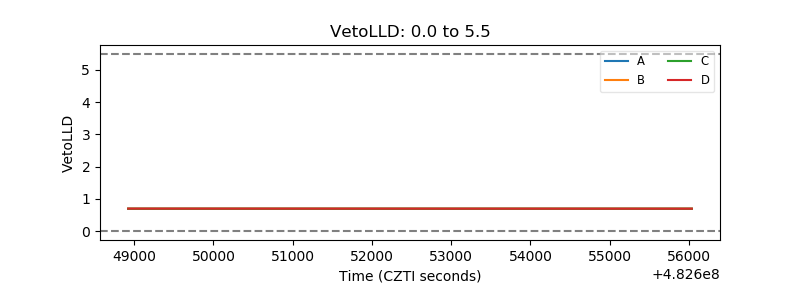

| Veto LLD |  |
| Alpha Counter |  |

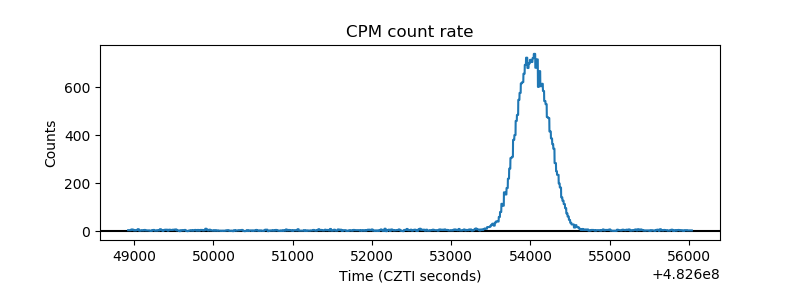

| _CPM_Rate |  |

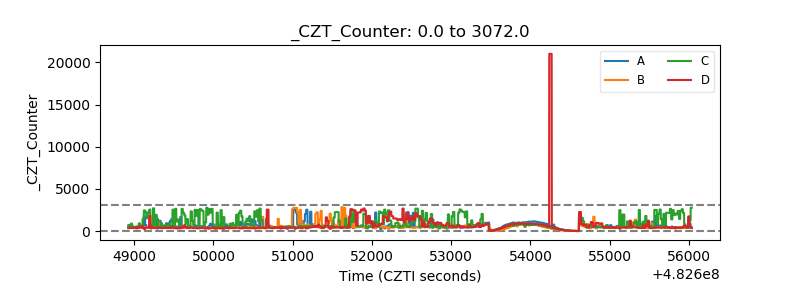

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

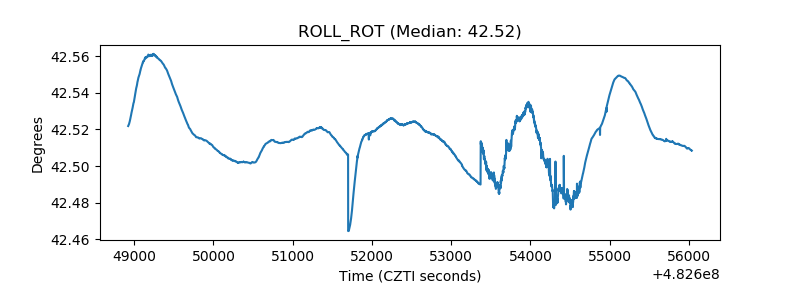

| _ROLL_ROT |  |

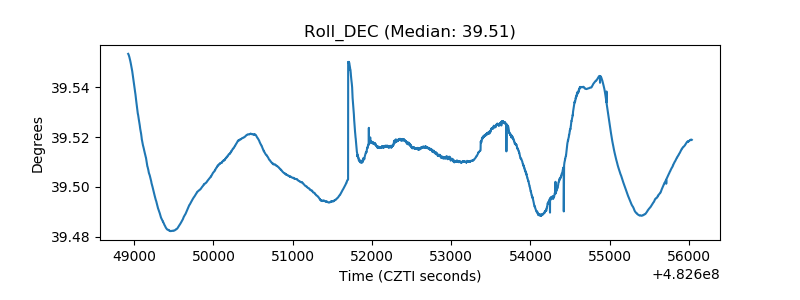

| _Roll_DEC |  |

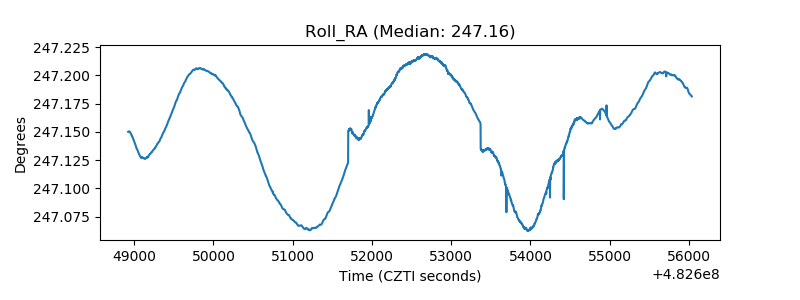

| _Roll_RA |  |

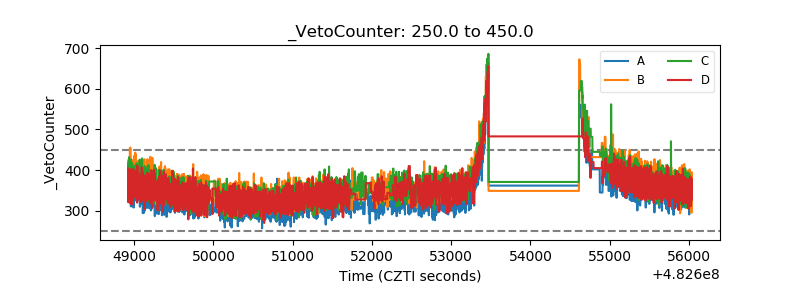

| Veto Counter |  |
