| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_090T01_9000006464_51823cztM0_level2.fits | modeM0/AS1A13_090T01_9000006464_51823cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,728,028,800 | 171,028,800 |
| Size | 1.6 GB | 163.1 MB |
| Events in quadrant A | 9,568,282 | 1,292,952 |
| Events in quadrant B | 20,272,683 | 937,508 |
| Events in quadrant C | 9,156,017 | 1,238,424 |
| Events in quadrant D | 23,836,731 | 694,298 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 1 |
| B | 0 | 12 | 1 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 317 | 12 |
| B | 0 | 316 | 11 |
| C | 0 | 319 | 8 |
| D | 0 | 320 | 16 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41172 | 2750 |
| B | 0 | 73725 | 3291 |
| C | 0 | 40092 | 2468 |
| D | 0 | 86176 | 5309 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14745 | 582 | 3.947101% |
| B | 14662 | 5564 | 37.948438% |
| C | 14745 | 518 | 3.513055% |
| D | 14525 | 6568 | 45.218589% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16811 | 15060 | 160 | 160 | 0.95% | 1.06% |  |
| B | 16812 | 15037 | 4082 | 4082 | 24.28% | 27.15% |  |
| C | 16812 | 15045 | 255 | 255 | 1.52% | 1.69% |  |
| D | 16811 | 14906 | 5109 | 5109 | 30.39% | 34.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 622857 | 1560.13 | 1615 | 1575 | 398.2 |
| A | 12 | 3 | 488359 | 1222.39 | 1615 | 1575 | 398.2 |
| A | 3 | 22 | 459804 | 1150.68 | 1615 | 1575 | 398.2 |
| B | 5 | 172 | 8817629 | 30989.9 | 1322 | 1273 | 284.5 |
| B | 10 | 128 | 2102283 | 7385.15 | 1322 | 1273 | 284.5 |
| B | 1 | 223 | 2077365 | 7297.56 | 1322 | 1273 | 284.5 |
| C | 15 | 218 | 1080109 | 2493.82 | 1573 | 1560 | 432.5 |
| C | 14 | 245 | 388812 | 895.4 | 1573 | 1560 | 432.5 |
| C | 10 | 252 | 228693 | 525.18 | 1573 | 1560 | 432.5 |
| D | 11 | 129 | 10782940 | 33748.13 | 1149 | 1109 | 319.5 |
| D | 11 | 176 | 2911647 | 9110.25 | 1149 | 1109 | 319.5 |
| D | 3 | 12 | 2812809 | 8800.88 | 1149 | 1109 | 319.5 |

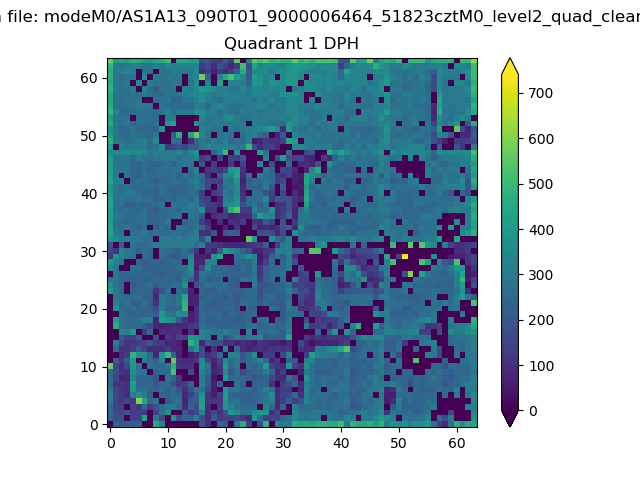

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

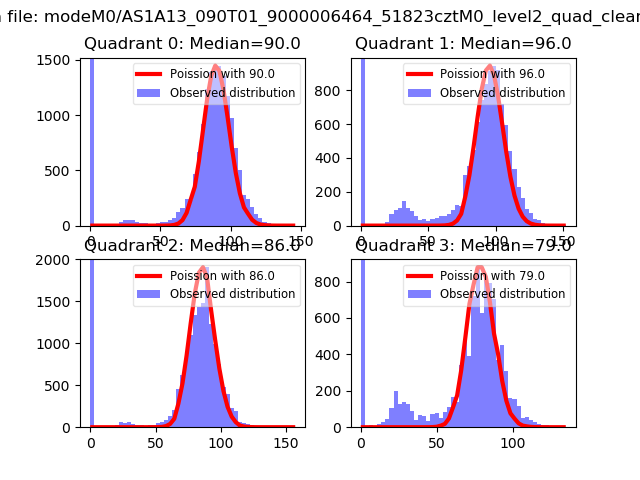

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

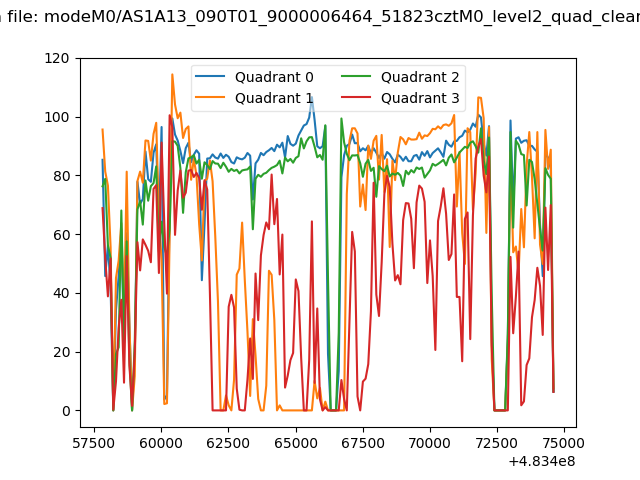

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

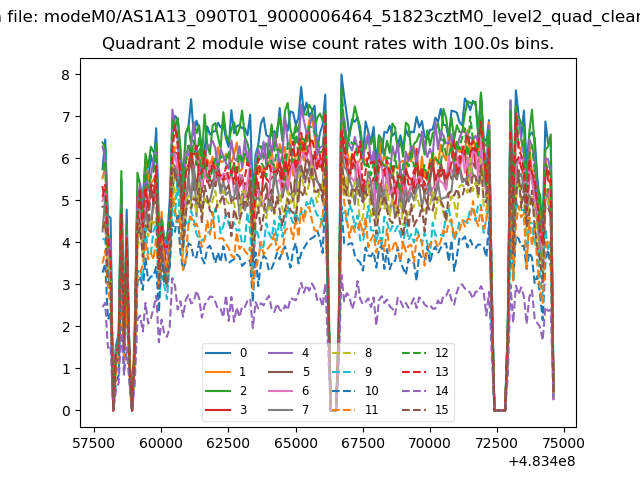

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

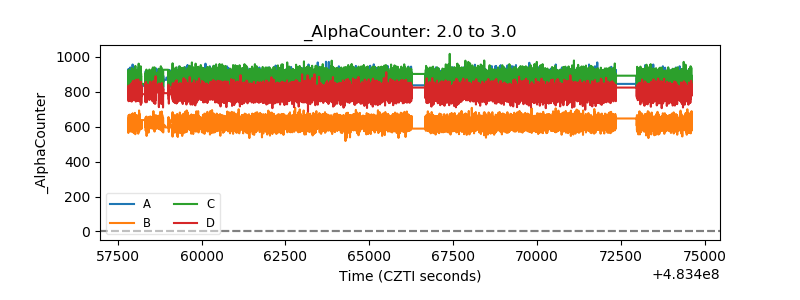

| Alpha Counter |  |

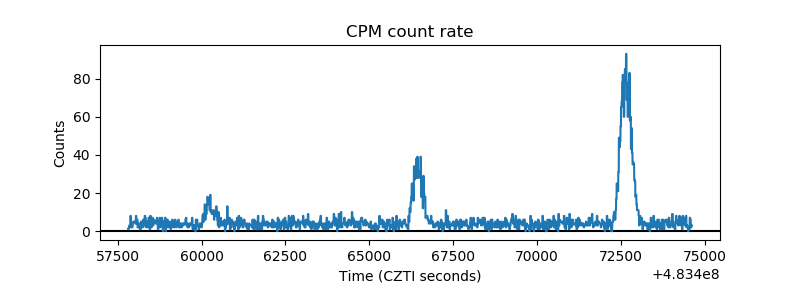

| _CPM_Rate |  |
| CZT Counter |  |

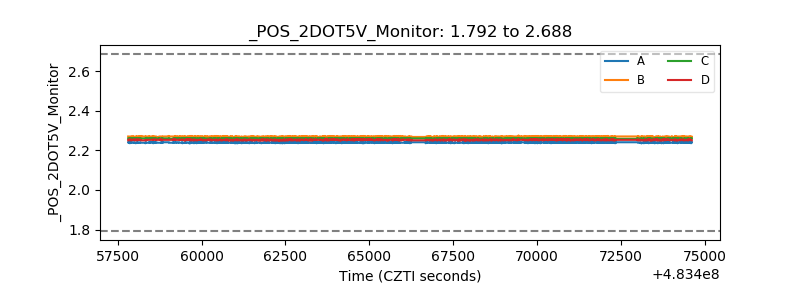

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

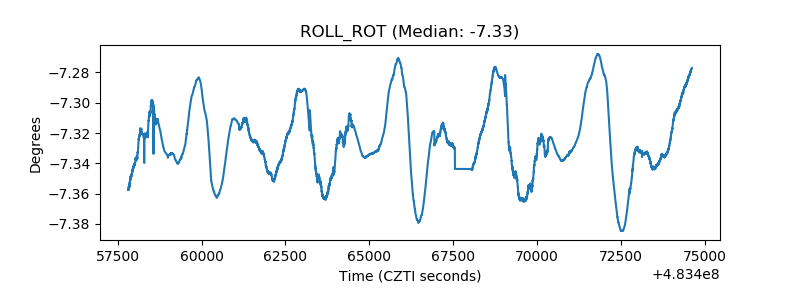

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
