| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006468_51965cztM0_level2.fits | modeM0/AS1C09_011T06_9000006468_51965cztM0_level2_quad_clean.evt |
| Size (bytes) | 4,312,690,560 | 323,737,920 |
| Size | 4.0 GB | 308.7 MB |
| Events in quadrant A | 29,723,163 | 2,368,014 |
| Events in quadrant B | 27,648,415 | 2,583,443 |
| Events in quadrant C | 46,919,297 | 1,519,306 |
| Events in quadrant D | 53,096,390 | 1,306,632 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108726 | 4 |
| B | 0 | 102536 | 4 |
| C | 0 | 159736 | 4 |
| D | 0 | 177970 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 598 | 0 |
| B | 0 | 598 | 0 |
| C | 0 | 598 | 0 |
| D | 0 | 598 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 29397 | 4517 | 15.365513% |
| B | 29396 | 4446 | 15.124507% |
| C | 29396 | 12409 | 42.213226% |
| D | 29396 | 13306 | 45.264662% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

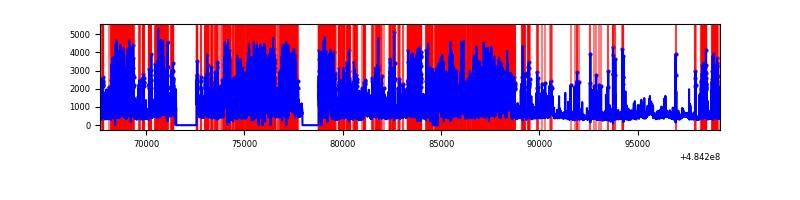

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31522 | 29402 | 3585 | 3585 | 11.37% | 12.19% |  |
| B | 31521 | 29400 | 3264 | 3264 | 10.36% | 11.10% |  |
| C | 31521 | 29397 | 9314 | 9314 | 29.55% | 31.68% |  |
| D | 31521 | 29402 | 12911 | 12911 | 40.96% | 43.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 159 | 5505439 | 7909.98 | 2814 | 2744 | 695.7 |
| A | 7 | 64 | 5217213 | 7495.66 | 2814 | 2744 | 695.7 |
| A | 4 | 95 | 3816677 | 5482.43 | 2814 | 2744 | 695.7 |
| B | 12 | 32 | 5638918 | 9655.65 | 2802 | 2709 | 583.7 |
| B | 5 | 185 | 3674527 | 6290.36 | 2802 | 2709 | 583.7 |
| B | 4 | 249 | 1712901 | 2929.81 | 2802 | 2709 | 583.7 |
| C | 15 | 224 | 29306531 | 44964.56 | 2354 | 2332 | 651.7 |
| C | 0 | 193 | 2413455 | 3699.64 | 2354 | 2332 | 651.7 |
| C | 15 | 192 | 1756275 | 2691.26 | 2354 | 2332 | 651.7 |
| D | 6 | 42 | 26410728 | 38421.04 | 2390 | 2276 | 687.3 |
| D | 12 | 17 | 5026770 | 7310.02 | 2390 | 2276 | 687.3 |
| D | 7 | 126 | 4056720 | 5898.71 | 2390 | 2276 | 687.3 |

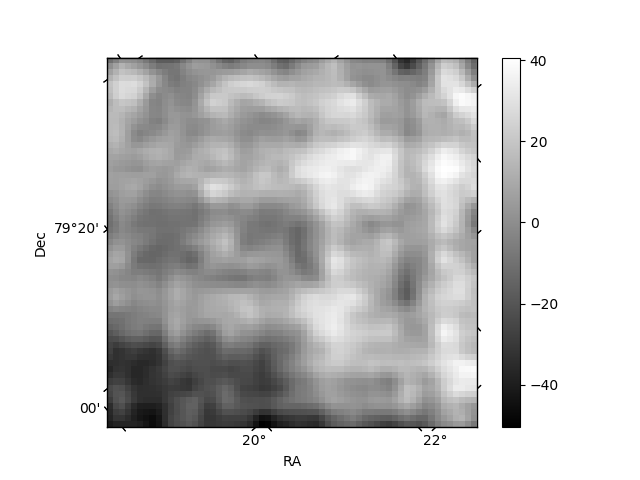

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

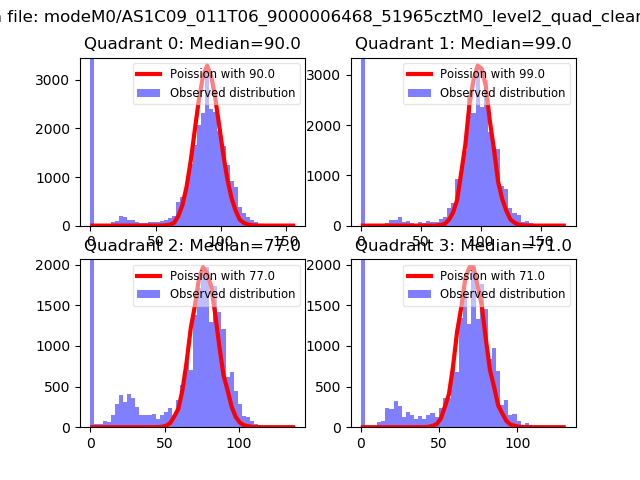

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

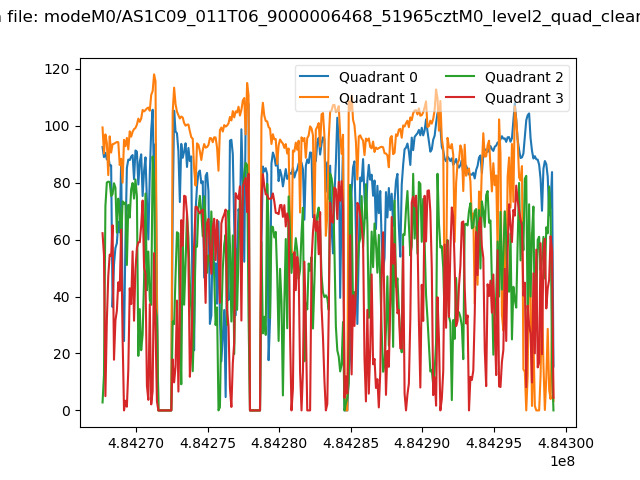

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

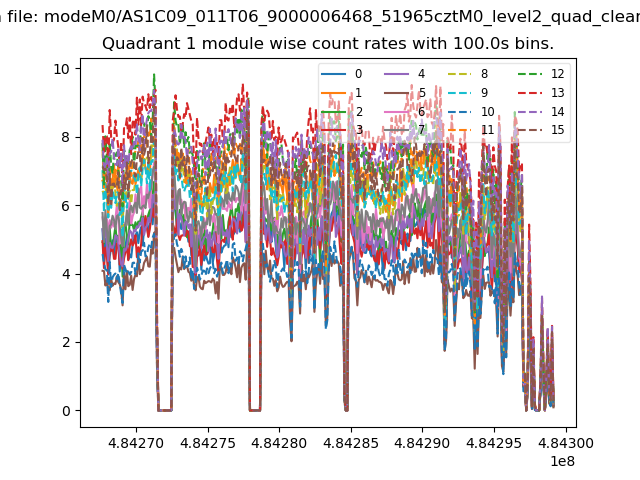

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

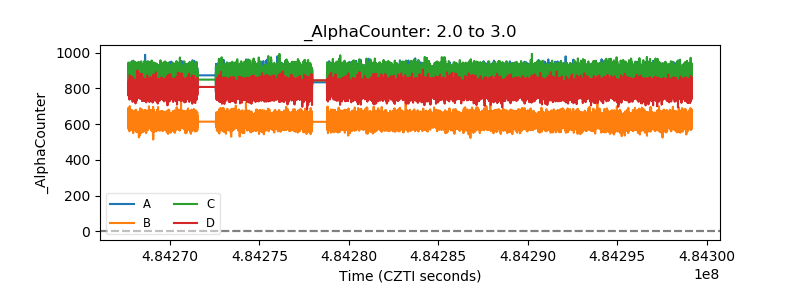

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

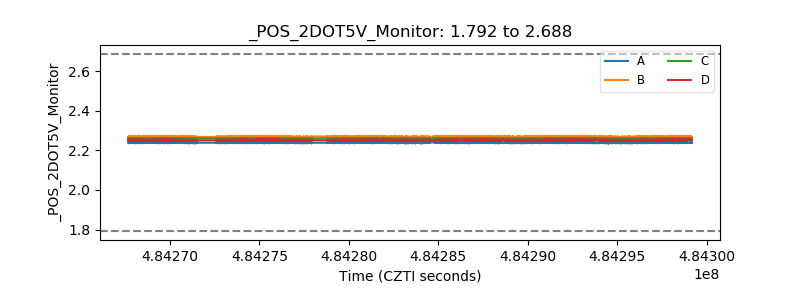

| +2.5 Volts monitor |  |

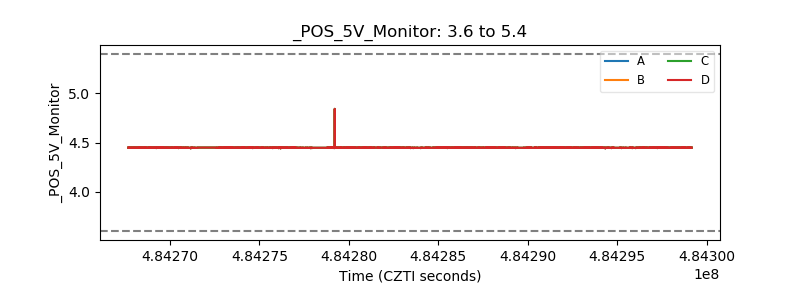

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
