| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006468_51984cztM0_level2.fits | modeM0/AS1C09_011T06_9000006468_51984cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,130,951,680 | 221,734,080 |
| Size | 2.9 GB | 211.5 MB |
| Events in quadrant A | 20,678,316 | 1,630,934 |
| Events in quadrant B | 19,574,562 | 1,853,724 |
| Events in quadrant C | 26,742,107 | 1,344,554 |
| Events in quadrant D | 47,272,395 | 422,488 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 75885 | 11 |
| B | 0 | 72838 | 4 |
| C | 0 | 94230 | 4 |
| D | 0 | 154786 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 432 | 0 |
| B | 0 | 432 | 0 |
| C | 0 | 432 | 0 |
| D | 0 | 432 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21189 | 3641 | 17.183444% |
| B | 21191 | 3074 | 14.506158% |
| C | 21191 | 6476 | 30.560143% |
| D | 21191 | 16638 | 78.514464% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31809 | 21189 | 2746 | 2746 | 8.63% | 12.96% |  |
| B | 31811 | 21190 | 1820 | 1820 | 5.72% | 8.59% |  |
| C | 31811 | 21192 | 5563 | 5563 | 17.49% | 26.25% |  |
| D | 31810 | 21187 | 15688 | 15688 | 49.32% | 74.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 6818340 | 13169.9 | 2097 | 2046 | 517.6 |
| A | 4 | 95 | 2376479 | 4587.69 | 2097 | 2046 | 517.6 |
| A | 4 | 3 | 414685 | 797.27 | 2097 | 2046 | 517.6 |
| B | 12 | 32 | 3680203 | 8122.77 | 2120 | 2042 | 452.8 |
| B | 4 | 206 | 2197051 | 4847.41 | 2120 | 2042 | 452.8 |
| B | 10 | 128 | 1365558 | 3011.16 | 2120 | 2042 | 452.8 |
| C | 15 | 224 | 8059383 | 15515.89 | 1868 | 1847 | 519.3 |
| C | 12 | 252 | 7051320 | 13574.73 | 1868 | 1847 | 519.3 |
| C | 13 | 3 | 2159528 | 4154.91 | 1868 | 1847 | 519.3 |
| D | 2 | 172 | 24500514 | 71131.3 | 1195 | 1139 | 344.4 |
| D | 12 | 17 | 4127587 | 11980.7 | 1195 | 1139 | 344.4 |
| D | 7 | 126 | 3878964 | 11258.85 | 1195 | 1139 | 344.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

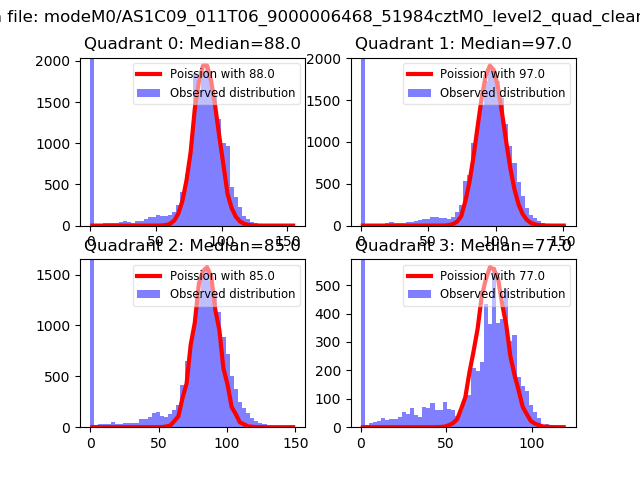

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

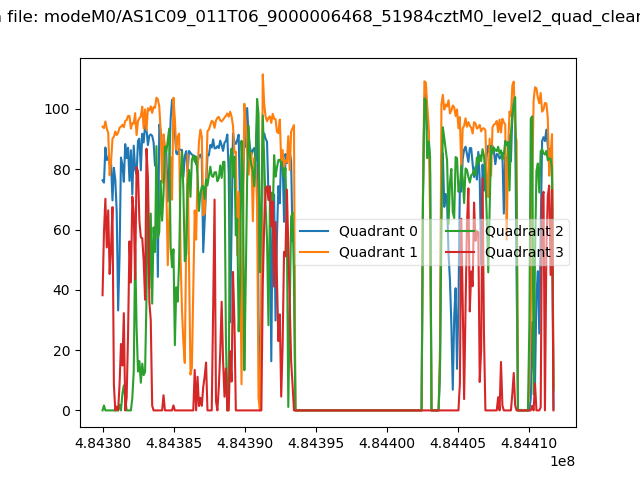

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

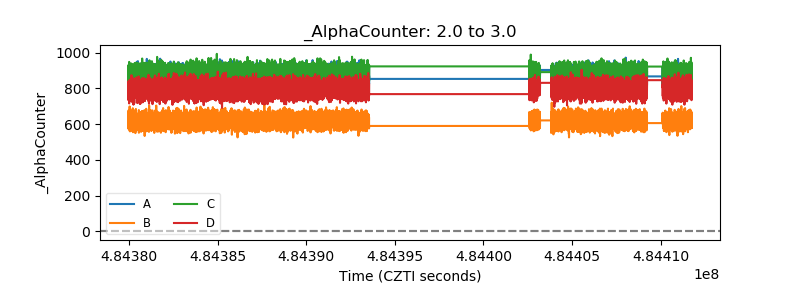

| Alpha Counter |  |

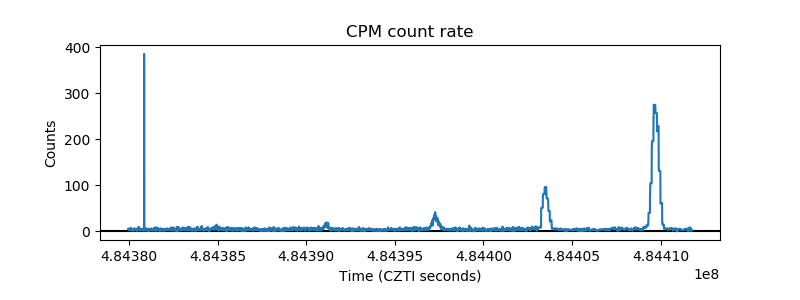

| _CPM_Rate |  |
| CZT Counter |  |

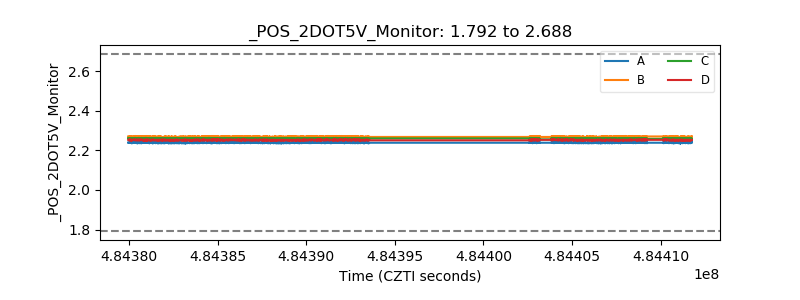

| +2.5 Volts monitor |  |

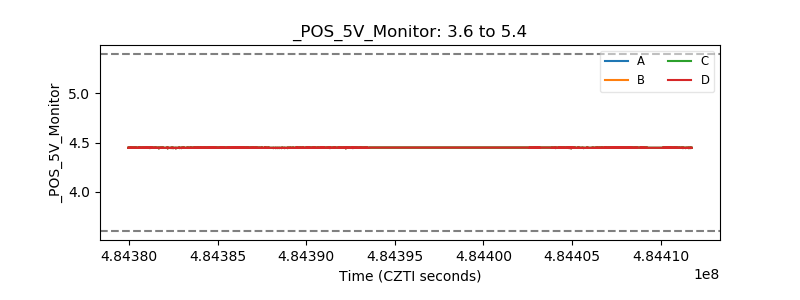

| +5 Volts monitor |  |

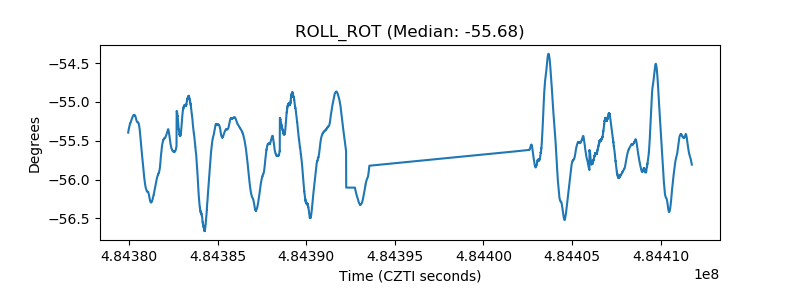

| _ROLL_ROT |  |

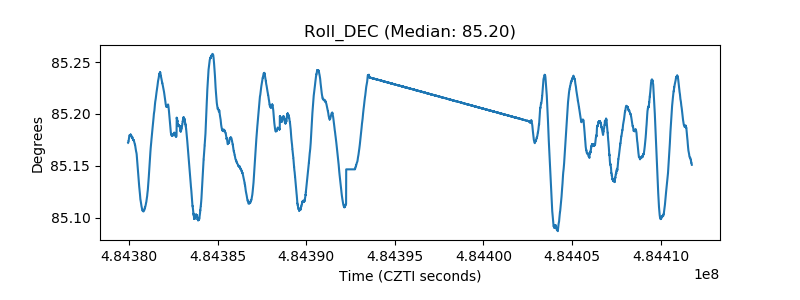

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
