| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006472_52250cztM0_level2.fits | modeM0/AS1C09_011T08_9000006472_52250cztM0_level2_quad_clean.evt |
| Size (bytes) | 706,947,840 | 84,879,360 |
| Size | 674.2 MB | 80.9 MB |
| Events in quadrant A | 3,705,328 | 612,834 |
| Events in quadrant B | 4,249,062 | 644,827 |
| Events in quadrant C | 8,025,420 | 481,494 |
| Events in quadrant D | 9,703,204 | 392,125 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15338 | 1 |
| B | 0 | 16935 | 1 |
| C | 0 | 28191 | 1 |
| D | 0 | 33139 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6279 | 171 | 2.723364% |
| B | 6280 | 283 | 4.506369% |
| C | 6280 | 1479 | 23.550955% |
| D | 6280 | 2076 | 33.057325% |

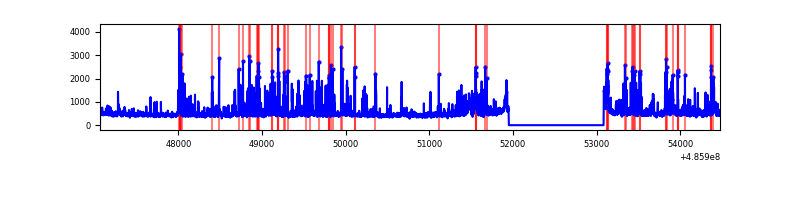

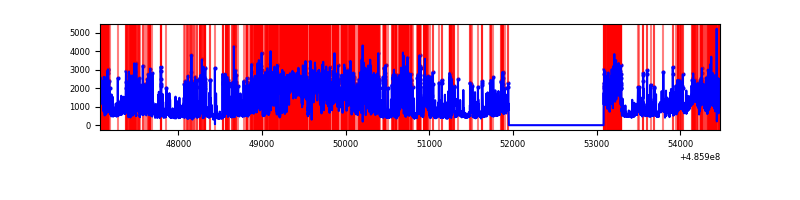

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

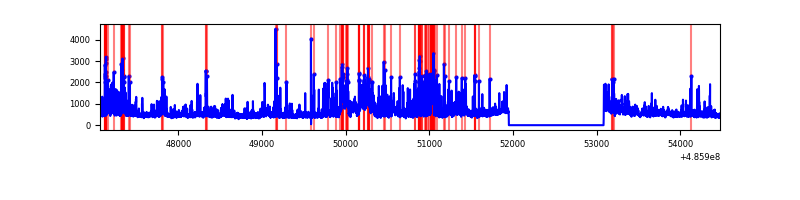

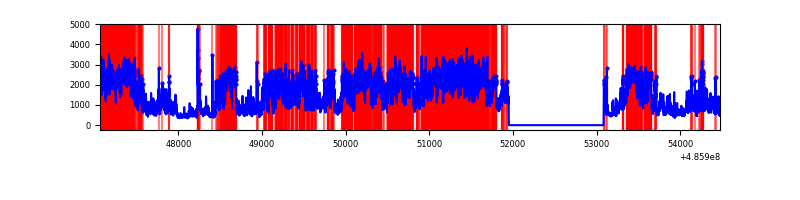

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7414 | 6280 | 67 | 67 | 0.90% | 1.07% |  |
| B | 7415 | 6281 | 133 | 133 | 1.79% | 2.12% |  |
| C | 7415 | 6281 | 1299 | 1299 | 17.52% | 20.68% |  |
| D | 7415 | 6281 | 2102 | 2102 | 28.35% | 33.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 79 | 328542 | 1973.84 | 667 | 651 | 166.1 |
| A | 11 | 3 | 206360 | 1238.33 | 667 | 651 | 166.1 |
| A | 5 | 240 | 164633 | 987.14 | 667 | 651 | 166.1 |
| B | 5 | 32 | 283834 | 2046.37 | 653 | 631 | 138.4 |
| B | 4 | 81 | 261064 | 1881.84 | 653 | 631 | 138.4 |
| B | 12 | 32 | 216686 | 1561.17 | 653 | 631 | 138.4 |
| C | 15 | 224 | 3431757 | 21242.51 | 585 | 578 | 161.5 |
| C | 9 | 38 | 887305 | 5489.74 | 585 | 578 | 161.5 |
| C | 15 | 189 | 331337 | 2047.73 | 585 | 578 | 161.5 |
| D | 6 | 42 | 5844262 | 36600.39 | 560 | 535 | 159.7 |
| D | 8 | 176 | 988202 | 6185.95 | 560 | 535 | 159.7 |
| D | 10 | 181 | 123341 | 769.16 | 560 | 535 | 159.7 |

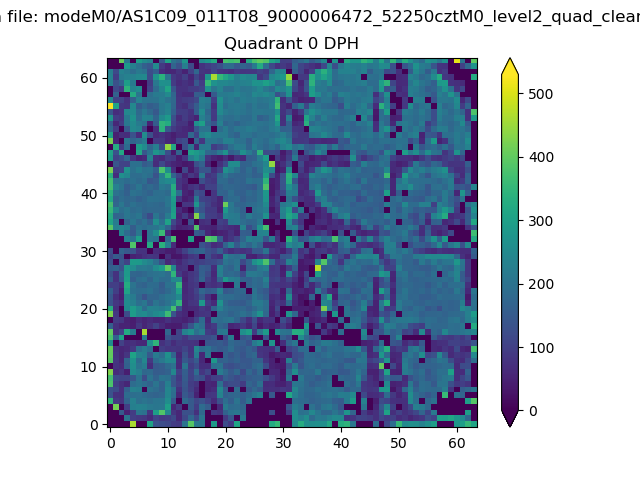

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

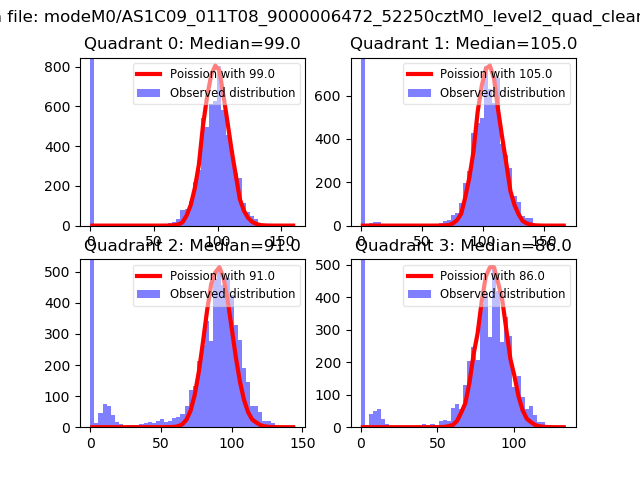

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

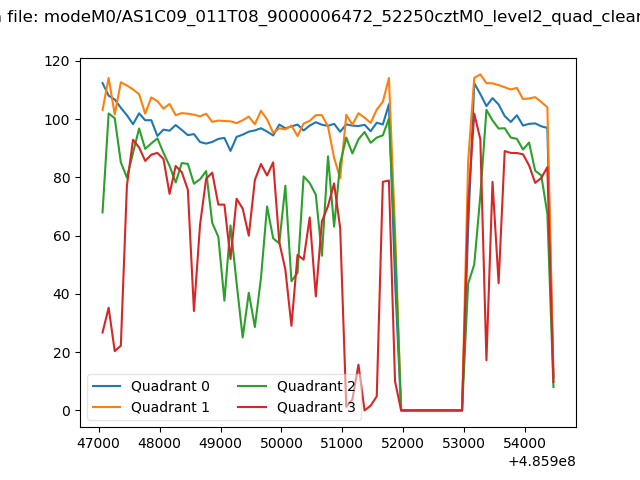

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

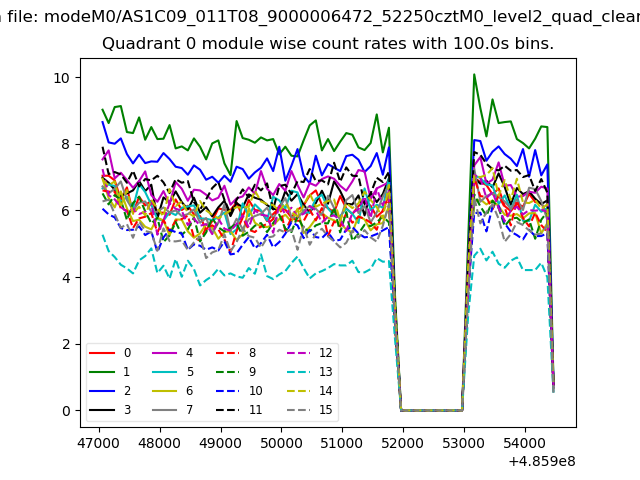

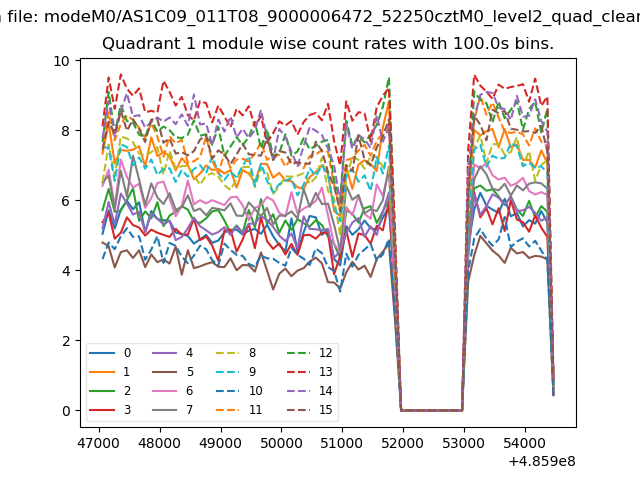

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

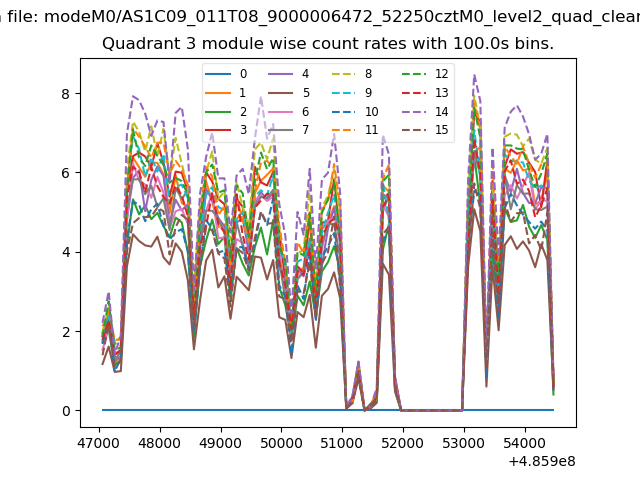

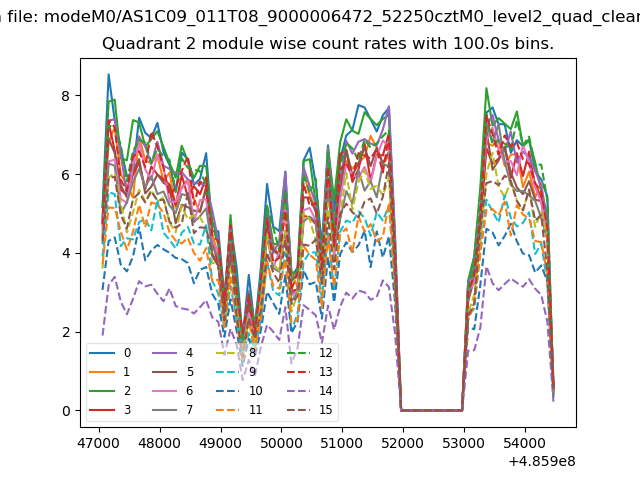

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

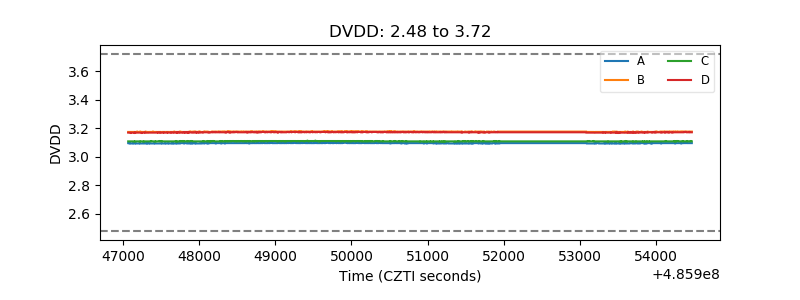

| D_VDD |  |

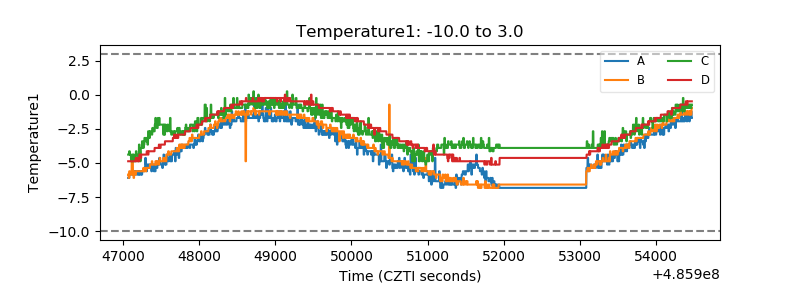

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

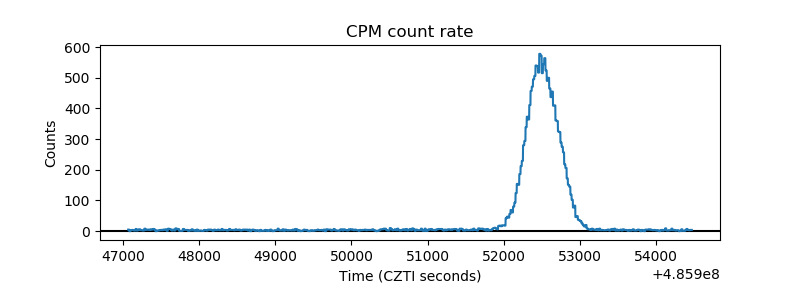

| _CPM_Rate |  |

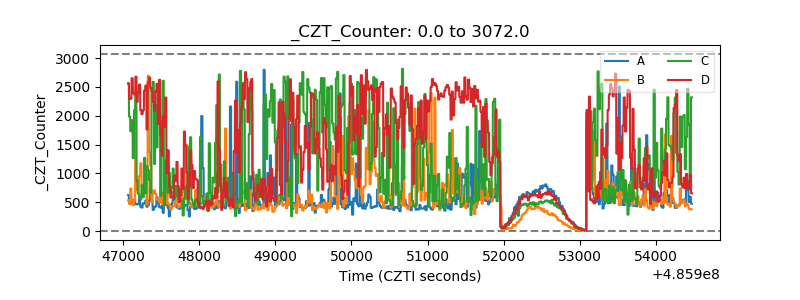

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

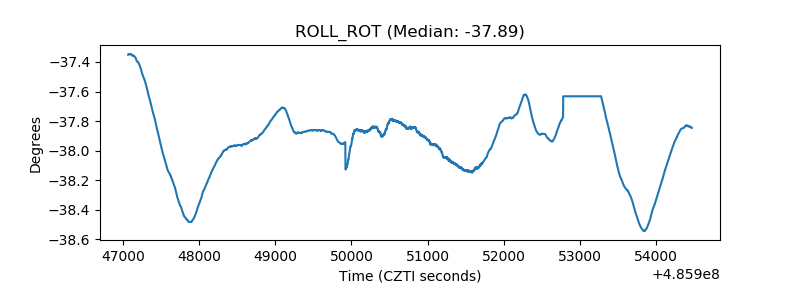

| _ROLL_ROT |  |

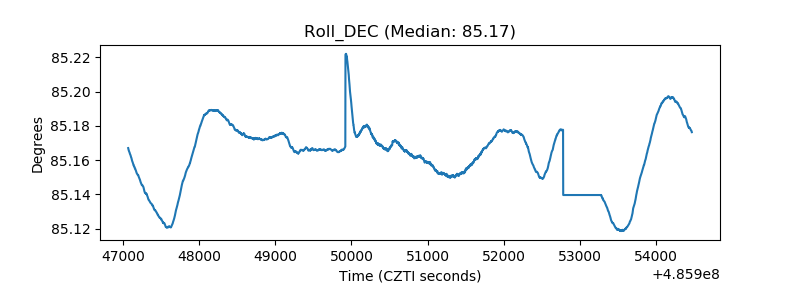

| _Roll_DEC |  |

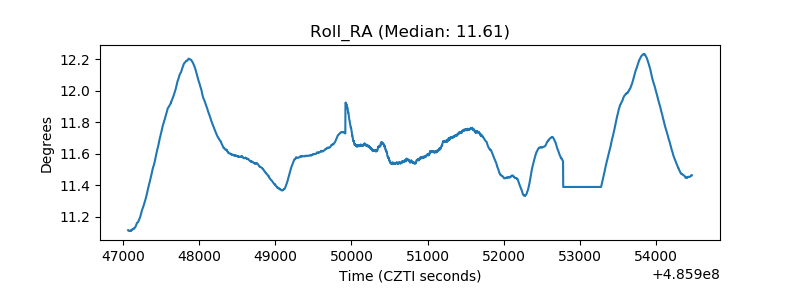

| _Roll_RA |  |

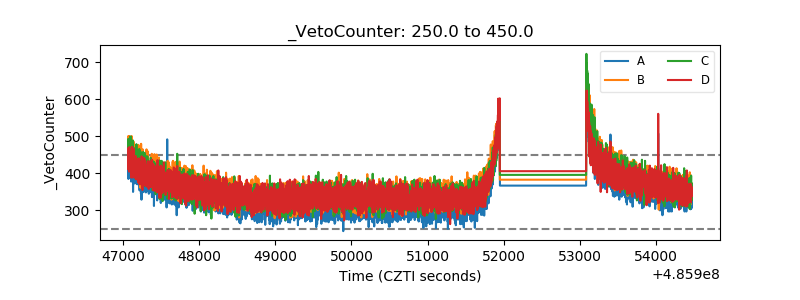

| Veto Counter |  |
