| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T05_9000006474_52260cztM0_level2.fits | modeM0/AS1C09_011T05_9000006474_52260cztM0_level2_quad_clean.evt |
| Size (bytes) | 255,070,080 | 18,368,640 |
| Size | 243.3 MB | 17.5 MB |
| Events in quadrant A | 1,026,970 | 159,029 |
| Events in quadrant B | 2,618,240 | 116,671 |
| Events in quadrant C | 3,941,711 | 16,126 |
| Events in quadrant D | 1,722,618 | 140,486 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4253 | 1 |
| B | 0 | 8953 | 1 |
| C | 0 | 12822 | 1 |
| D | 0 | 6303 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1679 | 43 | 2.561048% |
| B | 1679 | 667 | 39.726027% |
| C | 1679 | 1553 | 92.495533% |
| D | 1679 | 135 | 8.040500% |

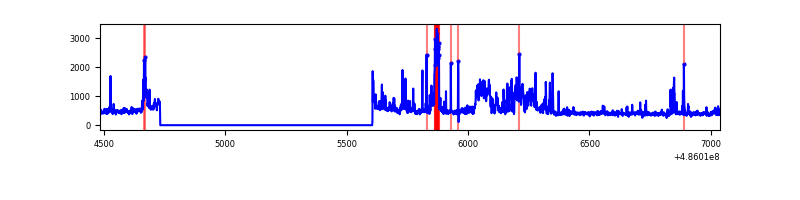

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2554 | 1680 | 25 | 25 | 0.98% | 1.49% |  |
| B | 2554 | 1678 | 409 | 409 | 16.01% | 24.37% |  |
| C | 2553 | 1678 | 1337 | 1337 | 52.37% | 79.68% |  |
| D | 2554 | 1680 | 132 | 132 | 5.17% | 7.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 146252 | 3136.05 | 180 | 174 | 46.6 |
| A | 15 | 174 | 58159 | 1244.84 | 180 | 174 | 46.6 |
| A | 5 | 240 | 20304 | 432.15 | 180 | 174 | 46.6 |
| B | 10 | 254 | 867377 | 24256.69 | 156 | 151 | 35.8 |
| B | 12 | 32 | 657184 | 18377.5 | 156 | 151 | 35.8 |
| B | 7 | 0 | 162492 | 4540.75 | 156 | 151 | 35.8 |
| C | 15 | 158 | 2502836 | 97510.57 | 88 | 87 | 25.7 |
| C | 15 | 224 | 492349 | 19179.21 | 88 | 87 | 25.7 |
| C | 15 | 178 | 297340 | 11581.39 | 88 | 87 | 25.7 |
| D | 6 | 42 | 585299 | 11612.6 | 169 | 161 | 50.4 |
| D | 8 | 176 | 209779 | 4160.06 | 169 | 161 | 50.4 |
| D | 7 | 96 | 95080 | 1883.75 | 169 | 161 | 50.4 |

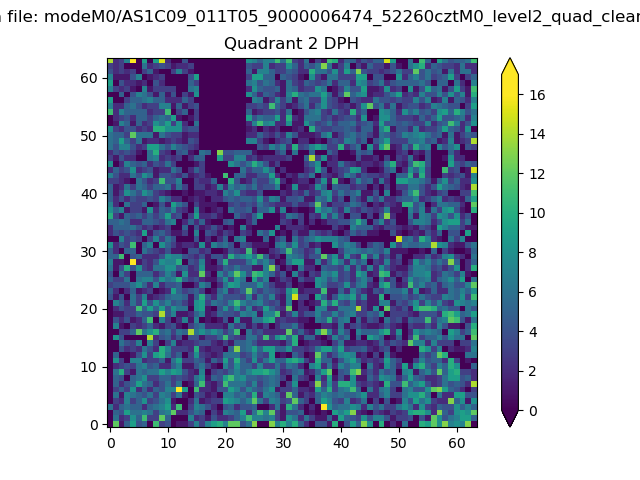

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

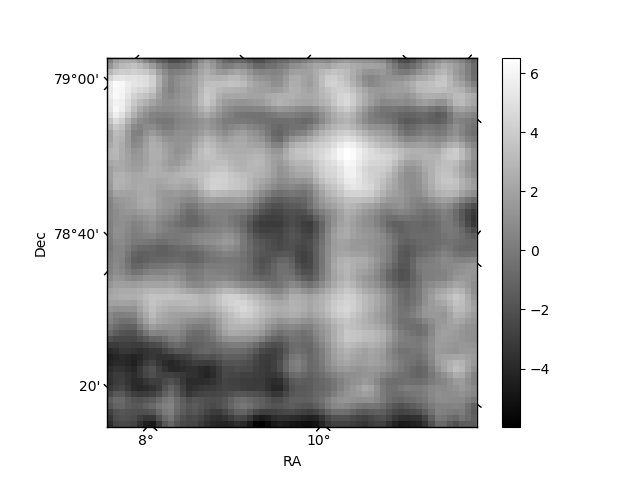

| Plot type | Count rate plots | Images |
|---|---|---|

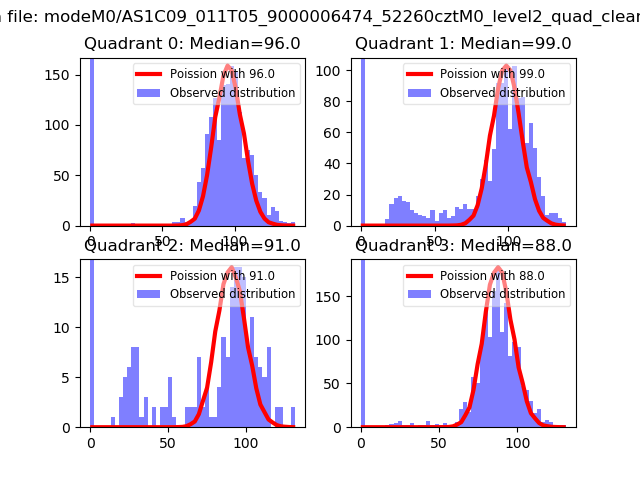

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

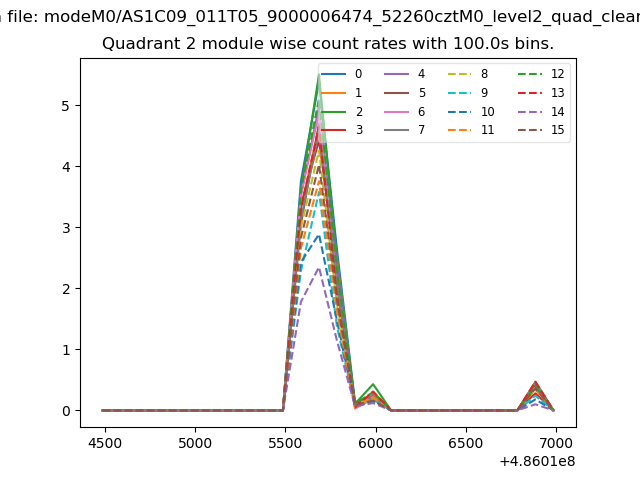

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

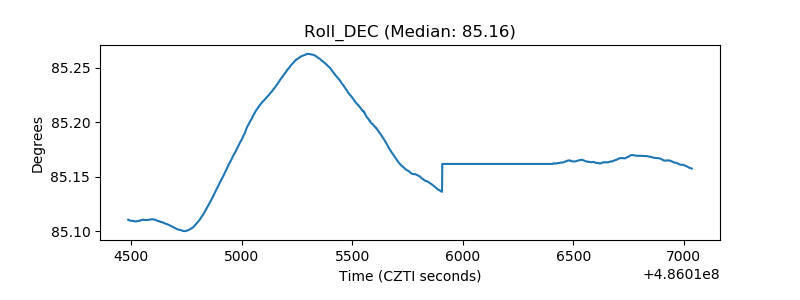

| _Roll_DEC |  |

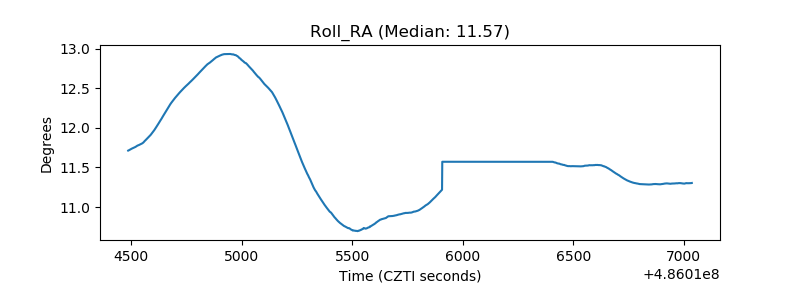

| _Roll_RA |  |

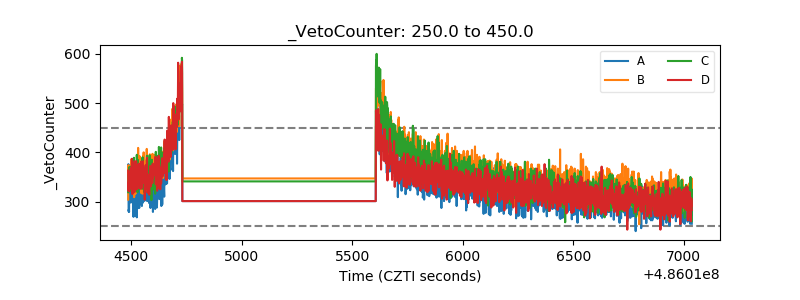

| Veto Counter |  |
