| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T05_9000006474_52280cztM0_level2.fits | modeM0/AS1C09_011T05_9000006474_52280cztM0_level2_quad_clean.evt |
| Size (bytes) | 728,386,560 | 71,130,240 |
| Size | 694.6 MB | 67.8 MB |
| Events in quadrant A | 3,800,838 | 559,157 |
| Events in quadrant B | 5,397,935 | 600,689 |
| Events in quadrant C | 12,800,329 | 50,963 |
| Events in quadrant D | 4,486,607 | 514,571 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15489 | 1 |
| B | 0 | 20236 | 1 |
| C | 0 | 42212 | 1 |
| D | 0 | 17554 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6129 | 398 | 6.493718% |
| B | 6129 | 482 | 7.864252% |
| C | 6129 | 5666 | 92.445750% |
| D | 6129 | 254 | 4.144232% |

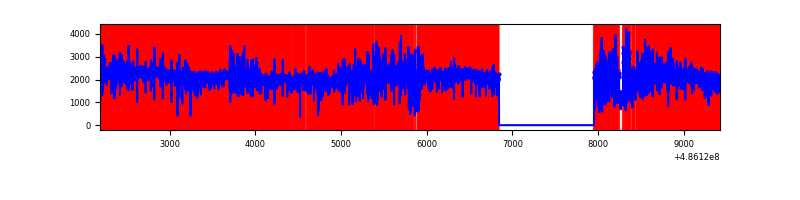

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7239 | 6130 | 278 | 278 | 3.84% | 4.54% |  |
| B | 7239 | 6130 | 336 | 336 | 4.64% | 5.48% |  |
| C | 7238 | 6128 | 4200 | 4200 | 58.03% | 68.54% |  |
| D | 7239 | 6130 | 192 | 192 | 2.65% | 3.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 162 | 771667 | 4941.18 | 625 | 611 | 156.0 |
| A | 4 | 249 | 91424 | 581.96 | 625 | 611 | 156.0 |
| A | 4 | 3 | 79144 | 503.27 | 625 | 611 | 156.0 |
| B | 7 | 0 | 973348 | 7411.88 | 620 | 601 | 131.2 |
| B | 0 | 213 | 384171 | 2922.63 | 620 | 601 | 131.2 |
| B | 4 | 171 | 302308 | 2298.87 | 620 | 601 | 131.2 |
| C | 15 | 158 | 7000800 | 102080.13 | 246 | 244 | 68.6 |
| C | 15 | 224 | 1409539 | 20549.94 | 246 | 244 | 68.6 |
| C | 0 | 161 | 1188025 | 17319.89 | 246 | 244 | 68.6 |
| D | 15 | 93 | 947592 | 5486.05 | 608 | 582 | 172.6 |
| D | 12 | 18 | 197043 | 1138.1 | 608 | 582 | 172.6 |
| D | 9 | 49 | 120769 | 696.25 | 608 | 582 | 172.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

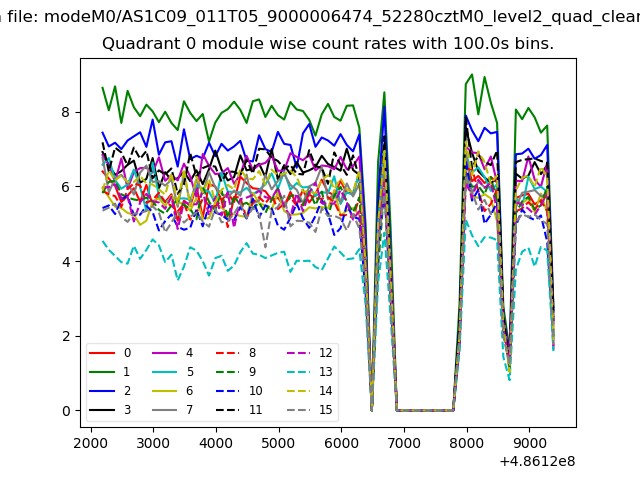

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

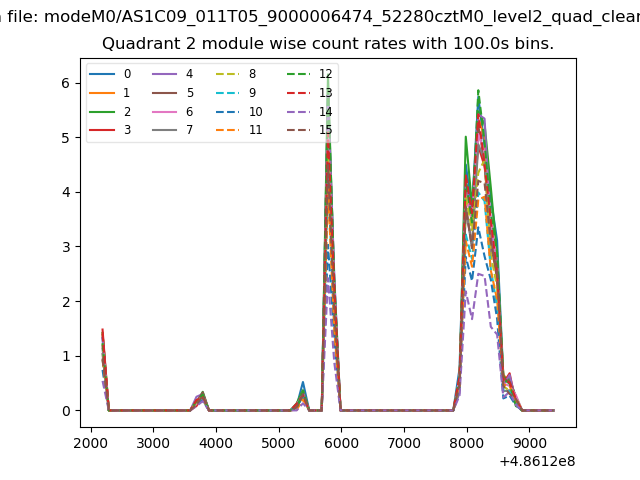

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

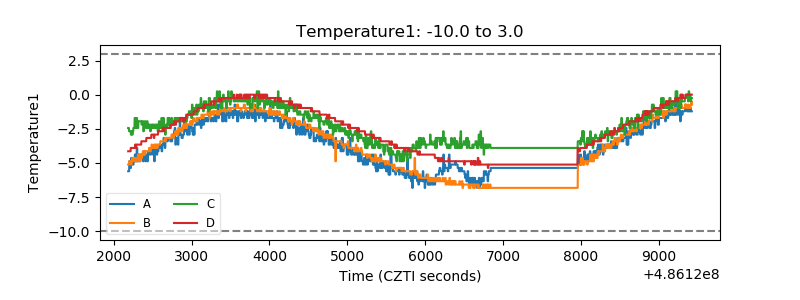

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

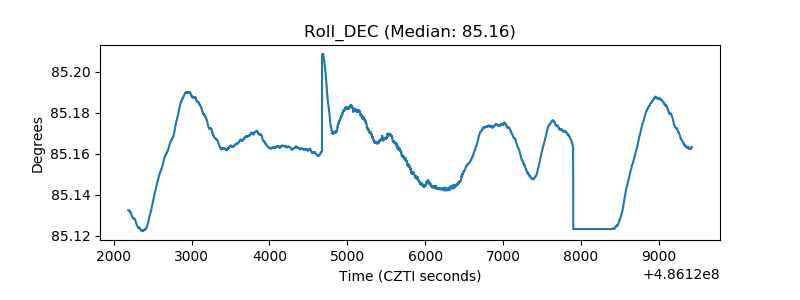

| _Roll_DEC |  |

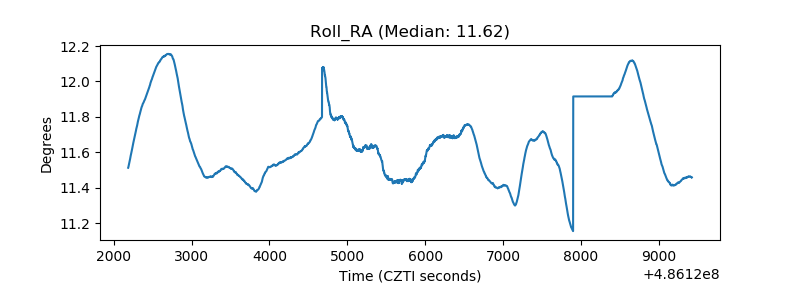

| _Roll_RA |  |
| Veto Counter |  |
