| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T05_9000006474_52294cztM0_level2.fits | modeM0/AS1C09_011T05_9000006474_52294cztM0_level2_quad_clean.evt |
| Size (bytes) | 816,569,280 | 71,017,920 |
| Size | 778.7 MB | 67.7 MB |
| Events in quadrant A | 3,557,393 | 613,972 |
| Events in quadrant B | 4,153,444 | 608,091 |
| Events in quadrant C | 12,176,995 | 159,644 |
| Events in quadrant D | 9,871,386 | 347,221 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14790 | 1 |
| B | 0 | 16417 | 1 |
| C | 0 | 40302 | 9 |
| D | 0 | 33489 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6032 | 178 | 2.950928% |
| B | 6032 | 467 | 7.742042% |
| C | 6031 | 4577 | 75.891229% |
| D | 6031 | 2505 | 41.535400% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

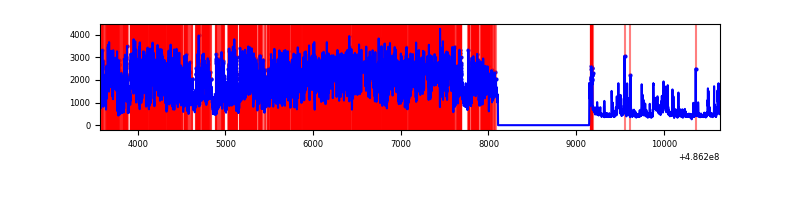

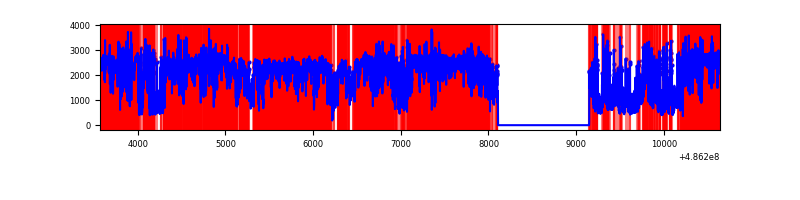

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7072 | 6032 | 58 | 58 | 0.82% | 0.96% |  |
| B | 7072 | 6032 | 294 | 294 | 4.16% | 4.87% |  |
| C | 7070 | 6030 | 3702 | 3702 | 52.36% | 61.39% |  |
| D | 7071 | 6031 | 2290 | 2290 | 32.39% | 37.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 316011 | 1895.08 | 655 | 641 | 166.4 |
| A | 4 | 249 | 122379 | 731.53 | 655 | 641 | 166.4 |
| A | 13 | 248 | 103354 | 617.21 | 655 | 641 | 166.4 |
| B | 10 | 44 | 403074 | 3059.31 | 621 | 602 | 131.6 |
| B | 5 | 32 | 307326 | 2331.5 | 621 | 602 | 131.6 |
| B | 4 | 171 | 206791 | 1567.3 | 621 | 602 | 131.6 |
| C | 15 | 178 | 4052760 | 47001.24 | 303 | 300 | 86.2 |
| C | 0 | 161 | 3419614 | 39657.89 | 303 | 300 | 86.2 |
| C | 15 | 158 | 785050 | 9101.69 | 303 | 300 | 86.2 |
| D | 15 | 93 | 6321278 | 40285.2 | 536 | 513 | 156.9 |
| D | 8 | 176 | 519579 | 3308.25 | 536 | 513 | 156.9 |
| D | 7 | 96 | 152691 | 969.9 | 536 | 513 | 156.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

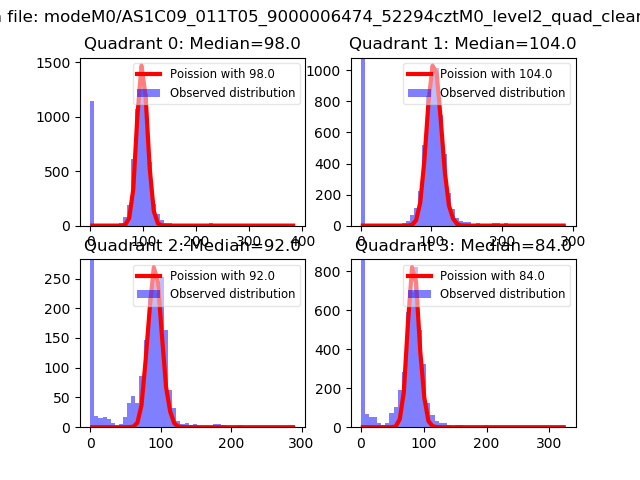

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

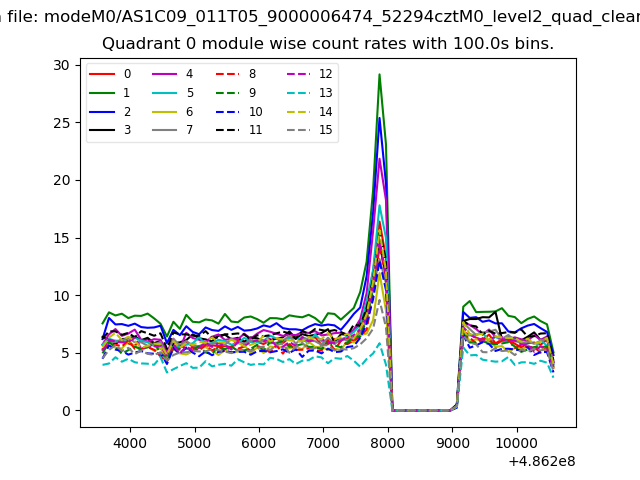

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

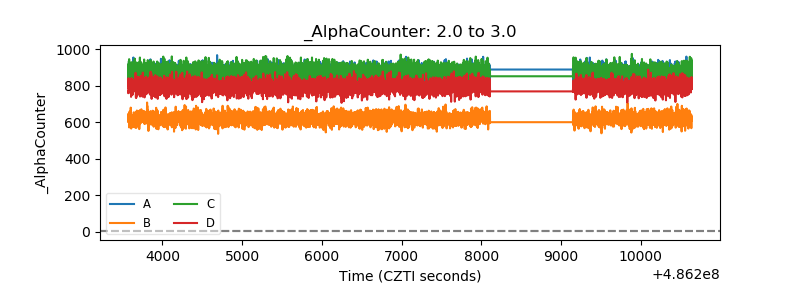

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

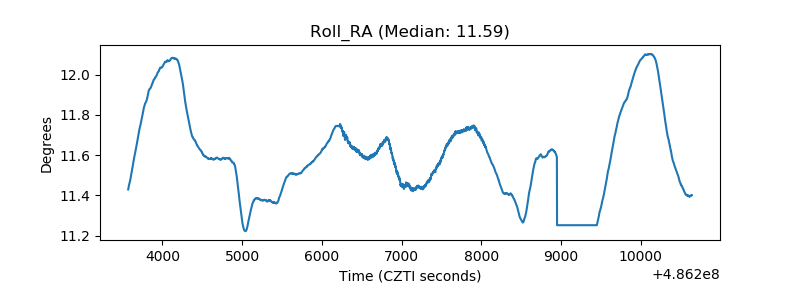

| _Roll_RA |  |

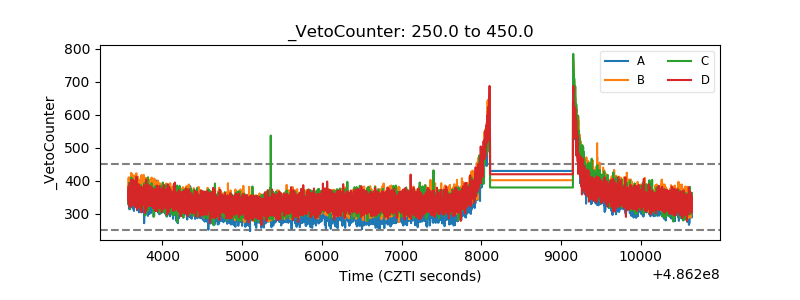

| Veto Counter |  |
