| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478cztM0_level2_quad_clean.evt |
| Size (bytes) | 5,050,212,480 | 2,887,430,400 |
| Size | 4.7 GB | 2.7 GB |
| Events in quadrant A | 31,702,554 | 12,434,186 |
| Events in quadrant B | 28,370,312 | 11,878,769 |
| Events in quadrant C | 24,997,242 | 8,977,285 |
| Events in quadrant D | 21,531,562 | 8,030,205 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1597697 | 0 |
| B | 0 | 2398812 | 0 |
| C | 0 | 3007587 | 0 |
| D | 0 | 3468557 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 786 | 0 |
| B | 0 | 787 | 0 |
| C | 0 | 787 | 0 |
| D | 0 | 787 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13656 | 0 |
| B | 0 | 13656 | 0 |
| C | 0 | 13656 | 0 |
| D | 0 | 13656 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 672951 | 19155 | 2.846418% |
| B | 672950 | 90710 | 13.479456% |
| C | 672943 | 195972 | 29.121634% |
| D | 672942 | 233321 | 34.671784% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 760264 | 672557 | 0 | 0 | 0.00% | 0.00% |  |
| B | 760264 | 671093 | 0 | 0 | 0.00% | 0.00% |  |
| C | 760264 | 642405 | 0 | 0 | 0.00% | 0.00% |  |
| D | 760262 | 660920 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 188 | 36491 | 10.37 | 8424 | 7835 | 2764.1 |
| A | 9 | 255 | 33325 | 9.22 | 8424 | 7835 | 2764.1 |
| A | 14 | 204 | 29330 | 7.78 | 8424 | 7835 | 2764.1 |
| B | 9 | 173 | 23643 | 9.2 | 7601 | 7221 | 1784.2 |
| B | 2 | 245 | 23105 | 8.9 | 7601 | 7221 | 1784.2 |
| B | 3 | 25 | 22709 | 8.68 | 7601 | 7221 | 1784.2 |
| C | 7 | 221 | 20144 | 6.16 | 6736 | 6171 | 2269.6 |
| C | 2 | 31 | 19921 | 6.06 | 6736 | 6171 | 2269.6 |
| C | 3 | 203 | 19500 | 5.87 | 6736 | 6171 | 2269.6 |
| D | 6 | 218 | 28690 | 11.08 | 6213 | 5508 | 2091.3 |
| D | 15 | 11 | 22647 | 8.2 | 6213 | 5508 | 2091.3 |
| D | 3 | 30 | 19879 | 6.87 | 6213 | 5508 | 2091.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

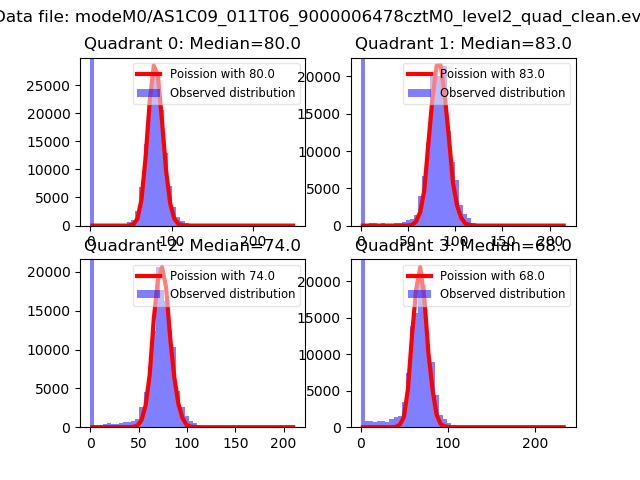

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

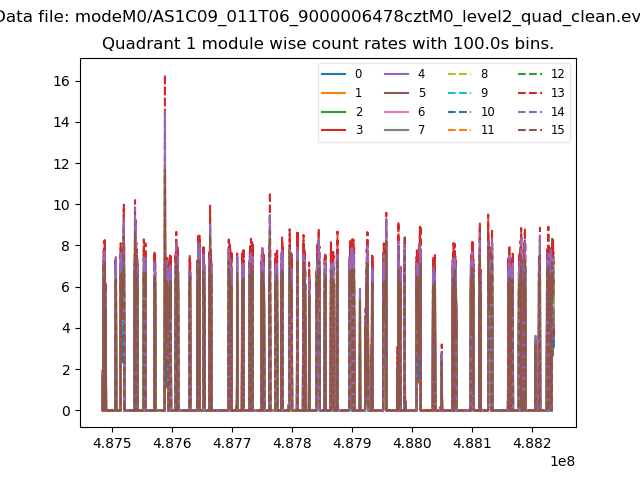

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

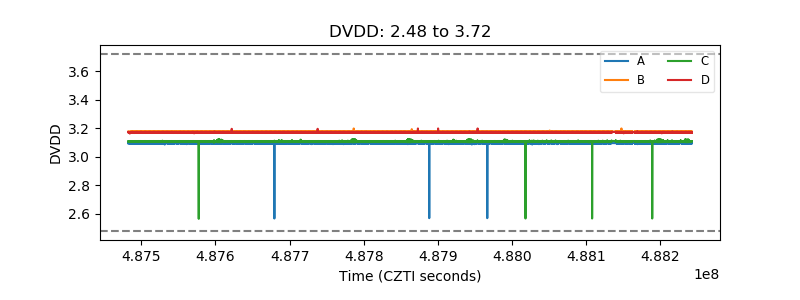

| D_VDD |  |
| Temperature 1 |  |

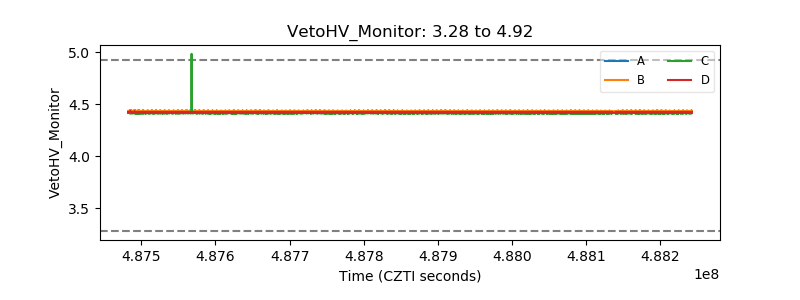

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

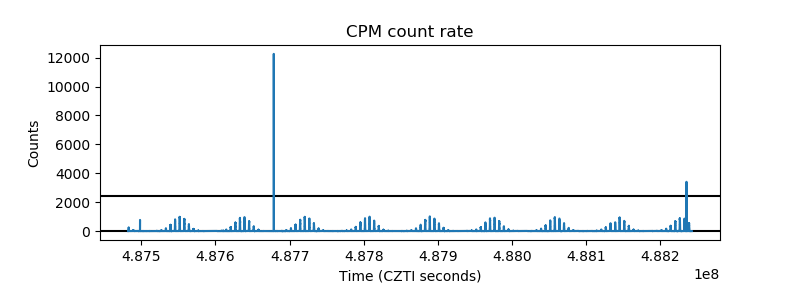

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

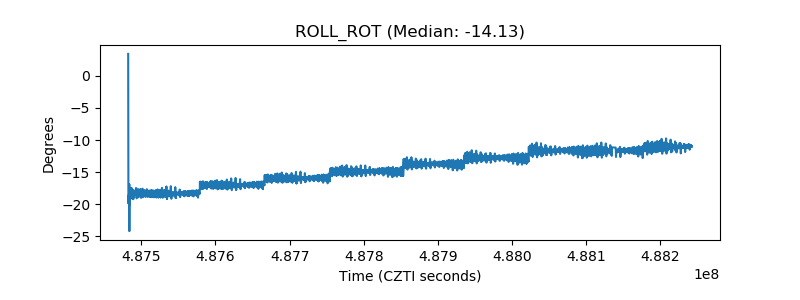

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
